dbx Pro 386 Dual Vacuum Tube Preamp with Digital Out Microphone Preamp

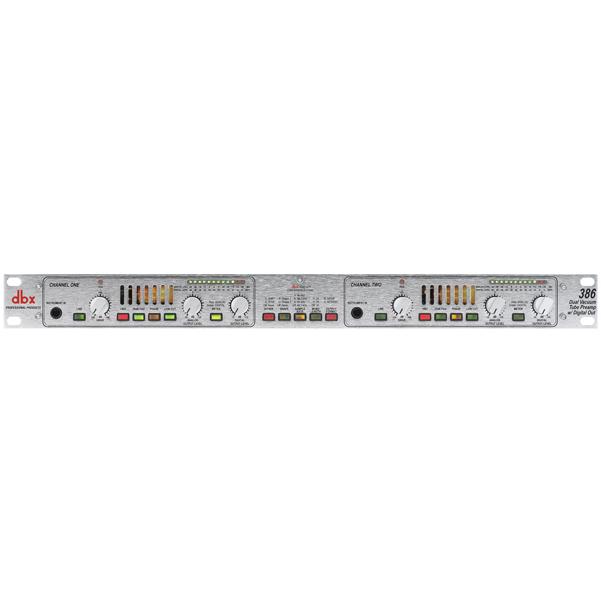

dbx Pro 386 Dual Vacuum Tube Preamp with Digital Out Microphone Preamp Overview: The Silver Series 386 dual channel tube mic preamp puts the best of both worlds into one affordable package by combining the warmth of the irreplaceable vacuum tube with the proprietary dbx Type IV conversion system The 386 boasts many of the same features as other products in the Silver Series, such as +48V phantom power, a phase invert switch, and low cut filtering; but also includes digital outputs in both AES/EBU, and S/PDIF formats.

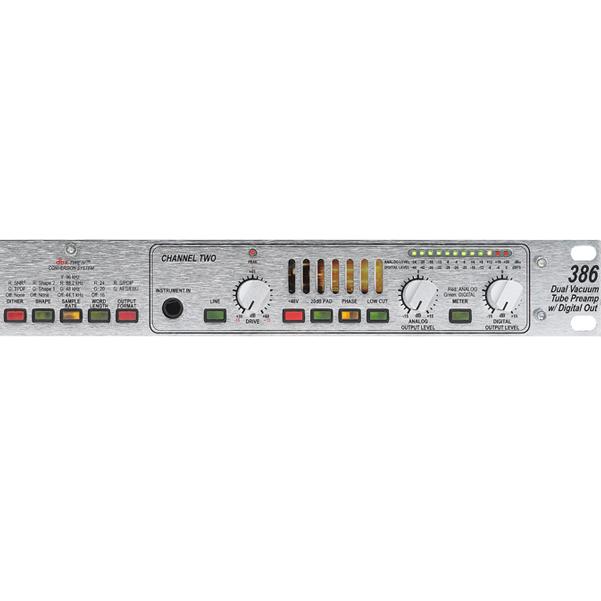

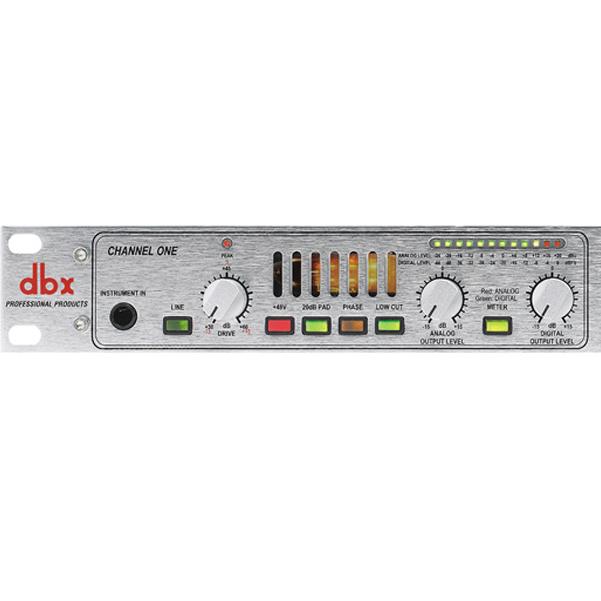

The high impedance, 1/4" instrument input located on the front panel, as well as the mic/line switch, and 20 dB pad show our dedication to providing convenience in the studio The 12 segment LED meters provide a visual indication of analog or digital levels at a glance.

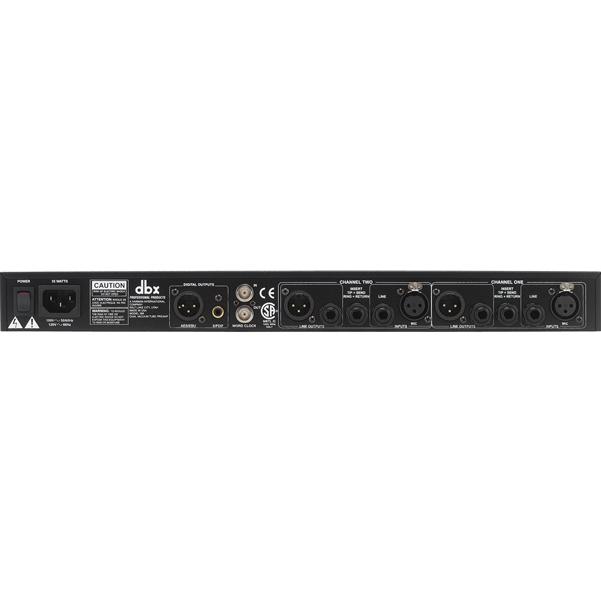

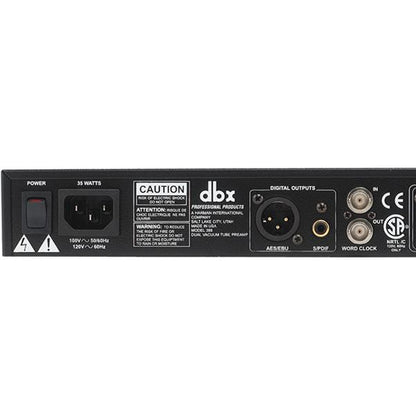

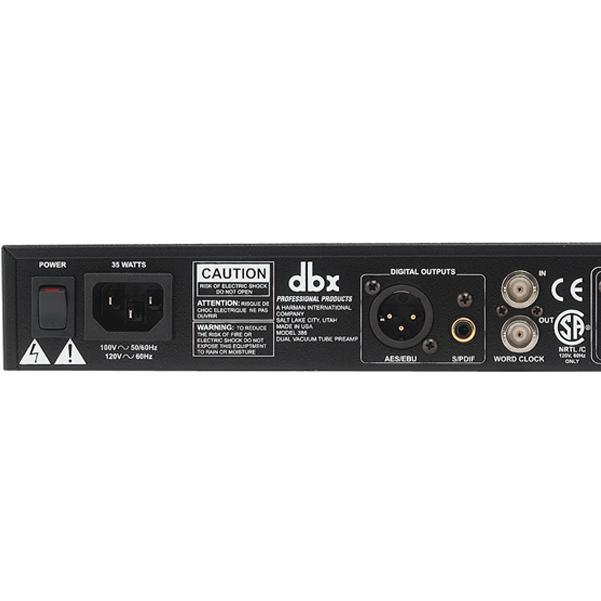

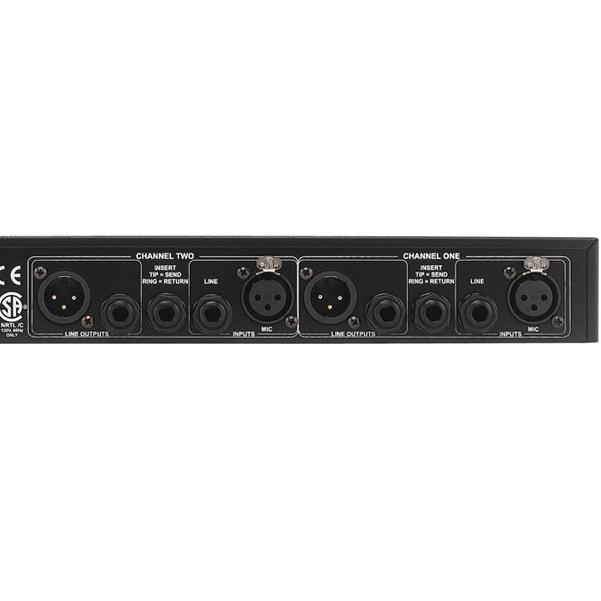

The rear panel includes both mic and line inputs and outputs, word clock sync input and output, and digital outputs Add selectable sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, or 96 kHz; selectable dithering and noise shaping; and separate analog and digital output controls to this already impressive list of features, and we think you’ll agree that the 386 lives up to the innovative dbx standards.

Features: Two channel tube microphone preamplifier Selectable 96kHz, 88.2kHz, 48kHz, or 44.1kHz sampling rate 24, 20, and 16-bit wordlengths Selectable dither and noise shaping AES/EBU and S/PDIF digital outputs Word clock sync input and output Separate analog and digital output control Type IV™ conversion system 60dB of gain and +/- 15dB of output gain Selectable mic/line switch 48 volt phantom power 20dB pad 75Hz low cut filter Phase reverse Segment LED analog/digital Specifications: Mic Preamp Connector: Female XLR Pin 2 Hot; Electronically balanced/unbalanced Mic Preamp Input Impedance: 330Ω Mic Preamp max input level: -9 dBu or +11 dBu with 20 dB pad engaged CMRR: >40dB, Typically 55dB Mic Preamp Equivalent Input Noise (EIN): Typically -120 dBu with a 150Ω source load, 20Hz to 20kHz BW Input Connectors: (instrument/line) 1/4" Jack Input Type: (line) Electronically balanced/unbalanced; (instrument) Unbalanced Max Input: (instrument/line) +21dBu balanced or unbalanced Gain Adjustment Range: (drive control) Line/Instrument: -15dB to +15dB; Mic: +30dB to +60dB Output Connectors: Male XLR Pin 2 Hot and TRS 1/4" Output Type: Servo-balanced/unbalanced Output Impedance: Balanced 120Ω, unbalanced 60Ω Max Output: >+21 dBu, >+20 dBm (into a 600Ω load) Digital Output Connector: XLR for AES/EBU, RCA for S/PDIF Digital Output Impedance: 110Ω for AES/EBU, 75Ω for S/PDIF Word Sync I/O Connectors: BNC Word Sync Input Impedance: 75Ω terminated by internal jumper Word Sync Input: 96, 88.2, 48, or 44.1kHz word clock Word Sync Output: 96, 88.2, 48, or 44.1kHz word clock Output Level: -15dB to +15dB Line Switch: Selects between microphone and line inputs Mic Preamp Phantom Power: +48V Pad Switch: 20dB pad Phase Invert Switch: Reverses pins 2 and 3 of the microphone input XLR Low cut Switch: 75Hz, 12dB/octave high pass filter Frequency Response: (analog) <10Hz to 75kHz THD+Noise: 0.35% typical at +4dBu out, 1kHz, 40 dB gain Interchannel Crosstalk: Typically –80dB, 20Hz to 20kHz A/D Converter: dbx Type IV A/D Conversion System Sample Rate: 96, 88.2, 48, or 44.1kHz selectable Wordlength: 24, 20, or 16 bit selectable Dither Type: TPDF, SNR2, or none Noise Shape: Shape 1, Shape 2, or none Digital Output: S/PDIF or AES/EBU Digital Output Dynamic Range: 107dB typical, A-weighted, 22kHz bandwidth Operating Voltage: DO: 120VAC 60Hz, 100VAC 50/60Hz; EU: 230VAC 50/60Hz Power Consumption: 35W Dimensions: 1.75'' x 7.75'' x 19'' (4.5cm x 19.7cm x 48.5cm) Weight: 6.89 lbs (3.17kg) Reference: 0dBu = -16dFS, 0dBu-0.775Vms.
