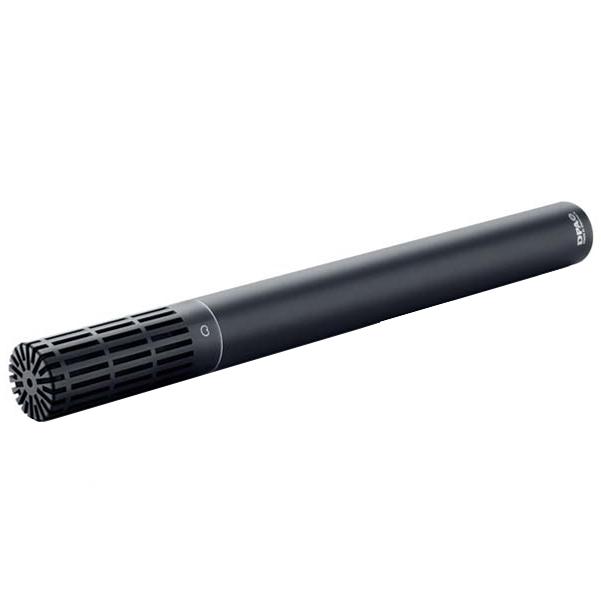

DPA d:dicate 2011A Twin Diaphragm Cardioid Condenser Microphone

DPA d:dicate 2011A Twin Diaphragm Cardioid Condenser Microphone Overview: The d:dicate 2011A Twin Diaphragm Cardioid Microphone is acclaimed for its close-miking excellence and hi-SPL handling Optimized for onstage use, it has been used on many stages as well as recording sessions.

It exhibits a previously unheard blend of clarity, richness and dynamic range The off-axis response is linear but in a smaller frequency bandwidth.

This makes stage separation and gain-to-feedback higher The mic level is easier to control.

The microphone capsule Inside this capsule, two opposite-facing miniature capsules are custom rebuilt They are placed into a double-diaphragm, one-capsule composition.

This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area These capsules provide fast impulse response and large frequency bandwidth.

The capsules are loaded to the supreme d:dicate Microphone series preamplifiers instead of the tiny miniature FET ones This gives the sound more air and precision.

Comparisons with its big brother, the iconic MMC4011 capsule, are inevitable The relationship between the two can be clearly heard.

The MMC2000 series performs as well as more exclusive microphones It is a premium-class mic capsule and redefines the term value for money.

A truly flexible range The d:dicate 2011A Twin Diaphragm Cardioid Microphone is part of the flexible d:dicate Microphones Series It combines the MMC2011 Twin Diaphragm Cardioid Capsule with the MMP-A preamplifier.

This combination is for the true audiophile It offers low distortion and totally accurate and faithful sound.

Another option, the d:dicate 2011C Twin Diaphragm Cardioid Microphone, Compact offers a subtle character alteration with a bit more “body” to the low end than the d:dicate 2011A Twin Diaphragm Cardioid Microphone At any time, and with no tools needed, it is possible to transform the d:dicate 2011A Twin Diaphragm Cardioid Microphone into a new configuration.

You can combine it with another d:dicate or d:facto Microphone Capsule or Preamplifier Features: Blends clarity, richness and dynamics Twin diaphragm capsule and interference tube technologies Superb stage separation and level control Modular flexibility Specifications: Directional pattern: Cardioid Principle of operation: Pressure gradient, with interference tube Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule Frequency range: 20 Hz - 20 kHz Frequency range, ±2 dB, at 30 cm (11.8 in): 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re.

1 V/Pa Equivalent noise level, A-weighted: Typ 20 dB(A) re.

20 µPa (max 23 dB(A)) Equivalent noise level, ITU-R BS.468-4: Typ.

33 dB (max 36 dB) S/N ratio (A-weighted), re.

1 kHz at 1 Pa (94 dB SPL): Typ 74 dB(A) Total harmonic distortion (THD): < 1% up to 137 dB SPL peak Dynamic range: Typ.

117 dB Max SPL, peak before clipping: 153 dB Switchable attenuator, filters etc.: 0 dB / -20 dB Output impedance: 200 Ω Minimum load impedance: 2 kΩ Cable drive capability: 100 m (328 ft) Output balance principle: Impedance balancing with Active Drive Common mode rejection ratio (CMRR): > 60 dB Power supply (for full performance): 48 V Phantom power (± 4 V) Current consumption: 2.8 mA Connector: XLR-3M.

Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase Color: Matte black Weight: 164 g (5.8 oz) Microphone diameter: 19 mm (0.75 in) Microphone length: 198 mm (7.8 in) Maximum output voltage, RMS: > 5 V Polarity: +V at pin 2 for positive sound pressure Temperature range: -40°C to 45°C (-40°F to 113°F) Relative humidity (RH): Up to 90%.
