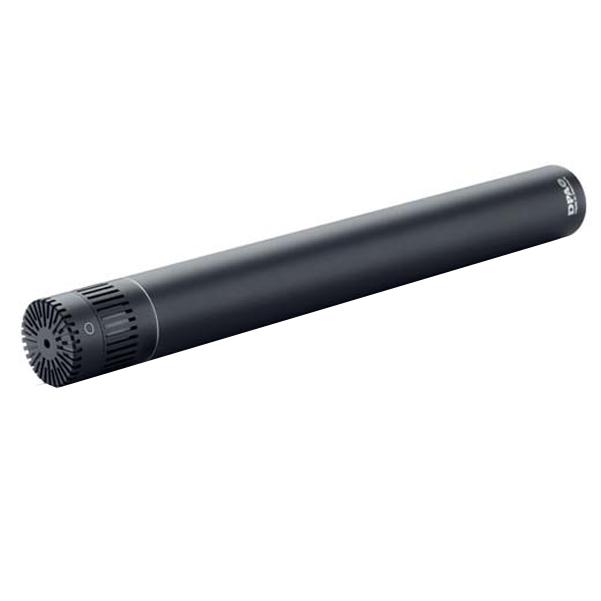

DPA d:dicate 4015A Wide Cardioid Condenser Microphone

DPA d:dicate 4015A Wide Cardioid Condenser Microphone Overview: The d:dicate 4015A Wide Cardioid Microphone even includes a 20 dB pad switch in the center of the XLR connector to prevent overloading of the mic amplifier The microphone capsule The off-axis characteristics of the MMC4015 Wide Cardioid Microphone Capsule are totally linear, a unique quality when it comes to authentic sound reproduction.

Any leakage that occurs from off-axis sound sources is still a faithful reproduction of these sounds, just softly attenuated Sometimes a conventional cardioid pattern just isn’t quite open enough.

Recording orchestras or other ensembles sometimes requires a compromise between blending in the room reverberation and a more precise localization When recording instruments with complex radiation patterns, the wide cardioid (also known as hemispheric) design covers a greater sound angle and is an excellent choice.

This is the often ideal mic for recording grand piano, guitar, marimba, and percussion, or as a spot mic for groups in a symphony orchestra Likewise, it is an excellent speech, dubbing, or vocal mic as its enhanced richness on the bass end nicely compliments many voices.

A truly flexible range This mic is part of the flexible d:dicate Microphone Series At any time, and with no tools needed, it is possible to transform the d:dicate 4015A Wide Cardioid Microphone into a new configuration.

You can combine it with another d:dicate or d:facto Microphone Capsule or Preamplifier The MMC4015 Wide Cardioid Microphone Capsule coupled with the MMP-A Preamplifier suits acoustic instruments and voices with rich and open sound.

For another option, match the MMC4015 Wide Cardioid Microphone Capsule with the MMP-C Compact Preamplifier for an excellent spot mic as a fill-in between an omni and a cardioid The compact version is easier to position than other cardioid microphones.

Features: Low profile – wide pickup area Natural reproduction Directional ambience pickup Exceptional for vocal Modular flexibility Specifications: Directional pattern: Wide cardioid Principle of operation: Pressure gradient Cartridge type: Pre-polarized condenser Frequency range: 20 Hz - 20 kHz Frequency range, ±2 dB, at 60 cm (23.6 in): 40 Hz - 20 kHz Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re 1 V/Pa Equivalent noise level, A-weighted: Typ.

18 dB(A) re 20 µPa (max.

20 dB(A)) Equivalent noise level, ITU-R BS.468-4: Typ 25 dB (correct with the attenuator in 0 dB or -20 dB setting) S/N ratio (A-weighted), re.

1 kHz at 1 Pa (94 dB SPL): Typ 76 dB(A) Total harmonic distortion (THD): < 1% up to 139 dB SPL peak Dynamic range: Typ.

121 dB Max SPL, peak before clipping: 159 dB Switchable attenuator, filters etc.: 0 dB / -20 dB Output impedance: 200 Ω Minimum load impedance: 2 kΩ Cable drive capability: 100 m (328 ft) Output balance principle: Impedance balancing with Active Drive Common mode rejection ratio (CMRR): > 60 dB Power supply (for full performance): 48 V Phantom power (± 4 V) Current consumption: 2.8 mA Connector: XLR-3M.

Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase Color: Matte black Weight: 158 g (5.6 oz) Microphone diameter: 19 mm (0.75 in) Capsule diameter: 19 mm (0.75 in) Microphone length: 170 mm (6.7 in) Maximum output voltage, RMS: > 5 V Polarity: +V at pin 2 for positive sound pressure Temperature range: -40°C to 45°C (-40°F to 113°F) Relative humidity (RH): Up to 90% Matching tolerance (frequency response and sensitivity): ±1 dB Phase deviation for kit: < 10°.
