DPA-ST2011C
Shipping Details
Out of stock
DPA d:dicate ST 2011C Stereo Pair Cardioid Condenser Microphone Set Overview: A complete stereo pair; two handpicked cardioid condenser microphones, selected on sensitivity within ±1.5 dB Makes several stereo principles like XY and ORTF easy to obtain.
The compact design and controlled directionality of these mics make them an excellent choice for spot mics for classical recording and on-stage close mics for live sound The foam design in the heavy-duty transportation box allows for fast and easy exchange of the microphone/accessory inlays.
These condenser microphones are acclaimed for its close-miking excellence and hi-SPL handling Optimized for onstage use, it has been used on many stages as well as recording sessions.
It exhibits a previously unheard blend of clarity, richness and dynamic range The off-axis response is linear but in a smaller frequency bandwidth.
This makes stage separation and gain-to-feedback higher The mic level is easier to control.
The mic capsule Inside this capsule, two opposite-facing miniature capsules are custom rebuilt They are placed into a double-diaphragm, one-capsule composition.
This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area These capsules provide fast impulse response and large frequency bandwidth.
The capsules are loaded to the supreme d:dicate Microphone series preamplifiers instead of the tiny miniature FET ones This gives the sound more air and precision.
A truly flexible range The d:dicate 2011C Twin Diaphragm Cardioid Microphone, Compact is part of the flexible d:dicate Microphones Series It combines the MMC2011 Twin Diaphragm Cardioid Capsule with the MMP-C compact preamplifier.
This combination offers a subtle character alteration with a bit more “body” to the low end than the d:dicate 2011A Twin Diaphragm Cardioid Microphone It is also much easier to position than other cardioid mics.
At any time, and with no tools needed, it is possible to transform the d:dicate 2011C Twin Diaphragm Cardioid Microphone, Compact into a new configuration You can combine it with another d:dicate or d:facto Microphone Capsule or Preamplifier.

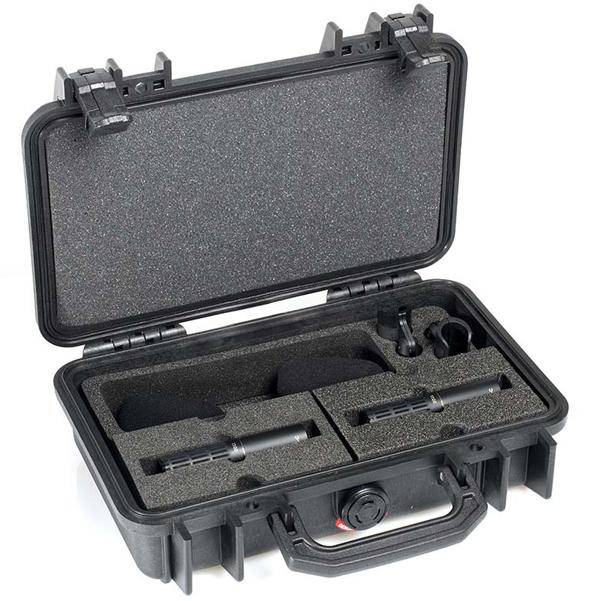

Features: Sensitivity-selected pair Blends clarity, richness and dynamics Twin diaphragm capsule and interference tube technologies Superb stage separation and level control Low-profile mounting options Modular flexibility Peli Case transportation and protection Specifications: Directional pattern: Cardioid Principle of operation: Pressure gradient, with interference tube Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule Frequency range: 20 Hz - 20 kHz Frequency range, ±2 dB, at 30 cm (11.8 in): 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re 1 V/Pa Equivalent noise level, A-weighted: Typ.
20 dB(A) re 20 µPa (max.
23 dB(A)) Equivalent noise level, ITU-R BS.468-4: Typ 33 dB (max.
36 dB) S/N ratio (A-weighted), re 1 kHz at 1 Pa (94 dB SPL): Typ.
74 dB(A) Total harmonic distortion (THD): < 1% up to 137 dB SPL peak Dynamic range: Typ 117 dB Max.
SPL, peak before clipping: 146 dB Output impedance: 100 Ω Minimum load impedance: 2 kΩ Cable drive capability: 100 m (328 ft) Output balance principle: Impedance balancing with Active Drive Common mode rejection ratio (CMRR): > 50 dB Power supply (for full performance): 48 V Phantom power (± 4 V) Current consumption: 2.8 mA Connector: XLR-3M Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase Color: Matte black Weight: 64 g (2.3 oz) Microphone diameter: 19 mm (0.75 in) Microphone length: 92 mm (3.6 in) Maximum output voltage, RMS: > 4 V Polarity: +V at pin 2 for positive sound pressure Temperature range" -40°C to 45°C (-40°F to 113°F) Relative humidity (RH): Up to 90% Box Contents: 2 x MMC2011 TWIN DIAPHRAGM CARDIOID MICROPHONE CAPSULE (MMC2011) 2 x MMP-C COMPACT MICROPHONE PREAMP (MMP-C) 2 x CLIP FOR d:dicate (UA0639) 2 x FOAM WINDSCREEN FOR d:dicate Ø19, LENGTH 72 MM (2.8 IN) (DUA0028) 1 x PELI™ CASE FOR d:dicate MICROPHONES (KE0002).
