DPA d:dicate ST2006A Stereo Pair Condenser Microphones

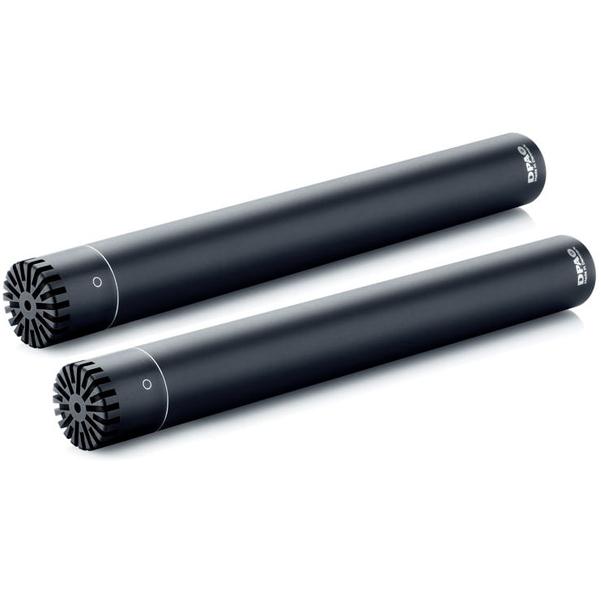

DPA d:dicate ST2006A Stereo Pair Condenser Microphones Overview: A complete stereo pair; two handpicked omnidirectional condenser microphones, selected on sensitivity within ±1.5 dB The mics deliver precise sound and true tone.

These mics are ideal for use with orchestra, acoustic piano, guitar, wind instruments and choirs The microphone capsule Inside this capsule, two opposite-facing miniature capsules are custom rebuilt.

They are placed into a double-diaphragm, one-capsule composition This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area.

These capsules provide fast impulse response and large frequency bandwidth The capsules are loaded to the supreme d:dicate Microphone series preamplifiers instead of the tiny miniature FET ones.

This gives the sound more air and precision Comparisons with its big brother, the iconic MMC4006 capsule, are inevitable.

The relationship between the two can be clearly heard The MMC2000 series performs as well as more exclusive microphones.

It is a premium-class mic capsule and redefines the term value for money A truly flexible range The d:dicate 2006A Twin Diaphragm Omni Microphone is part of the flexible d:dicate Microphone series.

It combines the MMC2006 Twin Diaphragm Omnidirectional Capsule, with the MMP-A preamplifier This combination is for the true audiophile.

It offers low distortion and totally accurate and faithful sound Another option, the d:dicate 2006C Twin Diaphragm Omnidirectional Microphone, Compact offers a subtle character alteration with a bit more “body” to the low end than the d:dicate 2006A Twin Diaphragm Omnidirectional Microphone.

At any time, and with no tools needed, it is possible to transform the d:dicate 2006A Twin Diaphragm Omnidirectional Microphone into a new configuration You can combine it with another d:dicate or d:facto Microphone Capsule or Preamplifier.

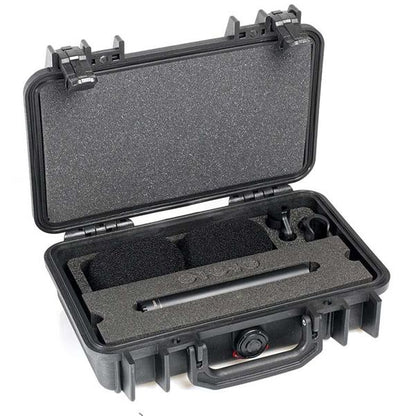

Features: Sensitivity-selected pair Acoustic authenticity Linear in a large frequency bandwidth Twin diaphragm capsule Modular flexibility Peli Case transportation and protection Specifications: Directional pattern: Omnidirectional Principle of operation: Pressure Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule Frequency range: 20 Hz - 20 kHz Frequency range, ±2 dB: 50 Hz - 20 kHz with typ 3 dB soft boost at 14 kHz Sensitivity, nominal, ±2 dB at 1 kHz: 40 mV/Pa; -28 dB re.

1 V/Pa Equivalent noise level, A-weighted: Typ 16 dB(A) re.

20 µPa (max 18 dB(A)) Equivalent noise level, ITU-R BS.468-4: Typ.

28 dB (max 30 dB) S/N ratio (A-weighted), re.

1 kHz at 1 Pa (94 dB SPL): Typ 78 dB(A) Total harmonic distortion (THD): < 1% up to 130 dB SPL peak Dynamic range: Typ.

114 dB Max SPL, peak before clipping: 146 dB Switchable attenuator, filters etc.: 0 dB / -20 dB Output impedance: 200 Ω Minimum load impedance: 2 kΩ Cable drive capability: 100 m (328 ft) Output balance principle: Impedance balancing with Active Drive Common mode rejection ratio (CMRR): > 60 dB Power supply (for full performance): 48 V Phantom power (± 4 V) Current consumption: 2.8 mA Connector: XLR-3M.

Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase Color: Matte black Weight: 160 g (5.6 oz) Microphone diameter: 19 mm (0.75 in) Microphone length: 164 mm (6.5 in) Maximum output voltage, RMS: 8 V Polarity: +V at pin 2 for positive sound pressure Temperature range: -40°C to 45°C (-40°F to 113°F) Relative humidity (RH):Up to 90%.
