DPA d:dicate ST4006C Stereo Condenser Microphone Set

DPA d:dicate ST4006C Stereo Condenser Microphone Set Overview: Whenever a small, lightweight, inconspicuous microphone for top-quality recording is required, a d:dicate 4006C Microphone is the right choice They come as a hand-matched pair that offers the truest capture of stereo sound available.

Even though the standard tolerances on our d:dicate microphones are extremely low, a stereo match is even closer These specially selected d:dicate™ 4006C microphones are matched within ±0.5 dB on both frequency response and sensitivity.

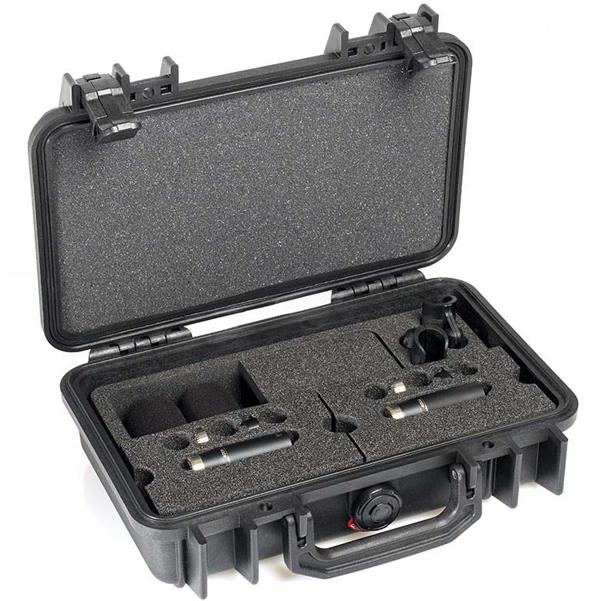

The pair comes in a heavy-duty Peli Case for safe transportation and easy access to the microphones and accessories The mic capsule The MMC4006 Omnidirectional Microphone Capsule offers total transparency in any recording situation.

It picks up incredible detail and depth of sound The definition of its high-frequency characteristics across a wide range of instruments is impressive.

It offers natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 to 20 kHz (±2 dB) A selection of optional accessories can be purchased,, including acoustic pressure equalizers, a nose cone and interchangeable protection grids.

These accessories can acoustically transform the mic By changing grids, it is possible to gain several unique frequency responses and directional characteristics from the mic.

Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter A truly flexible range The d:dicate 4006C Omnidirectional Microphone, Compact is part of the flexible d:dicate™ Microphones Series.

It combines the MMC4006 Omnidirectional Capsule with the MMP-C compact preamplifier This combination offers a subtle character alteration with a bit more “body” to the low end than the d:dicate 4006A Omnidirectional Microphone.

Another option, for the true audiophile, is the d:dicate 4006A Omnidirectional Microphone It offers low distortion and totally accurate and faithful sound.

Features: Carefully matched microphones Natural sound High sensitivity Low noise-floor Extremely linear frequency Sturdy Peli Case for transportation and protection Specifications: Directional pattern: Omnidirectional Principle of operation: Pressure Cartridge type: Pre-polarized condenser Frequency range: 10 Hz - 20 kHz Frequency range, ±2 dB: 20 Hz - 20 kHz Sensitivity, nominal, ±2 dB at 250 Hz: 40 mV/Pa; -28 dB re 1 V/Pa Equivalent noise level, A-weighted: Typ.

15 dB(A) re 20 µPa (max.

17 dB(A)) Equivalent noise level, ITU-R BS.468-4: Typ 27 dB (max.

29 dB) S/N ratio (A-weighted), re 1 kHz at 1 Pa (94 dB SPL): Typ.

79 dB(A) Total harmonic distortion (THD): < 1% up to 134 dB SPL peak Dynamic range: Typ 119 dB Max.

SPL, peak before clipping: 139 dB Output impedance: 100 Ω Minimum load impedance: 2 kΩ Cable drive capability: 100 m (328 ft) Output balance principle: Impedance balancing with Active Drive Common mode rejection ratio (CMRR): > 50 dB Power supply (for full performance): 48 V Phantom power (± 4 V) Current consumption: 2.8 mA Connector: XLR-3M Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase Color: Matte black Weight: 63 g (2.2 oz) Microphone diameter: 16 - 19 mm (0.6 - 0.75 in) Capsule diameter: 16 mm (0.6 in) Microphone length: 64 mm (2.5 in) Maximum output voltage, RMS: 4.5 V Polarity: +V at pin 2 for positive sound pressure Temperature range: -40°C to 45°C (-40°F to 113°F) Relative humidity (RH): Up to 90% Matching tolerance (frequency response and sensitivity): ±0.5 dB Phase deviation for kit: < 5°.
