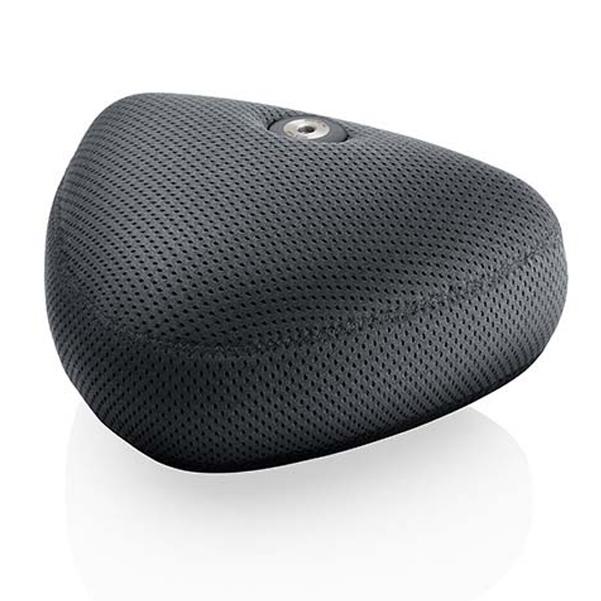

DPA d:mension 5100 Mobile Surround Condenser Microphone

DPA d:mension 5100 Mobile Surround Condenser Microphone Overview: The d:mension 5100 Mobile Surround Microphone is compact and easy to use The mic combines stunning sound quality with a plug-and-play solution.

It brings engaging surround ambience to sport events, documentaries and other HDTV productions The mic requires no external signal processing.

This microphone is versatile You can mount it in many ways: on a camera, microphone stand, suspended from the ceiling or via a hand grip.

It is lightweight and portable It can also withstand inclement weather conditions due to its robust nature.

The d:mension 5100 Mobile Surround Microphone is a completely self-contained plug-and-play solution for 5.1 audio capture It uses five miniature pressure transducers.

These transducers have low sensitivity to wind and mechanical noise, low distortion and low frequency response They also have a large dynamic range.

Appropriate channel separation and directionality is achieved by combining the use of DPA Microphones’ proprietary Directional Pressure Microphone (DiPMic) technology with the use of acoustic baffles DiPMic mounts interference tubes on the L/C/R omnidirectional capsules.

Acoustic baffles preserve the accuracy of levels between the discrete analog output channels The three front microphones in this system are time aligned to eliminate comb filtering.

This also ensures frequency consistency when down mixing to stereo or mono In contrast, the rear microphones, with standard omnidirectional patterns, are optimally spaced from both each other and the front array to simulate the most natural time arrival differences.

The LFE (0.1) channel is comprised of a L/R sum, which is then attenuated 10 dB in comparison with the signal from the main channels This is in accordance with the 5.1 format.

The d:mension 5100 Mobile Surround Microphone provides a surround atmosphere that is rich, smooth and enveloping It is great in its coherence, channel separation and localization accuracy.

The 5.1 output of the microphone runs through a multipin Lemo connector This connector carries all six electronically-balanced channels.

The microphone comes with a five-meter (16 ft), six-pair Mogami that cable breaks out to six Neutrik XLR-M connectors Features: Plug-and-play solution Lightweight and portable Rich, smooth and fully enveloping sound Discrete 5.1 analog output – no processing needed Specifications: Directional pattern: Directional Principle of operation: Pressure, with interferece tube and separation baffles Cartridge type: Pre-polarized condenser element Frequency range: L, C, R, LS, RS: 20 Hz to 20 kHz; LFE: 20 Hz to 120 Hz Frequency range, ±2 dB: L, C, R: 200 Hz to 16 kHz; LS, RS: 100 Hz to 12 kHz; LFE: 20 Hz to 120 Hz Sensitivity, nominal, ±3 dB at 1 kHz: L, C, R: 26 mV/Pa; LS, RS: 28 mV/Pa Equivalent noise level, A-weighted: L, C, R: Typ.

18 dB(A) (max 21 dB(A)); LS, RS: Typ.

20 dB(A) (max 23 dB(A)) Equivalent noise level, ITU-R BS.468-4: L, C, R: Typ.

29 dB (max 32 dB); LS, RS: Typ.

31 dB (max 34 dB) S/N ratio (A-weighted), re.

1 kHz at 1 Pa (94 dB SPL): L, C, R: Typ 76 dB(A); LS, RS: Typ.

74 dB(A) Total harmonic distortion (THD): < 1% up to 123 dB SPL peak Dynamic range: L, C, R, LS, RS: 103 dB; LFE: 100 dB Max SPL, peak before clipping: 132 dB Output impedance: 50 Ω Cable drive capability: 100 m (328 ft) Output balance principle: Active Signal balanced Common mode rejection ratio (CMRR): 60 dB, 50 Hz - 20 kHz Power supply (for full performance): 48 V Phantom power Current consumption: Typ.

5 mA (max 5.5 mA) Connector: Lemo multipin Color: Black Weight: 500 g (17.6 oz) Microphone diameter: W: 240 mm (9.4 in), H: 140 mm (5.5 in), D: 195 mm (7.7 in) Capsule diameter: 5.4 mm (0.21 in) Cable length: 5 m (16.4 ft) Cable color: Black Cable diameter: 9.3 mm (0.37 in) Maximum output voltage: L, C, R, LS, RS: 1,8 Vrms / 2,5 Vpeak; LFE: 1 Vrms / 1,4 Vpeak Polarity: Positive Temperature range: -40°C to 45°C (-40°F to 113°F) Relative humidity (RH): Up to 90%.
