Electro-Voice brings the rugged build and professional sound quality of its high-end, road-tested speaker offerings into the portable PA arena with the lightweight yet mighty Live X series of loudspeakers.

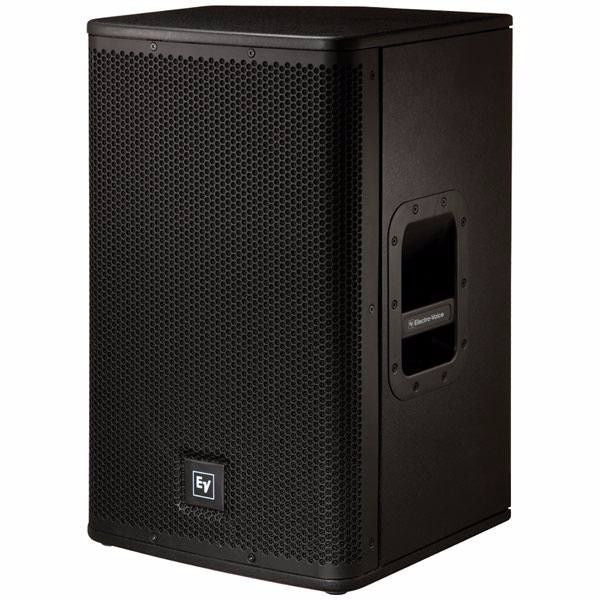

The EV ELX112 is a 12'' loudspeaker designed to deliver powerful, tight, full-range sound in a ruggedly built, lightweight wood cabinet. It can be used for either sound reinforcement or on-stage monitoring.Under The Hood
Beneath the 15mm plywood enclosure is a 12'' woofer and 1.5'' titanium diaphragm compression driver (tweeter). They deliver a frequency range of 55 Hz-20 kHz and can handle 250 watts of continuous power (1000 watts peak) as well as 132 dB maximum SPL. A built-in pole mount was designed to stack perfectly atop the EV Live X Subwoofer (ELX118P).
At only 35 pounds, the Electro-Voice ELX112 is lightweight, packs a clear, powerful punch, is chock full of useful features and delivers EV quality at a price that wont empty your bank account. Whether used in a nightclub, house of worship, or at a family party, quality sound will fill the air and satisfy even the most critical ears. Plug in, turn up, and step back!
- Designed for House of Worship, Pro Music, and other applications.
- 12'' woofer and 1.5'' high-frequency titanium compression driver
- 55 Hz ÑÏ 20 kHz frequency range 94 dB SPL sensitivity; 132 dB max SPL
- 250 W continuous and 1000 W peak power handling
- Rugged wood cabinet ѝ pole-mounts or stacks with Live X Subwoofers
Axial Sensitivity 94 dB
Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Frequency Response (-3 dB) 82 Hz - 18 k Hz
Frequency Response (-10 dB) 55 Hz - 20 k Hz
Recommended High-Pass Frequency 45 Hz
Max. SPL/1m (calc) 132 dB
(Nominal -6 dB) HÌâå¡ 90 Ìâå¡
(Nominal -6 dB) VÌâå¡ 50 Ìâå¡
LF Transducer (1) EVS-12K, 305mm (12'') Woofer
HF Transducer DH-1K, 39mm (1.5'') Titanium Diaphragm Compression Driver
Crossover Frequency 2.1 k Hz
Nominal Impedance (Passive) 8 Ì_å©
Minimum Impedance 7 Ì_å©
Connector Type Dual NL4
Grill 18GA Steel with Black Powdercoat
Height 607 mm (23.9")
Width 362 mm (14.25")
Depth 340 mm (13.39")
Weight Net 15.8 kg (34.83 lbs)
Shipping Weight 20 kg (44.09 lbs)
