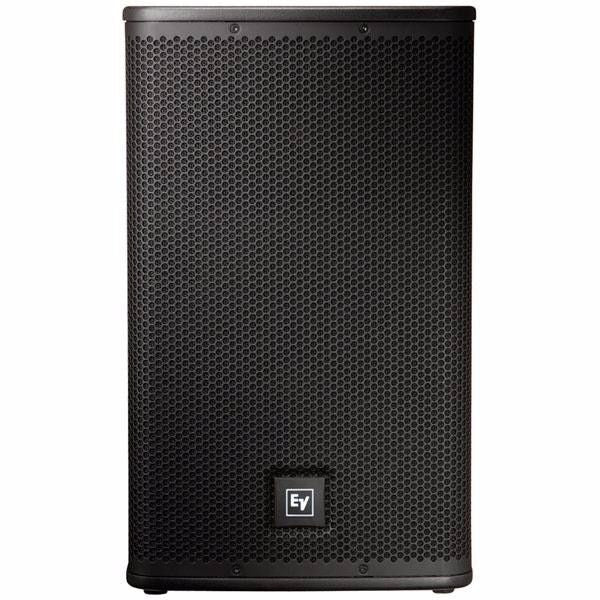

Electro-Voice ELX112P 12" Live X Two-way Powered PA Cabinet

Shop Brand : Electro-Voice
The EV ELX112P is a 12'' powered PA cabinet was designed to deliver powerful, tight, full-range sound in a ruggedly built, lightweight cabinet. Powered by a built-in 1000-watt class D amplifier perfectly matched to the speaker, the EV ELX112P can be used for either sound reinforcement or on-stage monitoring.

Under the hood:

Beneath the 15mm plywood enclosure is a 12'' woofer and 1.5'' titanium diaphragm compression driver (tweeter).  The bi-amplified design has a 24dB/Octave filter slope and transducer protection so a sudden overload shouldn't cause any permanent damage in the heat of performance.

Connections and Switches:

Flexible connectivity makes the EV ELX112P a dream to set up and turn loose on your audience. 2 separate inputs each with their own separate level control grace the rear input panel. Both channels sport an XLR/TRS combo jack and input 1 offers the addition of RCA L/R inputs. There's a switchable line/mic mode on input 2 so you can set the proper impedance for the right application. The master volume control sits atop a switchable Normal/Boost control making the ELX112P useful for various environments. A selectable 100 Hz high pass filter can be switched for use with an external subwoofer and an XLR link output enables connection to another ELX112P.

Cool Useful Features:

Additional features include a built-in pole mount (also designed to stack perfectly atop Live X Subwoofers), a front-mounted Power LED, indicator lights for power on and limit.

The Electro-Voice ELX112P is lightweight, packs a clear, powerful punch, is chock full of useful features and delivers EV quality at a price that wont empty your bank account. Whether used in a nightclub, house of worship, or at a family party, quality sound will fill the air and satisfy even the most critical ears.

  • Designed for House of Worship, Pro Music, and other applications.
  • 12" woofer and 1.5" high-frequency titanium compression driver
  • 50 Hz ÑÏ 20 kHz frequency range; 132 dB max SPL
  • 1000 W Class D lightweight amplifier ѝ runs cool without fans
  • Easy to connect and control with versatile input and output options
  • Rugged wood cabinet ѝ pole mounts or stacks with Live X Subwoofers


  • Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
  • Frequency Response (-3 dB) 60 Hz - 18 k Hz
  • Frequency Response (-10 dB) 50 Hz - 20 k Hz
  • Max. SPL/1m (calc) 132 dB
  • Coverage
  • (Nominal -6 dB) HÌâå¡ 90 Ìâå¡
  • LF Transducer (1) EVS-12K, 305mm (12'') Woofer
  • HF Transducer DH-1K, 39mm (1.5'') Titanium Diaphragm Compression Driver
  • Crossover Frequency 1.7 k Hz
  • Connector Type (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output
  • Grill 18GA Steel with Black Powdercoat
  • Height 607 mm (23.9")
  • Width 362 mm (14.25")
  • Depth 340 mm (13.39")
  • Weight Net 18.8 kg (41.45 lbs)
  • Shipping Weight 23.2 kg (51.15 lbs)
