Fender 0037612000 Twin Reverb Output Transformer

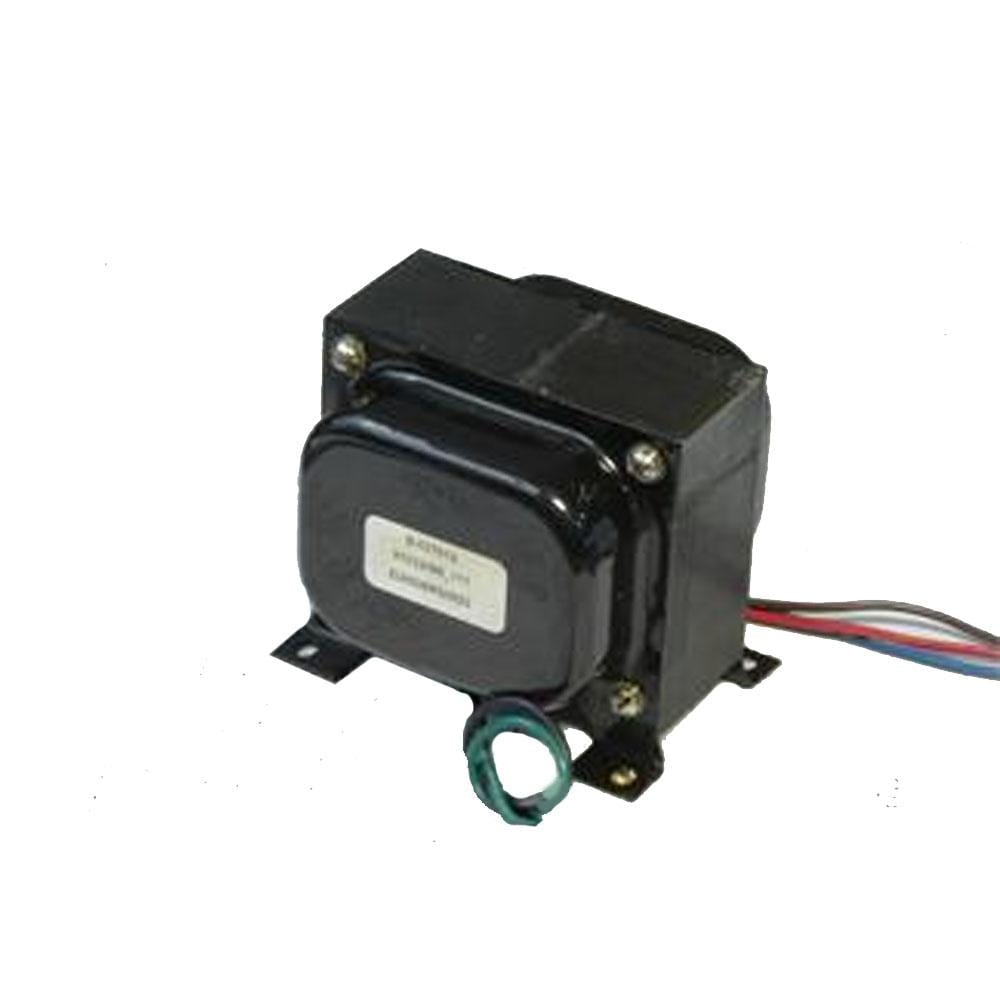

Fender 0037612000 Twin Reverb Output Transformer Overview : Fender Twin Reverb Amp Output Transformer '65 Twin Reverb reissue output transformer. Good also for Showman and other amps using four 6L6 output tubes, good for 100 gracefully distorted watts into a 4 ohm load. Standard push-pull primary with three wires; red center tap, brown and blue plate leads. Upright end bell construction. Measures approx. 3.75"X3.375"X3.125" tall.

Mounts to chassis with four screws, mounting centers 3.5"X2.25".
