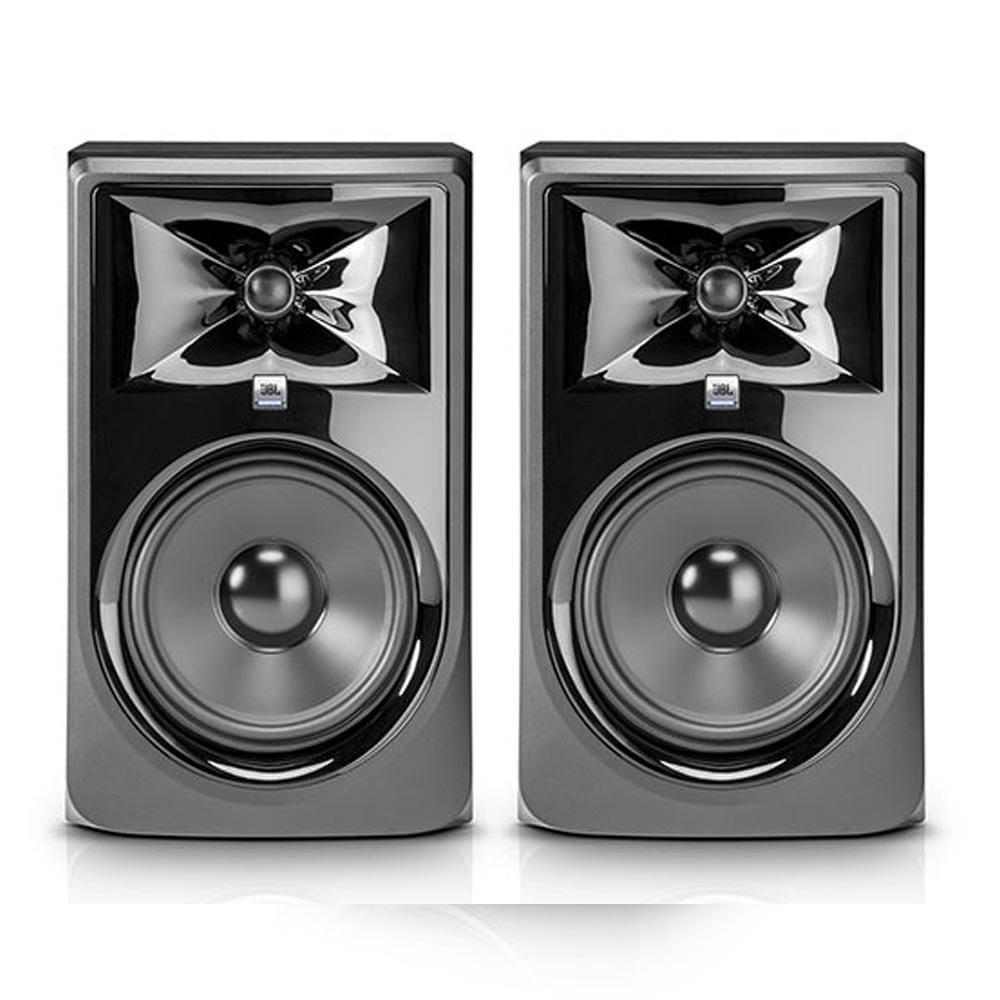

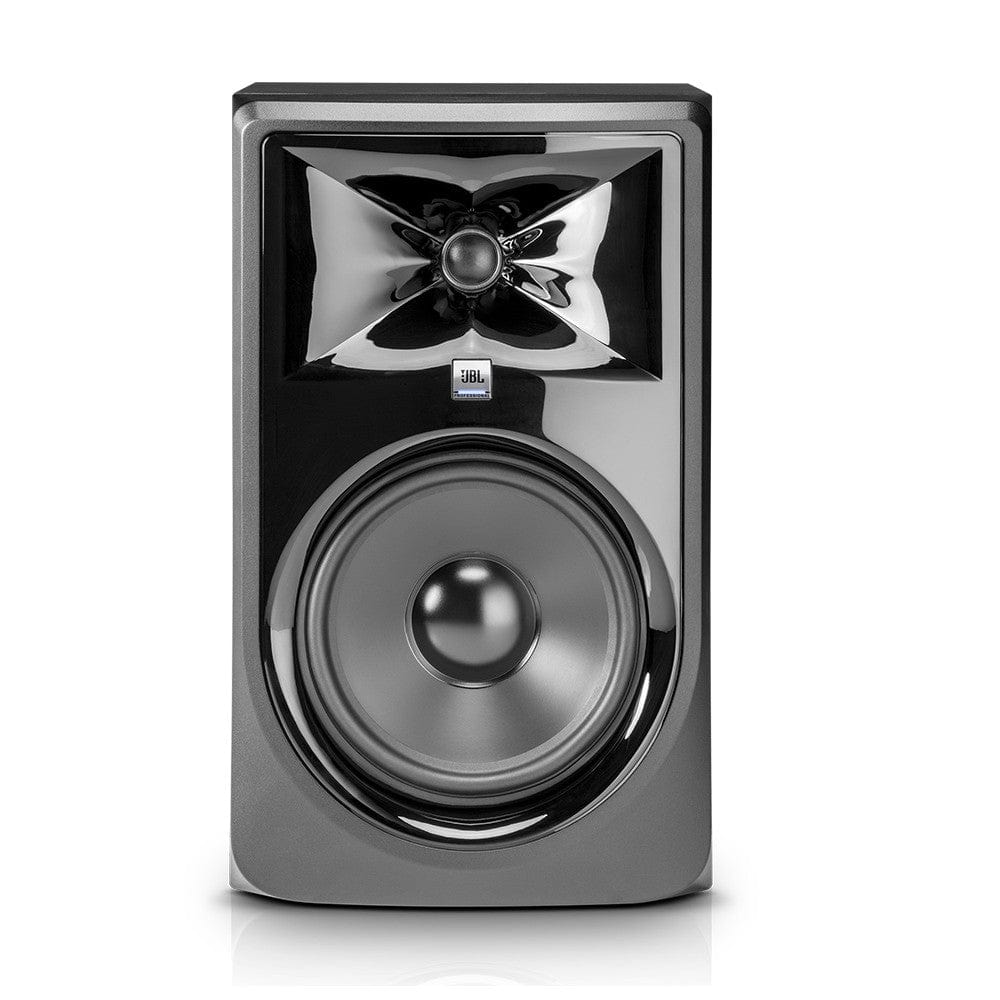

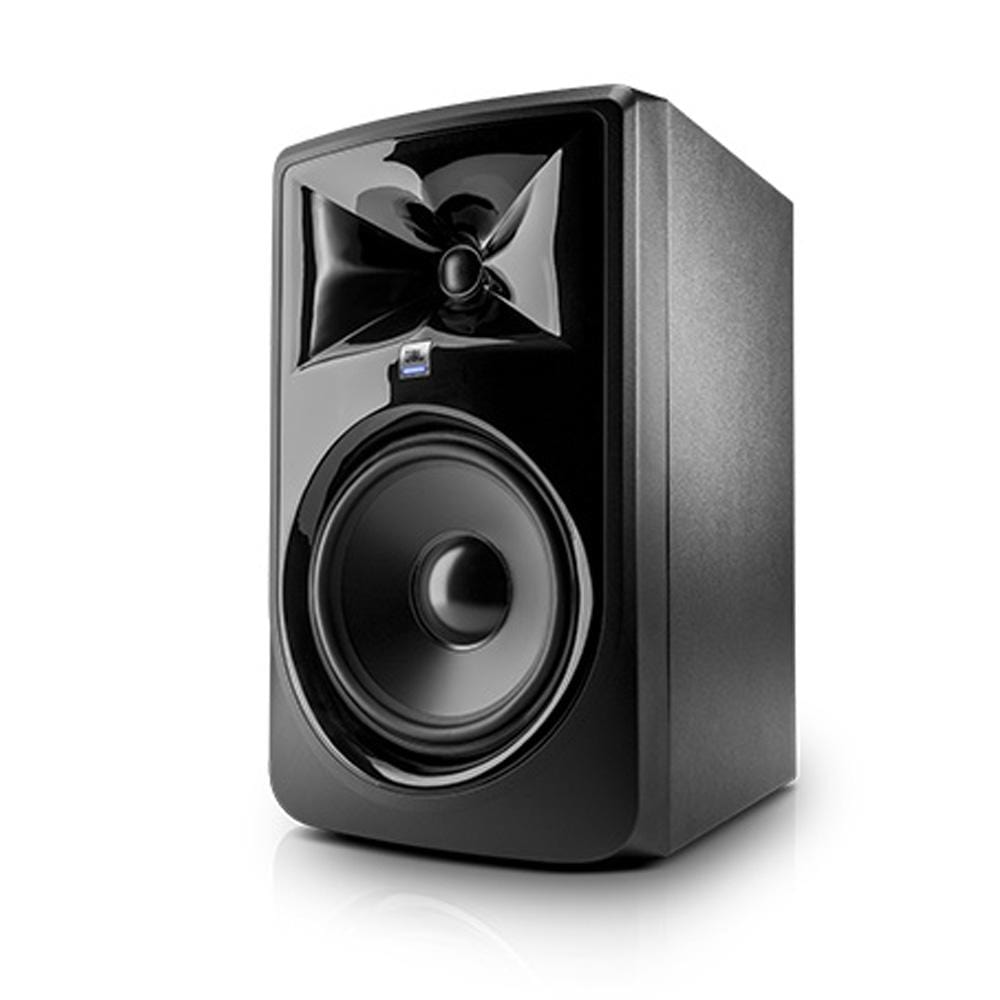

JBL 308P MKII 8-Inch Two-Way Powered Studio Monitor Speaker - Single

JBL 308P MKII 8-Inch Two-Way Powered Studio Monitor Speaker Overview : Powered 8" Two-Way Studio Monitor \n The next-generation JBL 308P MkII powered studio monitor makes legendary JBL performance available to every studio With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 308P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace.

Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 308P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price \n \n \n \n \n \n Why MkII? \n Since their release, word has spread on the quality and value found in the original JBL 3 Series, resulting in wide adoption from hobbyists to high-end professionals working in music, film, post, and broadcast production worldwide.

With such an obvious hit, you might ask, "Why update now?" On every project at JBL, there’s always a handful of features or improvements that the engineering team can’t squeeze in before going to production 3 Series was no different.

When the opportunity presented itself, we decided to make those final improvements to the transducers, add a frequently-requested feature, and apply the latest manufacturing learnings The result—a new edition of this popular studio monitor that retains the best qualities of the original, but now looks better, sounds better, and provides transparent sound in even more production environments.

\n \n \n Patented Image Control Waveguide \n Reveal impressive detail, ambience and depth in your mixes thanks to the groundbreaking JBL Image Control Waveguide Originally developed for JBL’s flagship M2 Master Reference Monitor, this patented innovation ensures an acoustically seamless transition between the low- and high-frequency transducers and provides an immersive soundstage with precise imaging.

Offering a broad sweet spot and neutral frequency response, JBL 305P MkII delivers a crystal-clear representation of your mix—revealing subtle details, even when listening off-axis \n \n \n Next-Generation Transducers \n ENHANCED MIXING ACCURACY \n To help you make the best mix decisions, we equipped all the monitors in this series with acclaimed 3 Series transducers that now perform even better.

Hear deep, accurate and tightly controlled bass thanks to a long-throw woofer and the patented JBL Slip Stream™ low-frequency port Enjoy soaring, immaculately detailed highs via the woven-composite 1" Neodymium tweeter.

JBL engineers took things to the next level with faster HF transient response through fine-tuned ferrofluid damping, and greater low-frequency linearity and lower harmonic distortion, courtesy of an enhanced woofer design The result is a studio monitor you can trust—with unmatched peak handling, stunning dynamics and neutral frequency response that’s unbeatable in its class.

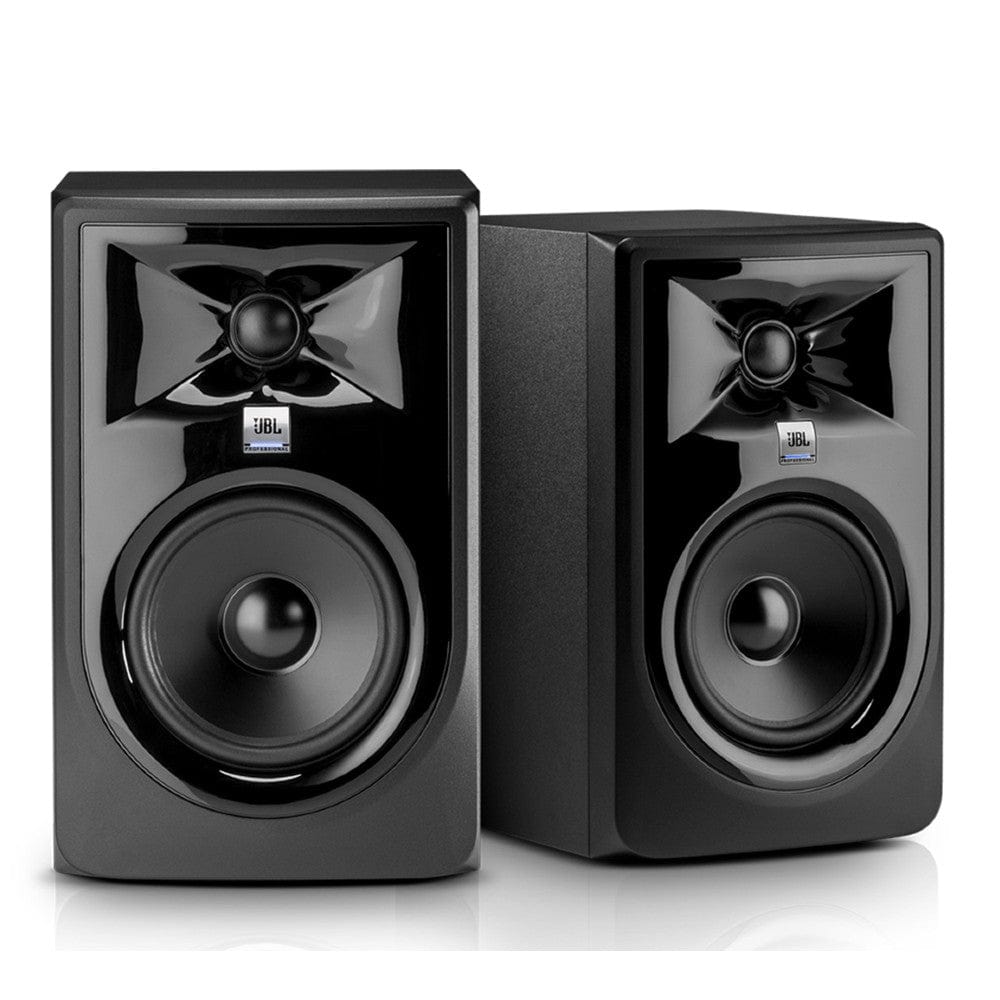

Three different sizes available: 305P MkII (5"), 306P MkII (6.5") and 308P MkII (8") \n Next-generation JBL transducers for optimized transient response and improved linearity \n Patented Slip Stream low-frequency port and long-throw woofers provide superior bass performance \n Woven-composite 1" Neodymium tweeter for detailed and accurate highs BIG SOUND OUT OF THE BOX JBL 305P MkII is ready for the most demanding production styles right out of the box Dual integrated Class D power amplifiers, custom designed by JBL for each transducer, give you generous dynamic range for any project.

From music production and podcasting to cinematic sound design or daily vlogging, enjoy the output and power you need to hear exceptional detail at any volume—even at peak SPLs Simply plug in, power on, and start creating.

TAILORED SOUND TO FIT YOUR STUDIO The dimensions and acoustics of a room can have a major effect on sonic accuracy, and that’s why JBL 305P MkII lets you adjust the response to fit your studio The new Boundary EQ attenuates the low-end boost that can occur when you place monitors directly on the desktop or near walls.

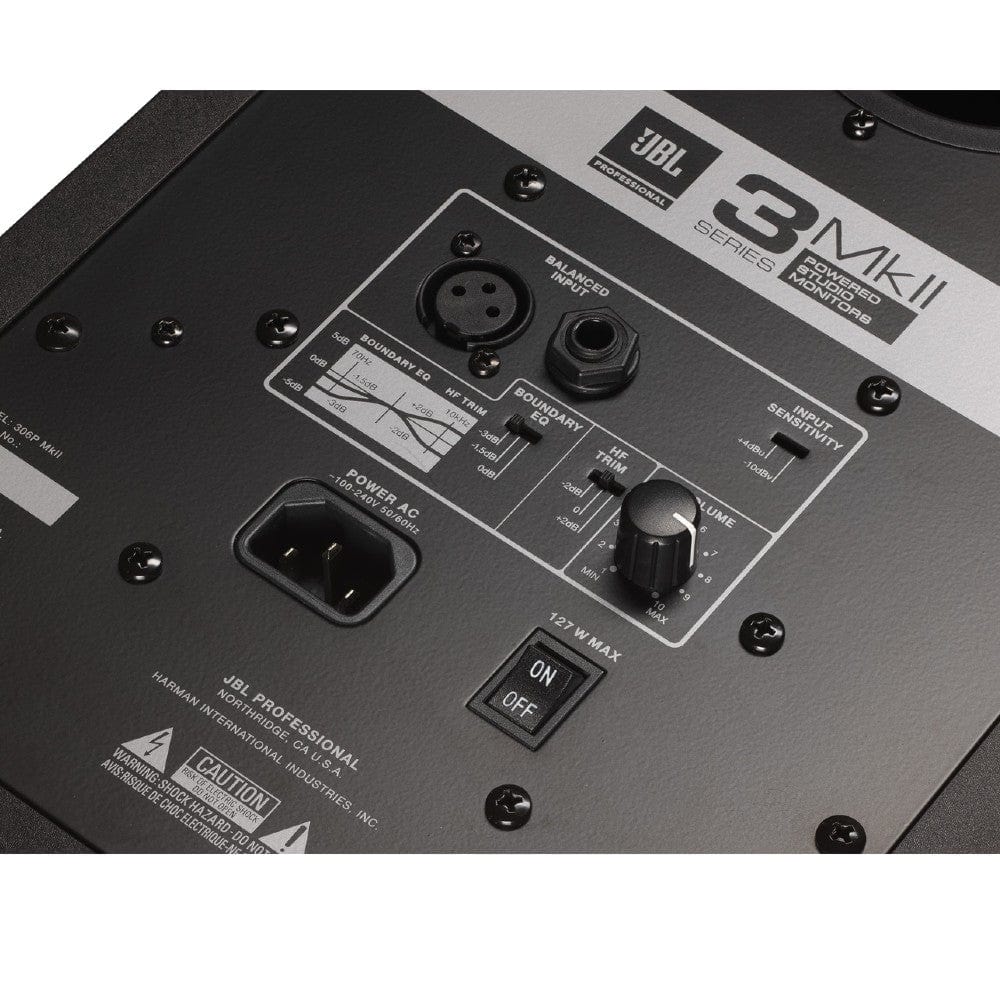

The 3-position HF Trim switch allows you to adjust the high-frequency response of the 305P MkII to tailor it to room acoustics or personal tastes Flexible Connectivity Offering both balanced XLR and 1/4" TRS inputs, and adjustable +4dBu/-10dBV input sensitivity, the 305P MkII offers flexible, professional connectivity options to provide easy setup while maintaining your signal integrity.

\n \n \n \n JBL PROFESSIONAL RELIABILITY \n JBL Professional studio monitors are designed for reliable performance, even when projects push your gear to the limit Before being approved for production, 3 Series monitors must first pass JBL’s strenuous Power Test.

Each model is required to perform flawlessly at maximum volume for an unheard-of 100 hours—without failure As a result, you can depend on 305P MkII monitors to deliver consistently excellent sound reproduction for years to come.

\n \n Features: \n \n Strenuous JBL 100-hour power test ensures long-term reliability \n Dependable and consistent performance \n Legendary JBL build-quality \n \n \n Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot \n Next-generation JBL transducers for optimized transient response and improved linearity \n Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels \n Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range \n New Boundary EQ settings compensate for low frequency variants introduced by the environment \n HF Trim switch adjusts high-frequency output to room acoustics or personal preferences \n Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space Strenuous JBL 100-hour full-power test ensures years of reliability Sleek, modern design provides a visual upgrade to any studio The 3 Series Family CHOOSE THE MODEL THAT FITS YOUR WORKSPACE With three different models to choose from, there’s a 3 Series monitor to fit your studio and budget The 5" 305P MkII offers a remarkably full sound in an enclosure small enough to fit in the tightest workspace.

The 6.5" 306P MkII is perfect if you need even more volume and bass response while still maintaining a compact footprint The 8" 308P MkII is the largest and most powerful of the three models in the series, offering impressive low end, high output and excellent dynamic range.

\n \n \n \n \n \n SPECIFICATIONS \n 305P MKII \n 306P MKII \n 308P MKII \n \n \n LF DRIVER SIZE \n 126mm (5") 165mm (6.5") \n 203mm (8") HF DRIVER SIZE 25mm (1") \n 25mm (1") 25mm (1") \n \n \n HF DRIVER TYPE \n Soft dome \n Soft dome \n Soft dome \n \n \n CROSSOVER \n 1725Hz 4th order acoustic Linkwitz-Riley \n 1425Hz 4th order acoustic Linkwitz-Riley \n 1800Hz 4th order acoustic Linkwitz-Riley \n \n \n OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT \n Yes \n Yes \n Yes \n \n \n INPUT SENSITIVITY (-10dBV INPUT) \n 92dB / 1m \n 92dB / 1m \n 92dB / 1m \n \n \n POWER CONFIGURATION \n Bi-amplified \n Bi-amplified \n Bi-amplified \n \n \n HF DRIVER POWER AMP \n 41W, Class-D \n 56W, Class-D \n 56W, Class-D \n \n \n LF DRIVER POWER AMP \n 41W, Class-D \n 56W, Class-D \n 56W, Class-D \n \n \n FREQUENCY RESPONSE (±3dB) \n 49Hz – 20kHz \n 47Hz – 20kHz \n 45Hz – 20kHz \n \n \n FREQUENCY RANGE (-10dB) \n 43Hz – 24kHz \n 39Hz – 24kHz \n 37Hz – 24kHz \n \n \n LOW FREQUENCY EXTENSION (-10dB) \n 43Hz \n 39Hz \n 37Hz \n \n \n MAXIMUM CONTINUOUS SPL \n 94dB \n 92dB \n 102dB \n \n \n MAXIMUM PEAK SPL \n 108dB \n 110dB \n 112dB \n \n \n MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) \n +6dBV / +20.3dBu \n +6dBV / +20.3dBu \n +6dBV / +20.3dBu \n \n \n SYSTEM DISTORTION CRITERIA \n <10% THD at maximum output with full compressor / limiter engagement \n <10% THD at maximum output with full compressor / limiter engagement \n <10% THD at maximum output with full compressor / limiter engagement \n \n \n ELECTRICAL DISTORTION CRITERIA \n 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output \n 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output \n 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output \n \n \n SIGNAL TO NOISE RATIO \n 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output \n 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output \n 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output \n \n \n COVERAGE (HORIZONTAL x VERTICAL) \n 120° x 90° \n 120° x 90° \n 120° x 90° \n \n \n ANALOG INPUT TYPES \n 1 x XLR female, 1 x TRS female, balanced \n 1 x XLR female, 1 x TRS female, balanced \n 1 x XLR female, 1 x TRS female, balanced \n \n \n HF TRIM CONTROL \n -2dB, 0dB, +2dB \n -2dB, 0dB, +2dB \n -2dB, 0dB, +2dB \n \n \n BOUNDARY EQ \n LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB \n LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB \n LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB \n \n \n AC INPUT VOLTAGE \n 100 – 240VAC (±10%), 50 / 60Hz \n 100 – 240VAC (±10%), 50 / 60Hz \n 100 – 240VAC (±10%), 50 / 60Hz \n \n \n ENCLOSURE TYPE \n Ported \n Ported \n Ported \n \n \n ENCLOSURE CONSTRUCTION \n 15mm MDF \n 15mm MDF \n 15mm MDF \n \n \n ENCLOSURE FINISH \n Matte black PVC \n Matte black PVC \n Matte black PVC \n \n \n BAFFLE CONSTRUCTION \n Injection-molded structural ABS \n Injection-molded structural ABS \n Injection-molded structural ABS \n \n \n CABINET DIMENSIONS (H x W x D) \n 298 x 185 x 231mm (11.7" x 7.3" x 9.1") 361 x 224 x 282mm (14.2" x 8.8" x 11.1") \n 419 x 254 x 308mm (16.5" x 10" x 12.1") DISPLAY CARTON (H x W x D) 354 x 244 x 299mm (13.9" x 9.6" x 11.8") \n 408 x 285 x 328mm (16.1" x 11.2" x 12.9") 473 x 312 x 358mm (18.6" x 12.3" x 14") \n \n \n SHIPPING CARTON (H x W x D) \n 373 x 260 x 315mm (14.7" x 10.2" x 12.4") 418 x 292 x 338mm (16.5" x 11.5" x 13.3") \n 491 x 326 x 372mm (19.3" x 12.8" x 14.6") NET WEIGHT 4.73 kg (10.43 lbs) 6.1 kg (13.42 lbs) 8.1 kg (17.87 lbs) SHIPPING GROSS WEIGHT 5.72 kg (12.61 lbs) 7.25 kg (15.95 lbs) 9.4 kg (20.73 lbs).
