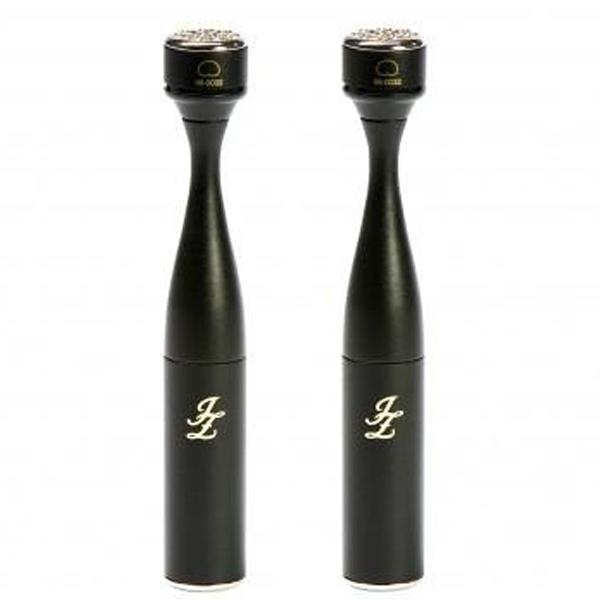

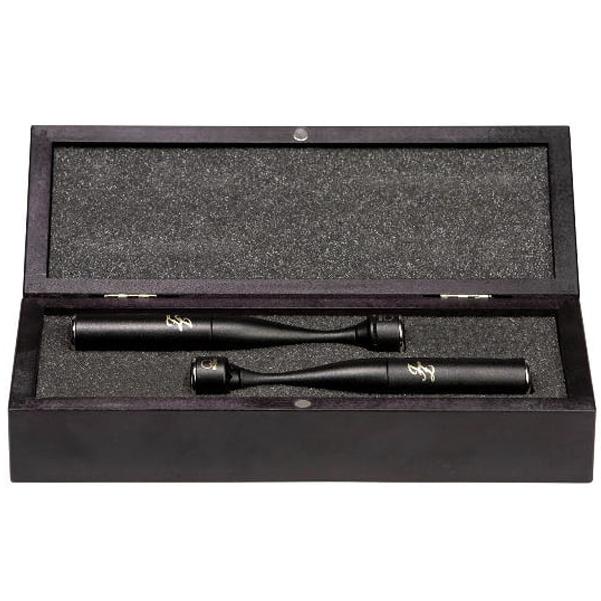

JZ Microphones BT-201-1S Matched Pair Small Diaphragm Condenser Microphones

SKU : JZM-BT2011S
Sold out
Rs. 87,750
Rs. 72,305

   Free Delivery available on this product.

Buy Bajaao Premium Warranty- With Accidental Damage Cover & Free Pickup and Return T&C


Seen It For Less? Learn More
JZ Microphones BT-201-1S Matched Pair Small Diaphragm Condenser Microphones Overview:

BT201|1s is a stero pair of two small diaphragm cardioid condenser microphone, offering optional choice of 3 capsules that satisfy the demands of all common studio and live applications - omni, open cardioid and open cardioid -20db option capsules. Matched pair is available to provide balanced stereo recordings. Also optional accessories JZI|7 and JZ|HLDR are recommended for BT201 series microphones.

Specifications:
  • Transducer type: electrostatic
  • Operating principal: pressure gradient
  • Diaphragms active diameter: 13 mm
  • Frequency range: 20 Hz to 20 kHz
  • Polar pattern: cardioid
  • Pad switch: -20dB (BT-P capsule)
  • Output impedance: 50 ohms
  • Rated load impedance: >1000 ohms
  • Suggested load impedance: >250 ohms
  • Sensitivity at 1000 Hz into 1000 ohms load: 11 mV/Pa
  • S/N Ratio CCIR 468-3 weighted: 71 dB
  • S/N Ration DIN/IEC 651 A-weighted: 82db-A
  • Equivalent noise level DIN/IEC A-weighted: 12 dB-A
  • Maximum SPL for 0.5% THD at 1000 ohm load: 140dB
  • Dynamic range of the microphone preamplifier: 128 db
  • Phantom powering voltage on pins 2 & 3 of XLR: +48 V (+/-4V)
  • Current consumption: 2 mA
  • Output connector: 3-pin XLR male, gold plated contacts
  • Signal polarity: positive toward pressure on a frontal diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3
  • Dimensions: 161.5 mm length x 24 mm
  • Weight: 140g together with magnetically attached head
