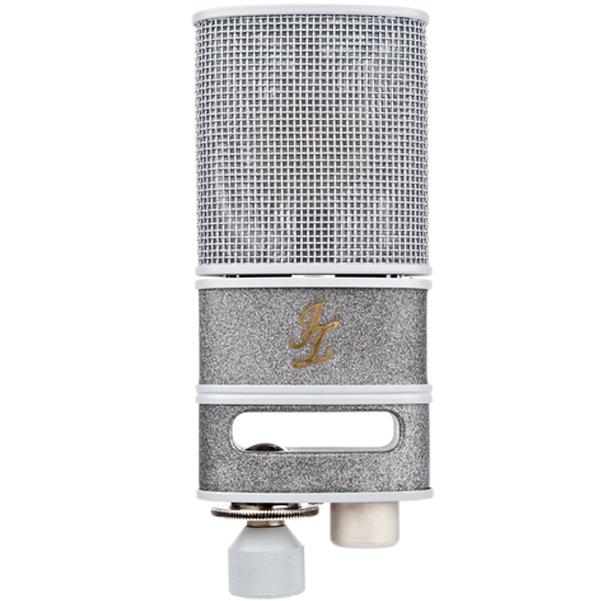

JZ Microphones Vintage 12 Condenser Microphone Overview: JZ Microphones now offers - the new Vintage 12 follows the success of V47 & V67 JZ Microphones have adopted best qualities of C12 and added their signature by using Golden Drop Technology for GDC12 capsule and replacing transistors instrad of tubes.
Vintage 12 still has the same design of Vintage series, the inner shock-mounting system, adjustable swivel mount and two layer mesh instead of three layer mesh Features: Large diaphragm condenser microphone GDC12 capsule Class A discrete electronics Fixed cardioid polar pattern Specifications: Transducer type: Electrostatic Operating principal: Pressure gradient Diaphragms active diameter: 25 mm Frequency range: 20 Hz to 20 kHz Polar pattern: Cardioid Output impedance: 50 ohms Rated load impedance: 1000 ohms Suggested load impedance: > 500 ohms Sensitivity at 1000 Hz into 1000 ohms load: 22 mV/Pa S/N Ratio CCIR 468-3 weighted: 76 dB S/N Ratio DIN/IEC 651 A-weighted: 87 db-A Equivalent noise level DIN/IEC A-weighted: 6 dB-A Maximum SPL for 0.5% THD at 1000 ohm load: 134 dB Dynamic range of the microphone preamplifier: 128 db Phantom powering voltage on pins 2 & 3 of XLR: +48 V (+/-4 V) Current consumption: < 2 mA Output connector: 3-pin XLR male, gold plated contacts Signal polarity: positive toward pressure on a diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3.
