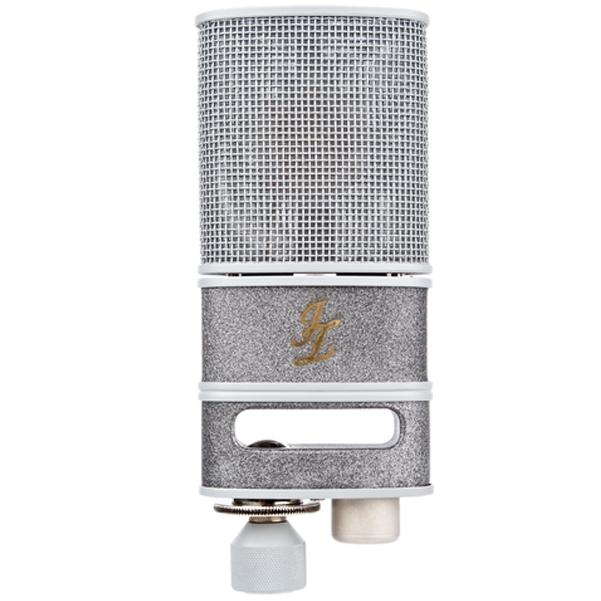

JZ Microphones Vintage 67 Condenser Microphone

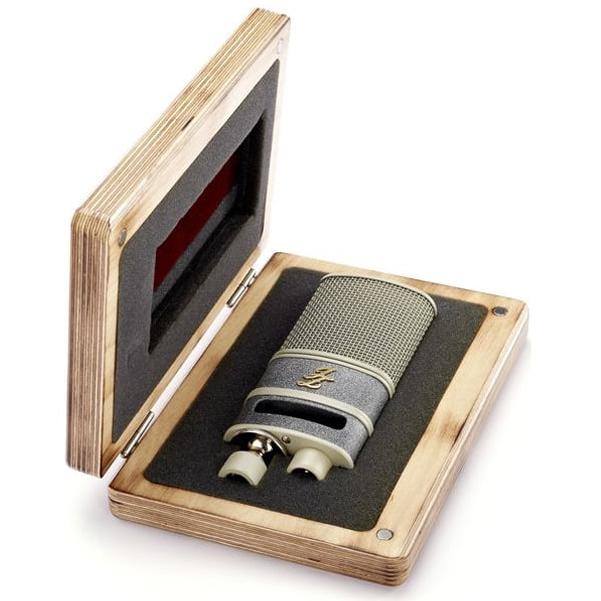

JZ Microphones Vintage 67 Condenser Microphone Overview: The heart of Vintage 67 microphone is Golden Drop 67 Capsule (GDC67) and equiped with innovative inner shock-mounting system and adjustable swivel mount, Vintage 67 microphone has perfect functionality and legendary U 67 feel at amazing price point and availability for a handcrafted and tested microphone Features: Large diaphragm condenser microphone GDC67 capsule Class A discrete electronics Fixed cardioid polar pattern Specifications: Contents: 1 x Wooden case 1 x Vintage series microphone 1 x Owners Manual Transducer type: Electrostatic Operating principal: Pressure gradient Diaphragms active diameter: 25 mm Frequency range: 20 Hz to 20 kHz Polar pattern: Cardioid Output impedance: 50 ohms Rated load impedance: 1000 ohms Suggested load impedance: > 500 ohms Sensitivity at 1000 Hz into 1000 ohms load: 22 mV/Pa S/N Ratio CCIR 468-3 weighted: 76 dB S/N Ratio DIN/IEC 651 A-weighted: 87 db-A Equivalent noise level DIN/IEC A-weighted: 6 dB-A Maximum SPL for 0.5% THD at 1000 ohm load: 134 dB Dynamic range of the microphone preamplifier: 128 db Phantom powering voltage on pins 2 & 3 of XLR: +48 V (+/-4 V) Current consumption: < 2 mA Output connector: 3-pin XLR male, gold plated contacts Signal polarity: positive toward pressure on a diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3.
