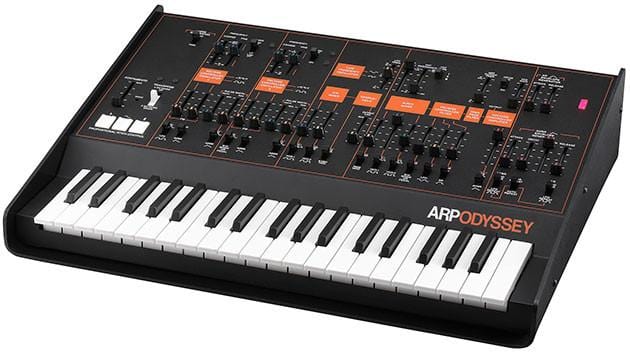

Korg Arp Odyssey-1 37 Keys Synthesizer

Korg Arp Odyssey-1 37 Keys Synthesizer

This item is out of stock


Korg has completely reproduced the original circuitry for artists looking to recreate classic sounds and explore new ones. The ARP Odyssey has been downsized to 86% of the original. Carefully selected parts are used in the familiar slider section, providing an operating feel that’s even smoother than the original.

Technical Specifications:

Keyboard : 37-note (Slimkey, No velocity sensitivity, No aftertouch)
Maximum Polyphony : 2 voices for duophonic; normally monophonic
Controllers : Transpose Positions : 2 octaves down, normal, 2 octave up
Proportional Pitch Control : b (Pitch down) Pad : about -2 / 3 octave – (Modulation) Pad
# (Pitch-up) Pad : about +2 / 3 octave
Noise Generator : Noise Spectrum Types (white and pink)
Portamento : Maximum Speed : about 0.01 msec./oct
Minimum Speed : about 1.5 sec./oct
VCO (Voltage Controlled Oscillator) : Waveforms : Sawtooth, Square, Pluse (Dynamic Pluse)
Frequency Range : VCO-1 in low freq. mode, 0.2 Hz – 20 Hz : VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz
Warm Up Drift : 1/30 semitone from turn on max
Pulse Width : 50 % – 5 %
Pulse Width Modulation : ADSR, +45 %; LFO, +15 %
Voltage Controlled Response : 1 V/oct
Maximum Frequency Shifts : LFO sin wave, +1/2 oct.; LFO square wave, +1.5 oct.; ADSR, +9 oct.; S/H, +2 oct.
* VCO-1 is low note priority, VCO-2 is high note priority.
VCF (Voltage Controlled Filter) : Types : Low pass (I : 12 dB/oct., II III : 24 dB/oct.)
Frequency Range : 16 Hz – 16 kHz
Maximum Usable Q : 30
Resonance : 1/2 – self oscillate
Voltage Controlled Response : C3 key (left edge) : 0 V, C6 key (right edge) 3 V
VCA (Voltage Controlled Amplifier) : Dynamic Range : 80 dB
Ring Modulator:
Type : Digital
Input Signal : VCO-1, VCO-2 (square wave)
Sample & Hold:
Command Sources : Keyboard or LFO trigger
Sampled Signals : VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise
ADSR Envelope Generator:
Attack Time : 5 msec. – 5 sec.
Decay Time : 10 msec. – 8 sec.
Sustain Level : 0 – 100 % or Peak
Release Time : 15 msec. – 10 sec.
AR Envelope Generator:
Attack Time : 5 msec. – 5 sec.
Release Time : 10 msec. – 8 sec.
Control Input Jacks:
Pedal : 6.3 mm monaural phone jack
Portamento Foot Switch : ?6.3 mm monaural phone jack
Audio Output Jacks:
LOW:
Connector : ?6.3 mm monaural phone jack
Maximum Output Level : -20 dBu@ 10 k? load
Output Impedance : 10 k?
HIGH:
Connector : XLR connector
Maximum Output Level : +4 dBu@ 1 k? load
Output Impedance : 330 ?
Headphones Jack:
Connector : ?6.3 mm stereo phone jack
Maximum Output Level : 50 mW + 50 mW@ 33 load
Output Impedance : 10
* Controllable by volume knob
External Audio Input (Ext Audio Input) Jack:
Connector : ?6.3 mm monaural phone jack
Maximum Input Level : -10 dBu
Input Impedance : 22 k?
MIDI Connector:
IN
USB Connector:
Type B
CV IN/OUT Jacks:
Keyboard CV (IN/OUT) : 1 V/oct.
Connector : 3.5 mm monaural phone jack
GATE IN/OUT Jacks:
GATE IN : +3 V (minimum)
GATE OUT : +10 V, key down; 0 V all keys up
Connector : 3.5 mm monaural phone jack
TRIG IN/OUT Jacks:
TRIG IN : +3 V pulse min., 10 sec. Duration minimum
TRIG OUT : +10 V pulse on key depression, 10 sec. Duration
Connector : 3.5 mm monaural phone jack
Power Supply : AC adapter jack (DC 9 V)
Power Consumption : 6.5 W
Dimensions (W x D x H) : 502 x 380 x 120 mm / 19.76″ x 14.96″ x 4.72″
Weight : 5 kg / 11.02 lbs

Accessories:
AC adapter, phone cable, mini-phone cable, owner’s manual, dedicated semi-hard case

Options:
VP-10 Volume Pedal, PS-1/PS-3 Pedal Switch
