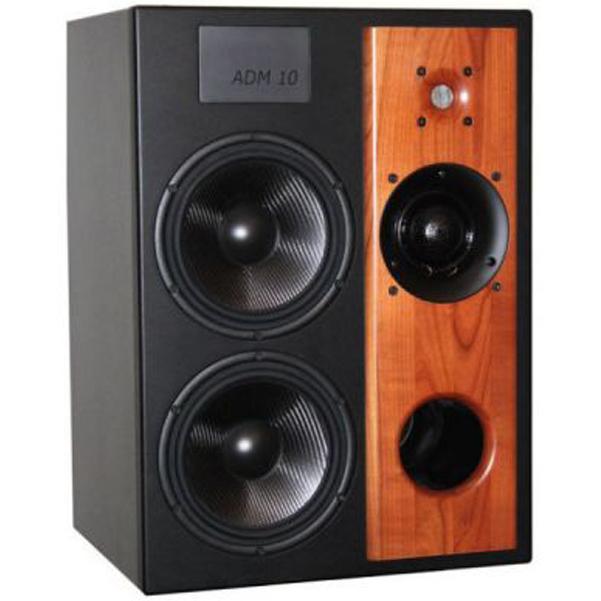

KS Digital ADM-10 Studio Monitor - Black Overview: The ADM10 is designed as the main monitor for the midfield or wall mounting The ADM10 can be used as the sole reference, especially in professional recording studios, in broadcasting or mastering.
Whether for wall mounting or free-standing installation, the ADM10 ensures optimum control at the listening position with its digital equalization for every listening and room situation Both the calibration of the FIR filter to the listening position as well as a quick adjustment by means of 5 user EQs by the user is possible.
This is done either on the loudspeaker itself, a cable-bound Active Remote Control (ARC) or software-supported via laptop or PC The special feature lies in the regulation of the output stage amplifiers of the MOSFET power amplifiers.
This means you control the ADM10 with fullscale level, thus with an optimal word range, and regulates the desired volume without digital word reduction in the analog output stage Specifications: AD / DA converter: 27 bit sigma delta, 64 x oversampling Digital IN, OUT: AES3 format, 32 - 96 (110) KHz, 192 KHz prepared Analog IN, OUT: XLR-balanced, active bypass connector DSP: 60MHz 32 bit floatingpoint, 1500dB dynamic Process: FIRTEC equalization, FIR crossover, limiter, 2 FIR presets, 5 user filter patent: 19823110 Room equalization: 5 peakfilter and FIRTEC system-equalization Chassis: 1" radiator, 8" carboncone Amplifier: 200 W / 100 W MOSFET technology SPL: 122 dB peak Remote control: Gain control and input switch (optional) Frequency range: 38 - 22000 Hz (+/- 3 dB) Special: X.1 setup with common gain control Dimensions: 62 x 45 x 40 cm Weight: 28 kg.
