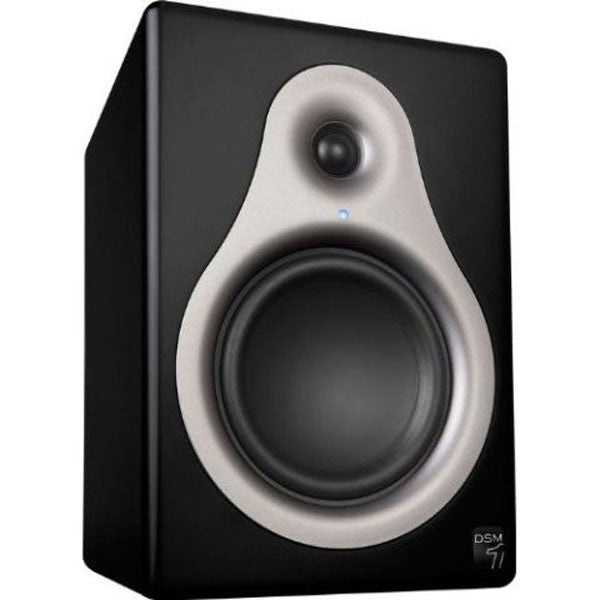

M-Audio DSM1 UK Active Studio Monitor Single

Shop Brand : M-Audio

  • Buy M-Audio DSM1 UK Active Studio Monitor (Single) online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

    Buy M-Audio DSM1 UK Active Studio Monitor (Single) online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

    M-Audio DSM1 UK Active Studio Monitor (Single).

    The Studiophile DSM1 reference monitor is engineered to provide superior monitoring to discerning audio professionals. The design results from collaboration between two powerhouse companies in music technology: M-Audio, the top U.S. manufacturer of reference monitors, and Digidesign, the industry leader in DSP technology. The DSM1 monitor features DSP-based crossover management, an assortment of onboard digital EQ controls, proprietary high-grade driver designs, and analog and digital inputs for high-resolution audio up to 24-bit/192kHz. With stunning accuracy, clarity and dynamic range, the Studiophile DSM1 monitor makes world-class reference technology accessible to a broad array of creative and professional environments.

    M-Audio DSM1 UK Features:

    • Onboard DSP manages the complex digital crossover for pristine imaging
    • DSP-based EQ and Acoustic Space Controls optimize frequency response for any production environment
    • Bass-reflex port delivers controlled extended bass response
    • High-density cabinet yields good damping and reduced acoustic interference
    • Broad range of onboard digital EQ controls.

    M-Audio DSM1 UK Specifications:

    • Frequency response: 49Hz-27kHz
    • Peak SPL at 1 meter: 110dB
    • Low-frequency driver: 6.5” (165.1 mm) domeless anodized aluminum cone
    • High-frequency driver: 1” (25.4 mm) soft Teteron dome with Neodymium magnet and ferrofluid cooling
    • Crossover frequency: 2.7kHz @ 24dB/octave
    • HF shelf: +1.5dB, -1.5dB, -3.0dB
    • Mid EQ: +1.5dB, -1.5dB, -3.0dB
    • High-pass filter: 40Hz, 60Hz, 80Hz, 100Hz @ 12dB/octave
    • Acoustic Space Control filter: -1.5dB, -3.0dB, -4.5dB
    • Desk EQ Filter 1: -1.0dB, -2.0dB, -3.0dB @ 220Hz
    • Desk EQ Filter 2: -1.0dB, -2.0dB, -3.0dB @ 175Hz
    • Desk EQ Filter 3: -1.0dB, -2.0dB, -3.0dB @ 200Hz
    • Analog inputs: XLR balanced and ¼” balanced
    • Digital inputs: S/PDIF and AES/EBU
    • Input impedance: 20k ohm
    • Input sensitivity: +4dBu yields 90dB @ 1 meter (trim level set to 0)
    • Gain trim: volume trim from -22dB to +10dB
    • Analog-to-digital specifications
    • Maximum input level: 18dBu
    • Signal-to-noise ratio: 102dB (A-weighted)
    • THN + noise:conversion rate: 96kHz
    • Digital power amplifier
    • Output power (1% THD): LF: 100 watts, HF: 80 watts
    • THD + noise (10 watts, 1kHz):
    • Signal-to-noise ratio: 100dB (A-weighted)
    • Frequency response (+0, -3dB): 20Hz-40kHz
    • Efficiency: > 90%
    • Dimensions: 12.8” (325.5 mm) x 9” (228.7 mm) x 10.3” (261.5 mm).
