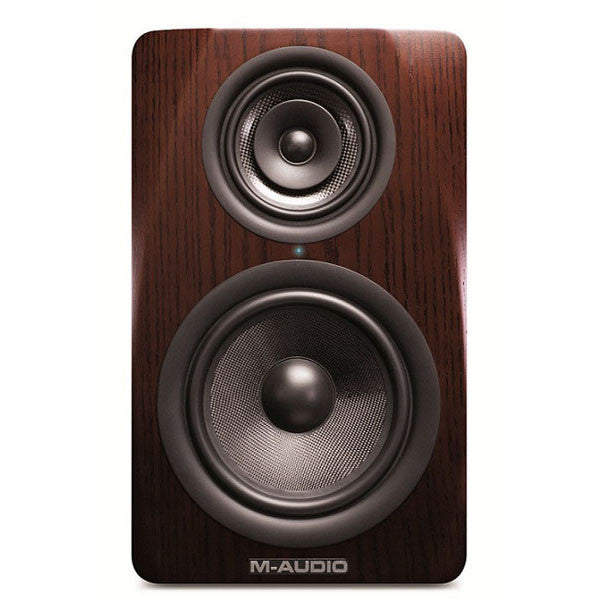

M-Audio M3-8 - Three-Way Active Studio Monitor

Shop Brand : M-Audio

  • M-Audio M3-8 - Three-Way Active Studio Monitor

    Amazing Three-Way Fidelity

    Step up to superior three-way sound with the M3-8 studio monitor from M-Audio. Savor the improved fidelity, enhanced imaging, and super-wide sweet spot of this exceptional three-way studio monitor as you mix your sessions and laydown tracks. Track and mix with the enhanced accuracy and superior imaging that only a three-way monitor can provide. Using an efficient inline design, the space-saving M3-8 Studio Reference Monitors provide truly spectacular three-way sound in the same space as a standard two-way monitor.

    Three Is Key

    Three individual amplifiers provide power to each of the three speaker elements. A total of 220 Watts of Class A/B amplification empowers the M3-8 with ample headroom for even the loudest mixes. Finely tuned crossovers deliver rich tonality across the entire frequency spectrum. The powerful three-band EQ—and a switchable low-cut filter—allow you to shape the sound to match your listening environment. Pinhole-mounted blue LEDs provide an easy-to-use visual aide for perfect speaker placement. The result is an outstanding monitor able to perform in the most critical of listening environments.

    Twin-Line Design

    The efficient M3-8 design allows the mid- and high-frequency drivers to be mounted inline. By delivering sound along the same focal plane, the M3-8 speakers deliver improved time-alignment for fatigue-free listening. Lightweight woven Kevlar endows the 8" low-frequency driver and 5" mid-range driver with strength and reliability. The 1" silk dome tweeter offers integrated waveguides to provide increased clarity. In addition to the attractive real wood baffle, the cabinet provides tuned bass porting and optimized internal bracing to produce the highest levels of fidelity.

    M-Audio M3-8 Features:

    • Real wood baffle; optimized internal bracing
    • Inline mid- & high-frequency drivers offer superior imaging
    • 8" woven Kevlar low-frequency driver
    • 5" woven Kevlar mid-frequency driver
    • 1" silk dome tweeter with integrated waveguide
    • Tri-amp Class A/B power, 220 Watts total
    • XLR and 1/4" balanced inputs; RCA unbalanced input
    • 3-band EQ with bypass; switchable low-cut filter
    • Rear-mounted volume and power control.

    M-Audio M3-8 Specifications:

    • Polarity: Positive signal at + input produces outward LF cone displacement
    • Input impedance: 20 k Ω balanced, 10 k Ω unbalanced
    • Input sensitivity: 85 mV pink noise input produces 90 dBA output SPL at 1 meter with volume control at maximum
    • Protection: Output current limiting; over-temperature; transient on/off protection to prevent speaker "pops"; subsonic filter; external mains fuse
    • Cabinet: Wood veneer front baffle with vinyl-laminated cabinet
    • Size (W x H x D): 10.6" x 17.1" x 11.2"; 268 mm x 434 mm x 285 mm
    • Weight: 28.2 lbs.; 12.8 kg

    Frequency response:

    • 40 Hz ~ 20 kHz

    Crossover frequency:

    • Low-Mid: 450 Hz
    • Mid-High: 3.9 kHz

    Amplifier Power:

    • Low-frequency amplifier power: 150 W
    • Mid-frequency amplifier power: 35 W
    • High-frequency amplifier power: 35 W
    • LF cutoff switch: Flat, 60 Hz, 80 Hz

    Equalizer Controls:

    • LF: ± 6 dB boost/cut at 100 Hz
    • MF: ± 6 dB boost/cut at 1 kHz
    • HF: ± 6 dB boost/cut at 10 kHz
    • Bypass switch.
