Marantz Rack Mix 12 12 Channel Line Mixer with Priority

LMarantz Rack Mix 12 12 Channel Line Mixer with Priority Overview: The Rack Mix 12 is a 1U rack-mounted 12-channel mixer that can solve countless audio challenges It features 6 mic/line combination inputs (HDHQ™ Denon-Marantz proprietary mic pre’s) each with switchable phantom power and 6 additional line-level inputs.

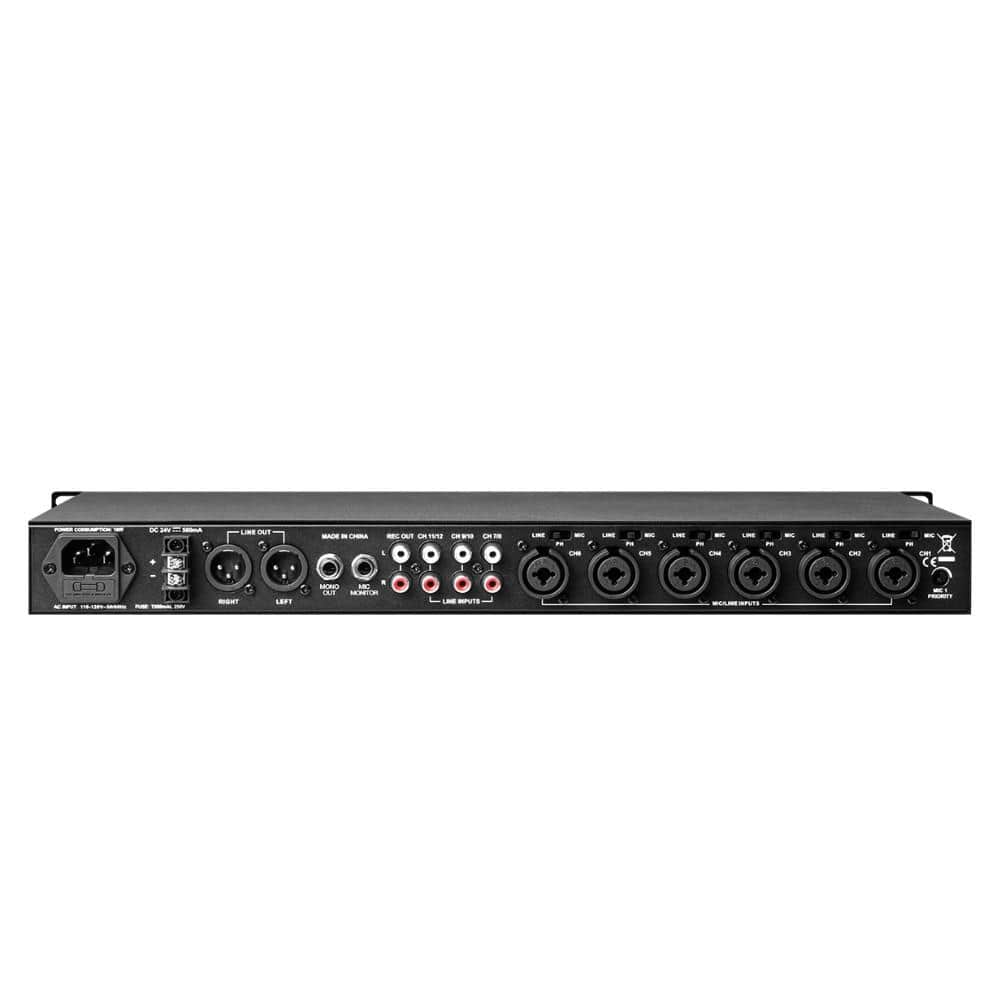

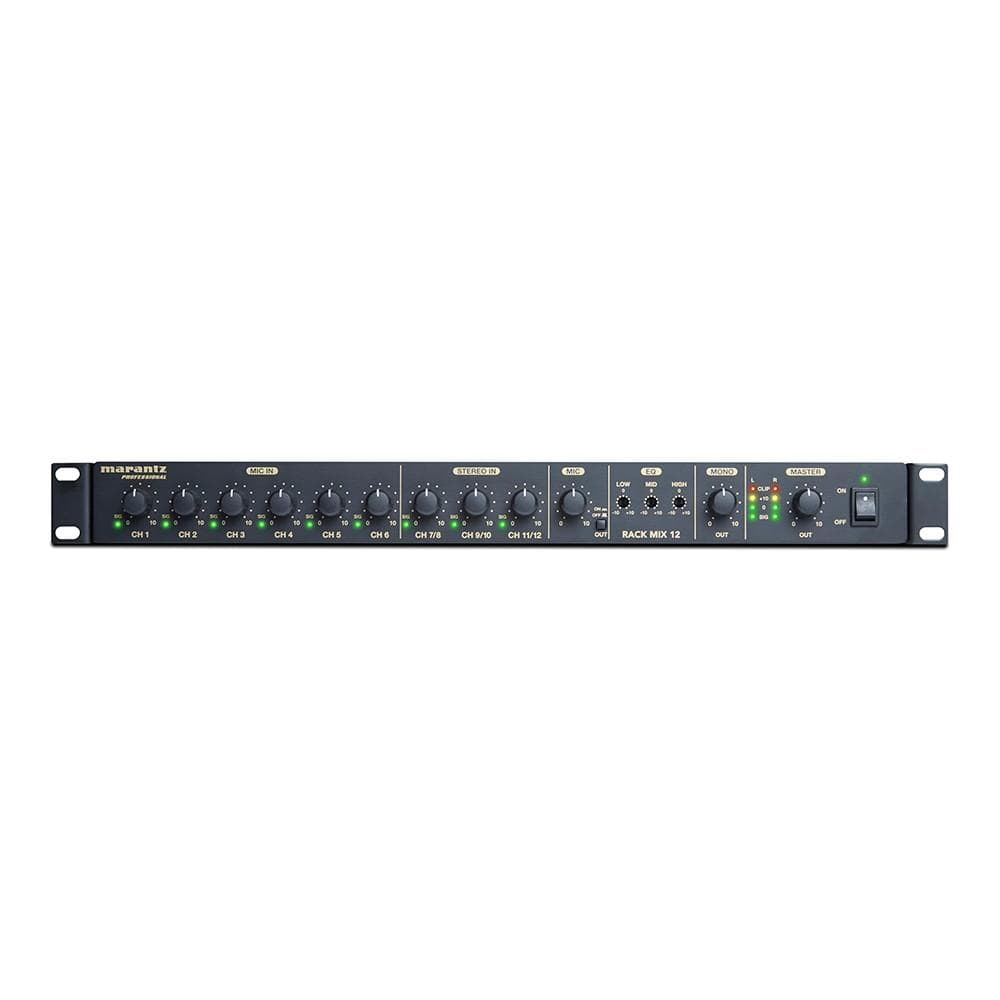

It has balanced XLR outputs, a ¼-inch (6.3mm) mono output that can be used to connect the Rack Mix 12 to a remote mixer, a pair of RCA stereo outputs to connect to a remote recording device, and ¼-inch (6.3mm) mic monitoring port that can be used to monitor the mics’ signals The Rack Mix 12 provides individual level control for all inputs in addition to level control for the mono output port and a master level control.

Rounding off the feature set is a 3-level equalizer and a controlled priority for Mic/Line 1 It can be powered from standard AC or a 24V DC power source, inviting it to be used in a variey of applications; everything from a classtroom to a tour bus.

Features: 6 HDHQ Combination inputs with MIC, Phantom and Line selector switches 6 mono (3 stereo) RCA Inputs Mic monitor ¼” output for private listening to all mic inputs Balanced XLR line outputs Mono ¼” line output can be used to feed audio to external recording device AC or 24V DC power inputs Mic 1 Priority Control Master and Individual level controls 1U rack mountable Specifications: Microphone Input - 6 Balanced XLR Connectors (Channels 1–6) Frequency Response: 20 Hz - 22 kHz THD+N: < 0.03% @ 1 kHz Sensitivity: -40 dBu Maximum Input: -19 dBu Maximum Voltage Gain (Mic Input to Rec Out): 50 dB Maximum Voltage Gain (Mic Input to Line Out, Mic Out & Mono Out): 60 dB Signal-to-Noise Ratio: > 103 dB Phantom Power: 18–21 V, switch control Line Inputs - 6 Balanced XLR Connectors (Channels 1–6) Frequency Response: 20 Hz - 22 kHz THD+N: < 0.03% @ 1 kHz Sensitivity: 0 dBu Maximum Input: +21 dBu Maximum Voltage Gain (Mic Input to Rec Out): 10 dB Maximum Voltage Gain (Mic Input to Line Out, Mic Out & Mono Out): 20 dB Signal-to-Noise Ratio: > 103 dB Line Inputs - Stereo Balanced RCA Connectors (Channels 7/8-11/12) Frequency Response: 20 Hz - 22 kHz THD+N: < 0.03% @ 1 kHz Sensitivity: +10 dBu Maximum Input: +21 dBu Maximum Voltage Gain (Line Input to Line Out): 10dB Maximum Voltage Gain (Line Input to Rec Out): 0dB Maximum Voltage Gain (Line Input to Mono Out): 4dB Signal-to-Noise Ratio: > 103 dB Impedance Mic/Line Input: 1.4 kΩ Line Input: > 10 kΩ All Outputs: 120 Ω Equalizer High: +15 dB @ 12 kHz Mid: +12 dB @ 2.5 kHz Low: +15 dB @ 80 Hz Crosstalk Input to Output: < -82 dB @ 1 kHz Adjacent Inputs (Channels 1–6): < -70 dB @ 1 kHz Adjacent Inputs (Channels 7/8–11/12): < -68 dB @ 1 kHz Main Mix Output Line Output: 0 dBu (+2 dBu), balanced Mic Output, Mono Output: 0 dBu (+2 dBu), unbalanced Maximum Output: +21 dBu balanced/unbalanced, 1/4” (6.35 mm) jacks Noise (Bus): < -83 dB @ 20 Hz – 22 kHz General Power connection: IEC Input Voltage: 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V Dimensions: (W x D x H): 19.0” x 7.7” x 1.7” (483 x 195 x 44 mm) Weight: 6.4 lbs (2.9 kg).
