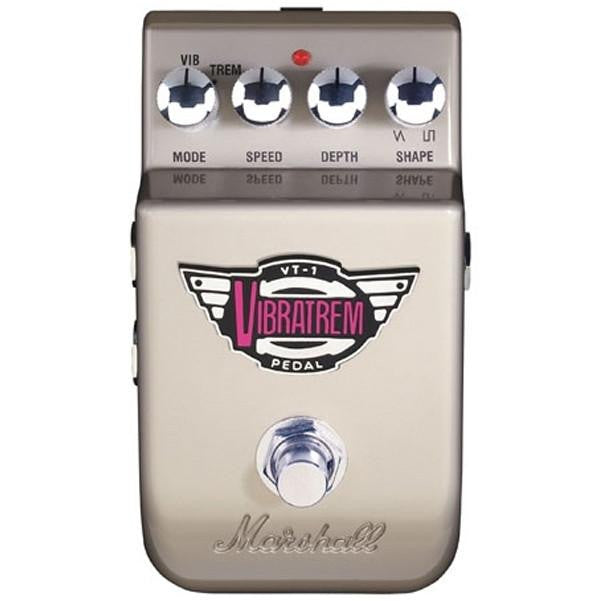

Marshall VT-01 Vibratrem Guitar Effect Pedal Overview: The Vibratrem features a passive bypass for the main signal path to ensure complete tonal integrity and has a quality of tone matched only by its versatility Features: ‘Out 2’ Jack Socket The Vibratrem is a stereo footpedal.
If you are using the Vibratrem in a stereo configuration this Jack socket is for your second output ‘Out 1 - Mono’ Jack Socket This is the main output of the Vibratrem and is for connection to the amplifier or to another effects pedal.
Mode This allows you to switch between the Vibratrem's two modes, Vibrato and Tremolo Tremolo - refers to change in signal volume.
In Tremolo mode the signal increases and decreases at a role governed by the speed control The tremolo on the VT-1 is specially designed to recreate the natural swell and decay of a valve-based tremolo as found on many vintage valve amplifiers.
Vibrato - By phase shifting the effected signal with respect to direct, uneffected signal, a subtle pitch shifting vibrato is created The vibrato on the VT-1 has been developed to closely mimic the vibrato settings on certain vintage valve amplifiers.
Note: the stereo output remains unchanged (i.e tremolo) in vibrato mode.
Speed Alters the speed of the modulation of the effect Turn the control anti-clockwise and the effect will slow down.
Conversely, turn the control clockwise and the modulation of the effect will increase in speed DC Input For input of a 9 V DC adaptor should you not wish to use batteries.
LED Indicates when the Vibratrem is in operation Depth Controls the depth of the effect.
Turn the control anti-clockwise and the effect will be more subtle, turn the control clockwise and the modulation of the effect will be increased Shape The Shape control affects the modulation waveform of the VT-1.
In short, the shape of the modulation waveform determines the manner in which the VT-1 circuitry turns the signal level up and down in creating the tremolo and shifts phase in the case of vibrato The triangle wave ( ) creates a gradual swelling tremolo and subtly phasing vibrato.
The square wave ( ) produces a more abrupt change in volume when Tremolo mode is engaged and a ‘de-tuned’ pitch shifting vibrato in Vibrato mode In Jack This is the input jack, for connection to your guitar or to another effects pedal.
Foot Switch For switching the Vibratrem on and off Specifications: Controls: Vibrato & Tremolo Mode Switch, Speed Control, Depth Control, Wave Shape Control Features: Solid Metal Casing, Passive Bypass, Second Output For Stereo Spread Power: 9v Jack Sockets: Input Jack: Guitar Input, Output Jack 1: Left/Bypass, Output Jack 2: Right Input Impedance: > 1m0hms Output Load Impedance: <1 K0hms Dimensions In Mm (W X H X D): 120 X 65 X 55 Weight: 510g Made in Vietnam.
