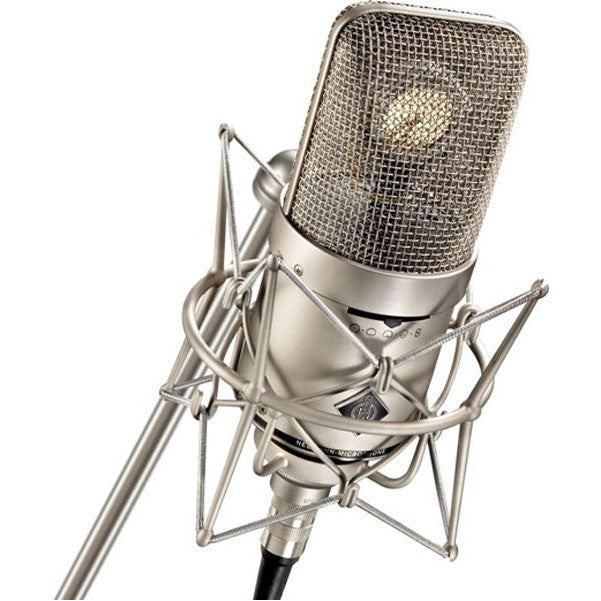

Neumann M 149 Tube Microphone
The Neumann M 149 Tube Switchable Tube Microphone is a variable dual-diaphragm microphone. The K 49 capsule, well known from the legendary U 47 and M 49 microphones,
is followed by a tube functioning as an impedance converter. In contrast to earlier concepts utilizing a transformer, the tube is complemented with a
transformerless output circuit design. The M 149 Tube can thus feed long microphone cables without any coloration.
Two slide switches are located below the large, acoustically-open headgrille. The switch at the front allows selection one of nine directional patterns.
The slide switch at the rear operates a seven-step high pass filter, allowing very fine adjustment of the cut-off frequency.
Transformerless Tube Output Circuitry
Transformer-less output circuit, triode tube and integrated amplifier provide a signal output stage featuring very low self noise and distortion.
The final output stage is an integrated amplifier that provides a very high output signal and the frequency response curve is unaffected by high,
transient signal levels resulting in warm, transparent signal reproduction.
Exceptional Signal Reproduction
Utilizing the legendary K49 capsule - well known from the legendary U47 and M49 microphones - as well as a modern tube and high quality amplifier output stage,
the M149 Tube delivers exceptional signal character and response.
A frequency response of 20Hz to 20kHz and SPL rating of 136dB
9 Selectable Polar Patterns
Omnidirectional, wide angle cardioid, cardioid, hypercardioid and figure 8 polar patterns are provided. Intermediate positions of each are located in between the pattern designations.
Low Frequency Roll-Off Switch
A 7-position low frequency roll-off switch is located at the rear of the microphone. It selects a high-pass filter, advancing in half-octave steps between 20 Hz and 160 Hz (-3dB)
Shock Mounted Capsule
The capsule is mounted elastically inside the head to minimize structure borne noise.
The elastic EA170 microphone shock-mount is included and even further minimizes noise caused by handling.
Neumann M 149 Includes:
- M 149 Tube Microphone
- N 149 A Power supply incl. power cable
- KT 8 Connecting cable
- EA 170 Elastic suspension
- Aluminium case
- Dust cover.
Neumann M 149 Specifications:
- Microphone Type: Tube Condenser
- Polar Pattern(s): Omnidirectional, Wide Angle Cardioid, Cardioid, Hypercardioid, Figure-8 Plus One Intermediate Position Each
- Frequency Response: 20Hz-20kHz
- Output Impedance: 50 ohms
- Signal to Noise Ratio: 78/81/83 dB (A-weighted)
- Self Noise: 16/13/11 dB-A (A-weighted)
- Low Cut Filter: Seven-step High-Pass Filter
- Pads: No Pad
- Length: 7.9"
- Width: 2.76"
- Depth: 2.76"
- Weight: 1.61 lbs.
