Neumann M147 Tube Single Microphone

Neumann M147 Tube Single Microphone

EMI starts from Rs. 7,024.88. Click here for options.


Buy Neumann M147 Tube Single Microphone online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

Neumann M147 Tube Single Microphone

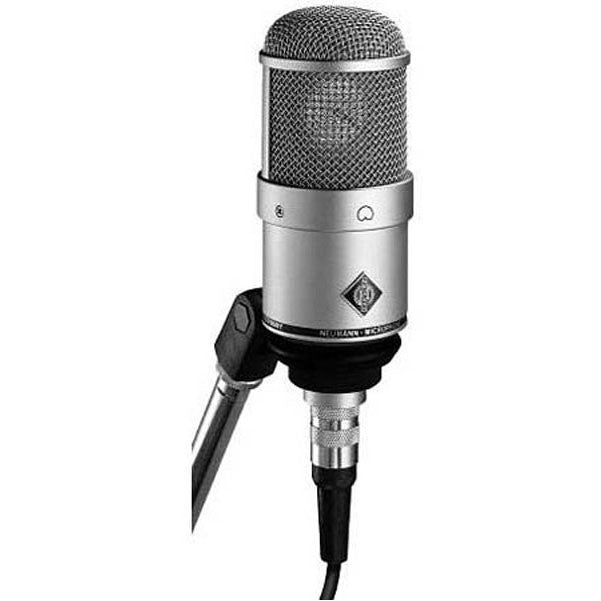

The Neumann M 147 Tube Microphone is a vacuum tube large diaphragm condenser microphone with a cardioid polar pattern.

The pressure gradient, dual diaphragm capsule is the K 47/49, inherited from the legendary U 47 and M 49 microphones.

Following the tube is a transformerless output circuit providing low self-noise and high output gain without adding color to the signal.

The M 147 Tube delivers high output levels, allowing the microphone to feed cables up to 300m in length without signal degradation.

The side address capsule features a cardioid polar pattern which is effective in minimizing ambiance and noise coming from the off-axis sections of the microphone.

The capsule features a flat frequency response to the upper midrange, and a boost of up to 3dB above 2kHz.

The M 147 Tube is a suitable microphone for recording vocals and general instruments such as strings, piano and wind instruments.

Tube Circuitry

The M 147 Tube features a combination of solid state and vacuum tube circuitry. The Vacuum tube design provides a type of warmth and definition not often found in solid state circuitry.

K 47/49 Dual Diaphragm

Featuring the K 47/49 dual diaphragm, adapted from the legendary M 49 and U 47 Tube microphones. The M 147 maintains the level of sonic character at a modest price point.

Quality Output Circuitry

The Transformerless output design provides a low noise floor and output gain high enough to feed cables up to 300m in length without degradation in signal.

Cardioid Polar Pattern

The cardioid polar pattern effectively minimizes off-axis noise caused by room ambiance, instruments, monitors etc. The pattern offers a more generous pick up area with lower range frequencies.

Includes:

  • M 147 Tube microphone
  • SG 2 swivel mount
  • Wooden box.

Neumann M147 Specifications:

  • Transducer: Pressure Gradient Condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 20 Hz - 20 kHz
  • Dynamic Range (Typical): 102 dB, (THD Less Than 5%)
  • Signal-to-Noise Ratio: 70 dB, (CCIR 468-3),
  • 82 dB, (DIN/IEC 651)
  • Maximum Input Sound Level: 134 dB, (@ 1 kHz, THD Less than 5%)
  • Power Requirements: N 149-A Power Supply Included
  • Output Impedance: 50 Ohms
  • Output Connectors: XLR-3M Type (Output from Power Supply)
  • Pad: None
  • Low Frequency Roll-Off: None
  • Dimensions: 5.6 x 2.2" (142.24 x 55.88mm) LxD
  • Weight: 16.2 oz (459g).

Shop, buy and review Neumann M147 Tube Single Microphone at the lowest discount price in India with free shipping, EMI from authorized offical dealer with moneyback guarantee.
