Neumann TLM 49 Large Diaphragm Condenser Microphone

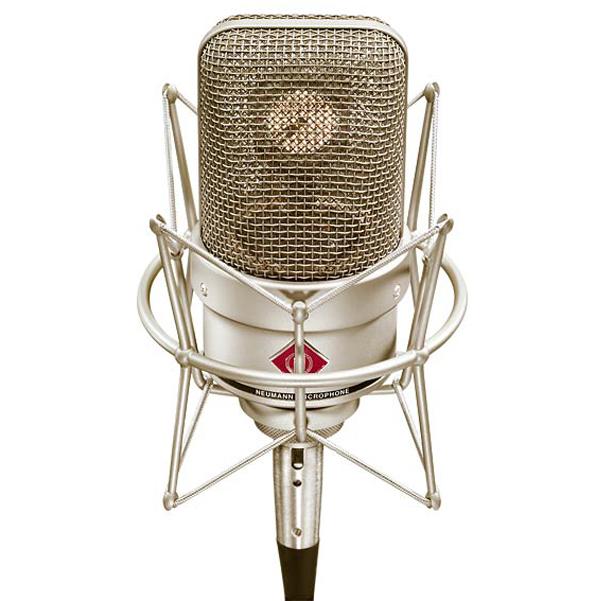

Neumann TLM 49 Large Diaphragm Condenser Microphone Overview: The TLM 49 is a large-diaphragm studio microphone with a cardioid directional characteristic and a warm sound which is especially optimized for vocal performance It is supplied as a set, with an elastic suspension.

The design is inspired by that of the legendary M 49 and M 50 microphones of the 1950s Naturally the TLM 49 has the typical Neumann fine matte nickel finish.

The “sound design” is also oriented toward that of the M 49 and the U 47 By combining its retro look with proven Neumann transformerless circuit technology, this microphone ensures low self-noise and the use of high gain levels.

Applications During the development phase, the sound was adjusted in extensive practical tests, so as to make the TLM 49 ideal particularly for vocal and speech recording However, in addition, it is also suitable for instrumental applications in professional production studios and demanding home recordings.

Polar pattern The large-diaphragm capsule of the TLM 49 provides a cardioid directional characteristic with a tendency toward supercardioid, due to the special capsule construction Following the example of the M 49, high frequencies are more directional.

The capsule diameter is 34 mm The front of the microphone is indicated by the red Neumann logo on the microphone body.

The capsule is oriented so that the microphone is addressed from the front Acoustic features The TLM 49 uses the famous K 47 capsule, which was also used in the M 49 and the U 47.

The capsule has a linear frequency response up to the upper mid-range Above 2 kHz there is a gentle presence boost up to 3 dB.

The capsule is enclosed by a large microphone headgrille, which is acoustically very open and is hence neutral with regard to the sound Electrical features The letters TLM stand for “transformerless microphone”.

With TLM technology the usual output transformer is replaced by an electronic circuit As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.

Noise signals which affect the balanced modulation line are therefore effectively suppressed The microphone can operate at sound pressure levels of up to 129 dB without distortion, and provides a dynamic range of 117 dB (A-weighted).

Operational safety The entire interior structure is mounted elastically, to prevent the transmission of structure-borne noise In addition, the capsule is mounted with a rubber shock mount.

Due to the wide frequency response, the TLM 49 can also transmit extremely low-frequency signals without coloration Of course this means that the microphone is also sensitive to noise signals such as vibration noise and wind noise in this frequency range.

The TLM 49 is therefore supplied with the elastic suspension EA 3, which effectively protects the microphone from structure-borne noise If the microphone is addressed at extremely close range, pop screen PS 15 or PS 20 a can be used in front of the microphone to provide protection against plosive sounds.

Features: Sound profile optimized for vocal performance Pressure gradient transducer with the large-diaphragm capsule of the legendary U 47 Cardioid characteristic Retro design Transformerless output circuitry Acoustically very open wire mesh headgrille Complete set with elastic suspension Specifications: Acoustical operating principle: Pressure gradient transducer Directional pattern: Cardioid Frequency range: 20 Hz .. 20 kHz Sensitivity at 1 kHz into 1 kohm: 13 mV/Pa Rated impedance: 50 ohms Rated load impedance: 1 kohms Equivalent noise level, CCIR1): 23 dB Equivalent noise level, A-weighted1): 12 dB-A Signal-to-noise ratio, CCIR1) (rel.

94 dB SPL): 71 dB Signal-to-noise ratio, A-weighted1) (rel 94 dB SPL): 82 dB Maximum SPL for THD < 0.5 %2): 110 dB Maximum SPL for THD < 5 %2): 129 dB Maximum output voltage for THD < 5%2): -1 dBu Supply voltage (P48, IEC 61938): 48 V ± 4 V Current consumption (P48, IEC 61938): 3.2 mA Matching connector: XLR 3F Weight: 825 g Diameter: 78 mm Length: 165 mm Made in Germany.
