Neumann USM 69 i MT Variable Pattern Stereo Microphone

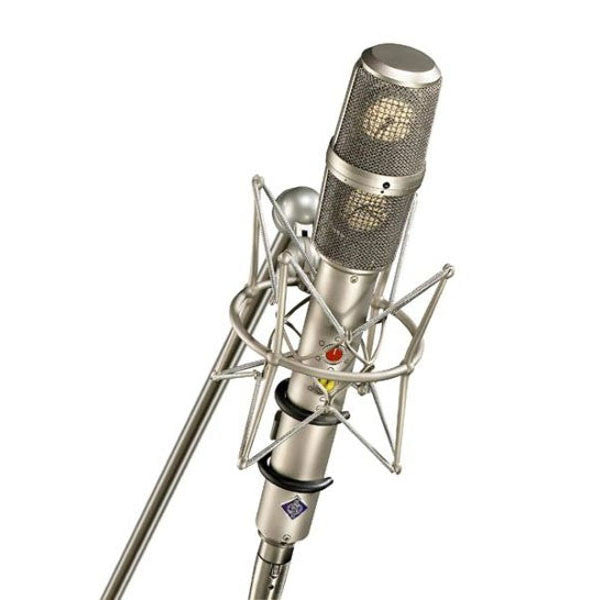

The USM 69 i MT Variable Pattern Stereo Microphone is a dual capsule stereo microphone with two K67 multi-pattern capsules and independent amplifier stages operating independently from each other. The capsules are stacked and rotated at a 270 degree angle for M/S and X/Y style stereo capturing.

Each capsule features individually switchable omnidirectional, cardioid, figure-8, hypercardioid and wide-angle cardioid polar patterns for the ultimate in flexible audio capturing. The USM 69 i MT features independent output stages allowing the capsules to function as individual mono microphones for audio backup capturing applications. The USM 69 i MT is a powerful stereo microphone for crucial studio recording of vocals and instruments.

Stereo M/S and X/Y Capturing

The USM 69 i MT features two independent capsules and amplifier stages. The capsules are stacked in a 270 degree angle for close proximity X/Y and M/S style capturing of vocals and instruments.

Mono Operation

Independent amplifier stages allows for independent mono operation for audio backup capturing.

Flexible Polar Patterns

Each capsule features switchable omnidirectional, cardioid, figure-8, hypercardioid and wide-angle cardioid polar patterns.

Excellent Audio Quality

The USM 69 i MT delivers Neumann's pristine audio quality and low noise floor, and is an ideal choice for ultra-critical studio vocal/instrument recording.

Neumann USM 69 i MT Specifications:

  • Acoustical operating principle Pressure gradient transducer

  • Direct ional pattern Omnidirectional, wide-angle cardioid, cardioid, hypercardioid, figure-8

  • Frequency range 20 Hz ... 20 kHz

  • Sensitivity at 1 kHz into 1 kohm 13 mV/Pa

  • Rated impedance 150 ohms

  • Rated load impedance 1 kohms

  • Equivalent noise level, CCIR1) 24 dB

  • Equivalent noise level, A-weighted1) 13 dB-A

  • Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) 70 dB

  • Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) 81 dB

  • Maximum SPL for THD 0.5%2) 132 dB

  • Maximum output voltage 3 dBu

  • Dynamic range of the microphone amplifier (A-weighted) 119 dB

  • Supply voltage (P48, IEC 61938) 48 V ± 4 V

  • Current consumption (P48, IEC 61938) 2 x 0.7 mA

  • Matching connector XLR5F

  • Weight 510 g

  • Diameter 30 + 48 mm

  • Length 293 mm
