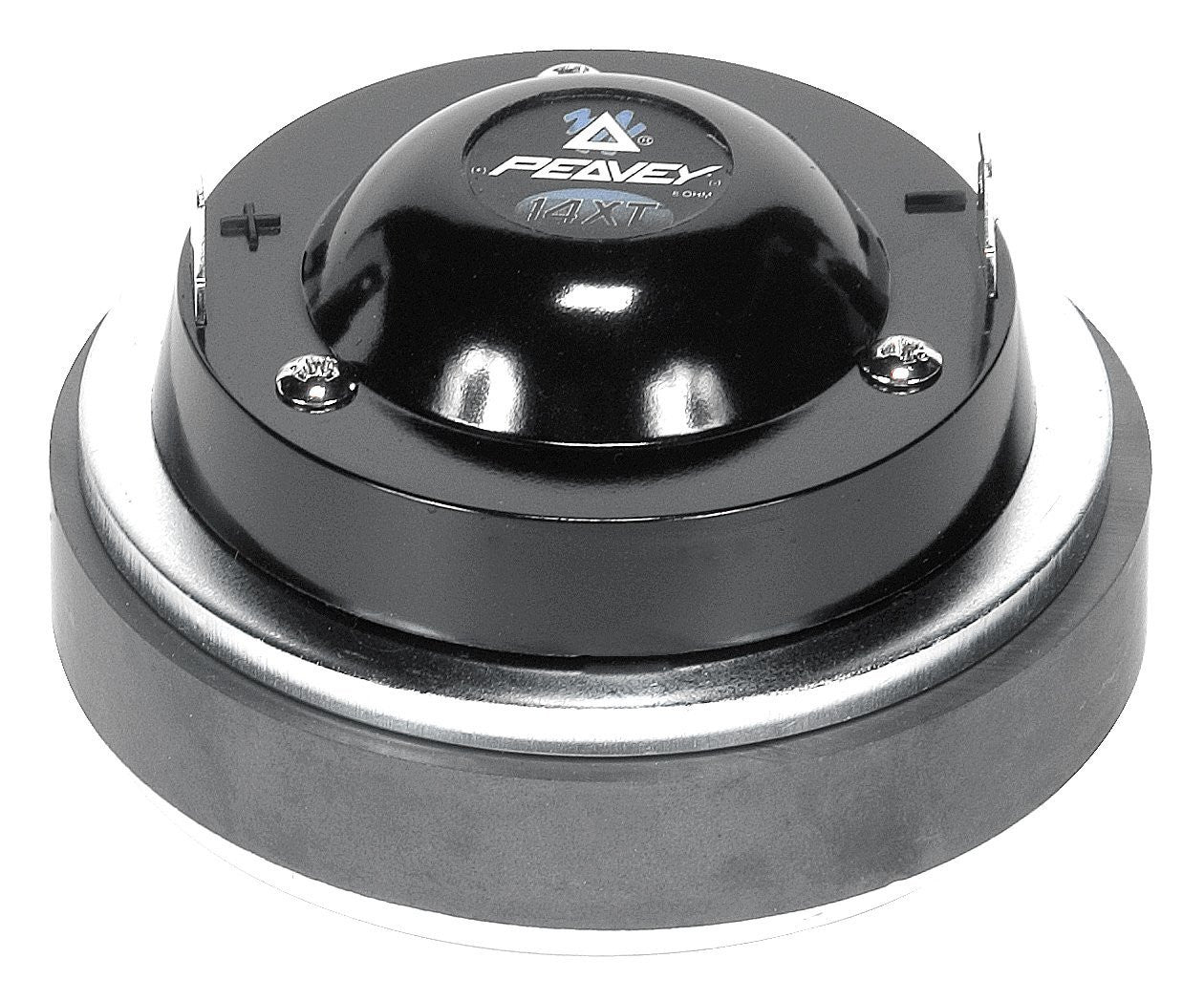

Peavey 14XT High Frequency Compression Driver


EMI starts from Rs. 270.83. Click here for options.

Shop Brand : Peavey
Shop All: Parts Spares
SKU : PEAVEY14XT

  • Peavey 14XT High Frequency Compression Driver

    This is a replacement diaphragm kit for the Peavey 14XT compression driver.

    Features:
    • 1.4"
    • Throat Parameter: 1" / 25 mm
    • Nominal Impedance: 8 Ohms
    • Minimum Impedance: 7.1 Ohms
    • DC Resistance: 6.8 Ohms
    • Power Capacity 1000 Hz to 20,000 Hz: 100 W peak 50 W program 25 W continuous
    • Sensitivity: 102 dB SPL 1 Watt at 1 meter On-axis on 90º H x 45º V horn
    • Nominal Efficiency: 30%
    • Frequency Response: 1 kHz to 18,000 Hz
    • Recommended Crossover: 1,800 Hz at 12 dB / Octave
    • Lowest Recommended Crossover: 1,000 Hz at 12 dB / Octave
    • Diaphragm: Commercially pure titanium
    • Voice Coil Diameter: 1.4" / 35.5 mm
    • Voice Coil Material: Edge-wound ribbon with high temp Kapton bobbin
    • Flux Density: 11,500 gauss (1.15T)
    • Dimensions: 3.500" (91.44 mm) diameter x 2.75" (69.85 mm) depth
    • Horn Coupling Diameter: 1.0" (25.4 mm)
    • Horn Coupling Threads: Standard 1 3/8" - 18"
