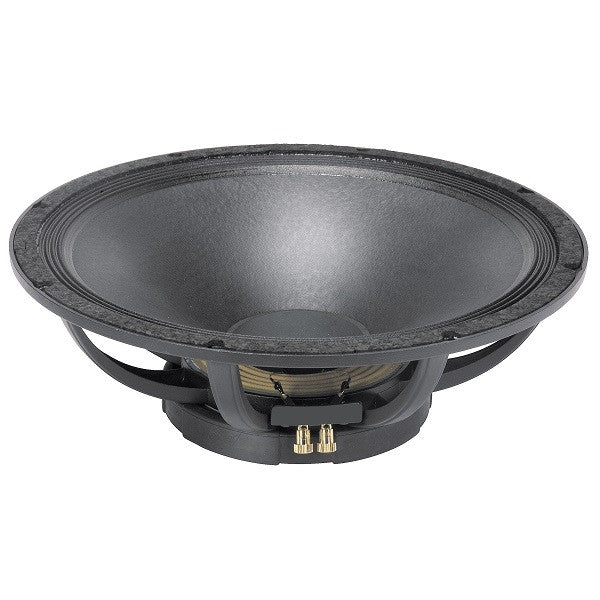

Peavey 1808-8 SPS BWX 18" Woofer Speaker Driver


EMI starts from Rs. 866.61. Click here for options.

Shop Brand : Peavey
Shop All: Woofers
SKU : PEAVEY18088SPSBWX

  • High efficiency 18" woofer that excels in both vented and horn-loaded bass enclosures. Designed to work in small vented enclosures with surprising bass extension and very high output. Great for DJs and musical instrument applications. Peavey item 00560580.

    Specifications:

    • Nominal Diameter: 18"
    • Power Handling (RMS): 500 Watts
    • Power Handling (max): 1000 Watts
    • Impedance: 8 ohms
    • Frequency Response: 35 to 1,000 Hz
    • Sensitivity: 97.5 dB 1W/1m
    • Voice Coil Diameter: 4"
    • # Mounting Holes: 8
    • Sealed Volume: 12.33 ft.³
    • Sealed F: 348 Hz.

    Thiele-Small Parameters:

    • Resonant Frequency (Fs): 34.4 Hz
    • DC Resistance (Re): 6.71 ohms
    • Voice Coil Inductance (Le): 0.38 mH
    • Mechanical Q (Qms): 7.55
    • Electromagnetic Q (Qes): 0.64
    • Total Q (Qts): 0.59
    • Compliance Equivalent Volume (Vas): 13 ft.³
    • Mechanical Compliance of Suspension (Cms): 0.17 mm/N
    • BL Product (BL): 16.26 Tm
    • Diaphragm Mass Inc. Airload (Mms): 106.7g
    • Maximum Linear Excursion (Xmax): 4.6 mm
    • Surface Area of Cone (Sd): 1240 cm².

    Materials of Construction:

    • Cone Material: Paper / Kevlar
    • Voice Coil Wire Material: Aluminum
    • Voice Coil Former: Fiberglass
    • Magnet Material: Ferrite.
