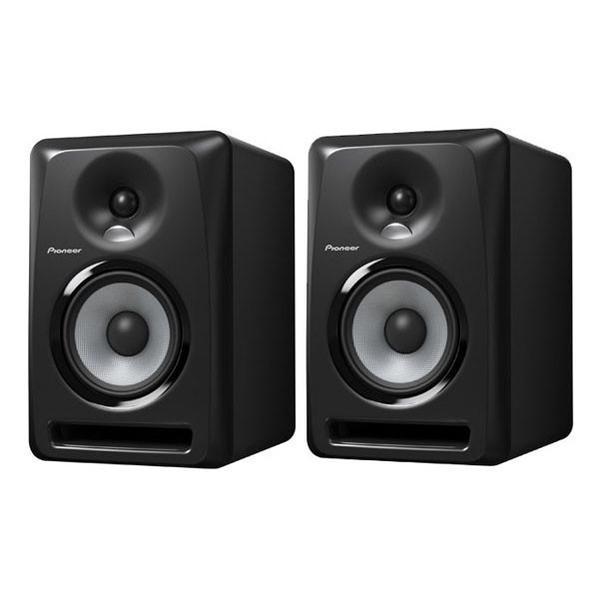

Pioneer S-DJ80X Active Reference Speaker
The S-DJ80X active reference speakers are designed for great audio feedback while practicing DJing skills. The speakers feature excellent sound quality, improved bass response and reliability, three types of inputs, and built-in equalization, useful for DJs who want to achieve the highest accuracy in sound reproduction.
For maximum audio performance, increased bass output and reduced unwanted resonance, each speaker utilizes a highly rigid medium density fiberboard (MDF) for the construction of its enclosure and bass reflex ducts. Additionally, to optimize sound quality and increase reliability, Pioneer uses woofers made with aramid fiber cones and soft dome tweeters infused in magnetic fluid.
Groove Technology: To improve airflow through the port of the enclosure, Pioneer engineered the port hole with grooves to help direct the sound waves smoothly. The technique decreases standing waves from the mouth of the port, resulting in smooth bass and midbass output, with more impact.
Convex Diffuser: Matching the bass output of the speakers, the soft dome tweeters are set in the center of a convex diffuser optimizing output and dispersing the sound energy in both left and right directions for wider imaging. The blue area below shows the normal spread of sound, and the orange area displays the enhanced spread of sound with the diffuser. For a cool cosmetic look, the diffuser also illuminates in white when the speakers are powered on.
Class AB bi-amp: Driving the speakers is a highly efficient Class AB amplifier in a bi-amp configuration to power the tweeters and woofers separately.
EQ Controls: The speakers also enable users to adjust high-pass level output via the built-in equalizer from the back of the speaker. The equalizer adjusts the high frequency range in one decibel increments (-2dB to +1dB), tailoring the audio output to the user’s listening preference.
Pioneer S-DJ80X Specifications:
- Type: Bi-amp 2-way bass reflex active speaker
- Tweeter: 1-inch soft dome tweeter
- Woofer: 8 inch aramid fiber
- Frequency characteristics: 40 Hz to 20 kHz
- Amplifier Output: Class A/B bi-amp 160W, LF: 125W (70W), HF: 35W (20W)
- Balanced input: XLR x 1, TRS (1/4 inch PHONE) x 1
- Unbalanced input: RCA x 1
- Maximum external dimensions (W x H x D): 10.87" x 15.79" x 12.40"
- Accessories: power cord, user manual.
