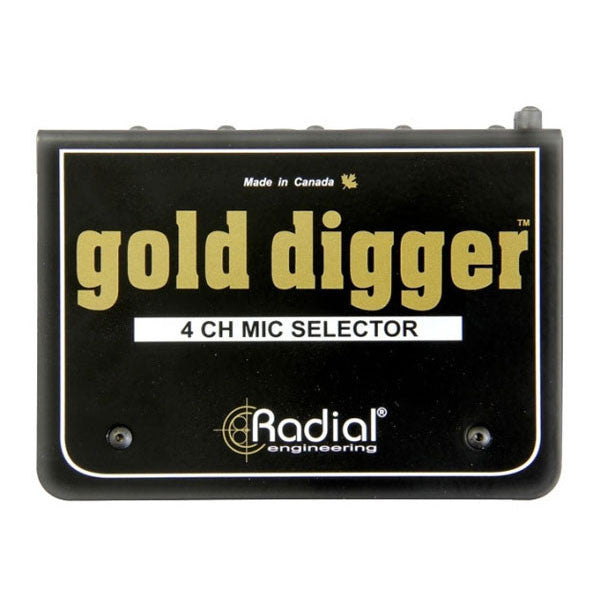

Radial Gold Digger 4-Channel Mic Selector

Radial Gold Digger 4-Channel Mic Selector _x005F The Gold Digger is a 4-channel mic selector that enables the engineer to quickly compare the sound of four different microphones while sharing the same preamp A 'straight wire' passive circuit design is void of any audio buffers or transformers.

Instead, the Gold Digger employs military grade gold contact relays to manage the switching process, thus ensuring the pristine mic signal is maintained without introducing color, distortion or artefact of any kind _x005F Features include four rear-mounted XLR-F mic inputs plus an XLR-m output to feed the preamp.

To eliminate bleed between microphones , each channel is equipped with a 'radio style' selector switch that ensures only one mic is on at a time The external supply provides power for the LED indicators, charges the relays and enables the Gold Digger to generate 48 volt phantom which can be turned on or off for each mic as needed.

To ensure an 'honest' comparison between microphones, individual 'set & forget' trim controls let you adjust each mic level so that they produce the same relative output Once set up, the Gold Digger not only improves workflow, but also gives the artist more confidence with the sound of the vocal, resulting in a better overall performance.

_x005F Radial Gold Digger Features: _x005F Inputs: 4 x XLR female _x005F Outputs: Balanced XLR male _x005F Controls: Variable trim on each input _x005F XLR configuration:  AES standard (pin-2 hot) _x005F Switches: _x005F Individual on/off for each input _x005F Individual 48V phantom power for each input.

_x005F Radial Gold Digger Specifications: _x005F Audio circuit type: Passive signal path with active relay switching _x005F Frequency response: 10Hz to 100kHz +/- 0.0dB _x005F Dynamic range: >140dB _x005F Equivalent input noise: -115dBu _x005F Residual noise: -140dB _x005F Maximum input: +26dBu _x005F Maximum output: +26dBu _x005F Total harmonic distortion: 0.0003% _x005F Phase deviation: _x005F Intermodulation Distortion: 0.001% _x005F Input impedance: 600 Ohms (typical) _x005F Common mode rejection: -92dBu @ 55Hz _x005F Gain: 0.0dB – Unity gain device _x005F Power: +15V DC/400mA power supply included _x005F Construction: 14 gauge steel chassis & outer shell _x005F Finish: Baked enamel _x005F Specifications are subject to change without notice.
