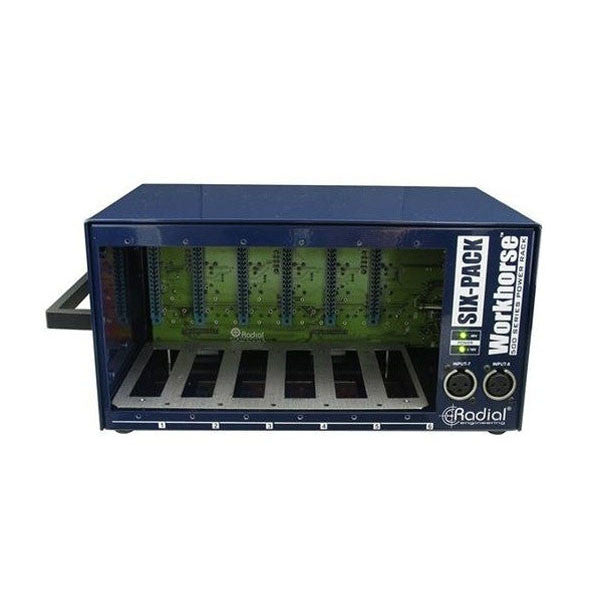

Radial Workhorse SixPack Power Rack

Radial Workhorse SixPack Power Rack _x005F The SixPack is a desk-top power rack for 500 series modules that lets you mix and match up to six modules and safely power them to create a stereo channel strip or unique signal chain _x005F The design begins with a heavy 14 gauge steel construction and baked enamel finish.

This provides extra durability when moving the SixPack around the studio while also providing better shielding against stray magnetic fields To reduce induced noise, the power supply is external and connects using a 5-pin locking XLR.

To ensure positive contact, the module card-edge connector is mated to a double sided EDAC 15-pin receptacle that is 100% compatible with the old API pin format Extra safety is built-in to ensure malfunctioning modules will not harm the SixPack or other modules that may already be connected.

And with 1600 milliamps of shared current, the SixPack exceeds all others with an average of over 265 milliamps per slot to ensure even the most power hungry tube modules will be satisfied _x005F Rear panel connectivity includes individual XLR input and output connectors wired in parallel to ¼" TRS connectors.

These may be used as mults or for cross-patching various modules together to create innovative sounding signal paths A set of 25-pin D-Sub connectors enable the SixPack to easily integrate with a Workstation.

Two XLR connectors are front mounted and may be routed to the D-Sub or to inputs 1 and 4 to make patching in a microphone more expedient Extra features include a feed switch that patches one module into the next, a link switch to combine stereo-ready modules and Omniport, a ¼" TRS jack that adds extra functionality.

_x005F The convenient design lets you set the SixPack down on your work surface or carry it around the studio using the side-mounted handle Optional flanges let you mount it in a 19" rack if you plan to take your SixPack on the road! _x005F Radial Workhorse SixPack Features: _x005F Omniport: Yes _x005F Feed switch: Yes _x005F Stereo link: Yes _x005F 48V phantom power: Yes on all channels.

_x005F Radial Workhorse SixPack Specifications: _x005F Circuit type: Connection buss from modules to connectors _x005F Format: Desktop _x005F Number of slots: 6 _x005F Input connectors: 8 balanced XLR male, 8 ¼" TRS, 25-Pin D-Sub _x005F Output connectors: 8 balanced XLR female, 8 ¼" TRS, 25-Pin D-Sub _x005F Compatibility: Adheres to the Whos-Doc and VPR Alliance _x005F Available current: 1600 milliamps _x005F Average current: 266 mA per slot _x005F Card slot impedance: Module dependent _x005F Ground connections: Chassis _x005F XLR pin wiring: AES standard: pin-1 ground, pin-2 (+), pin-3 (-) _x005F D-Sub pin wiring: Follows Tascam D-Sub standard _x005F Power supply: External 100V - 240V AC with 48V Phantom _x005F PSU Connection: Locking 5 pin XLR female on cable _x005F Specifications are subject to change without notice.
