Roland Edirol M10MX 10 Channel Analog Mixer

Roland Edirol M10MX 10 Channel Analog Mixer

This item is out of stock


Buy Roland Edirol M10MX, 10 Channel Analog Mixer online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

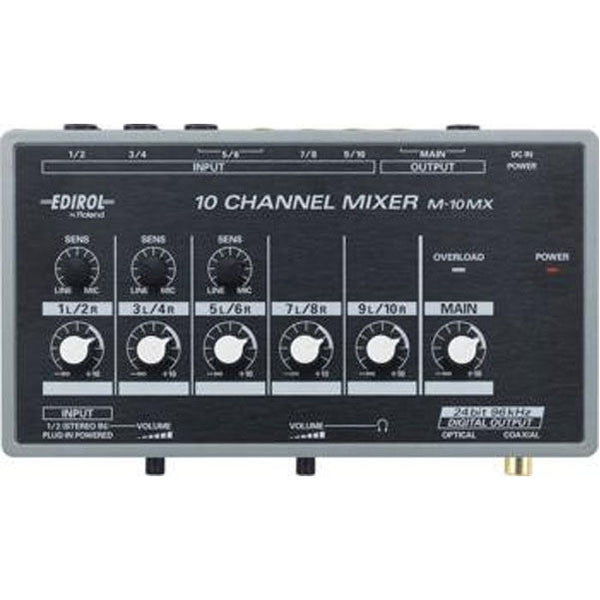

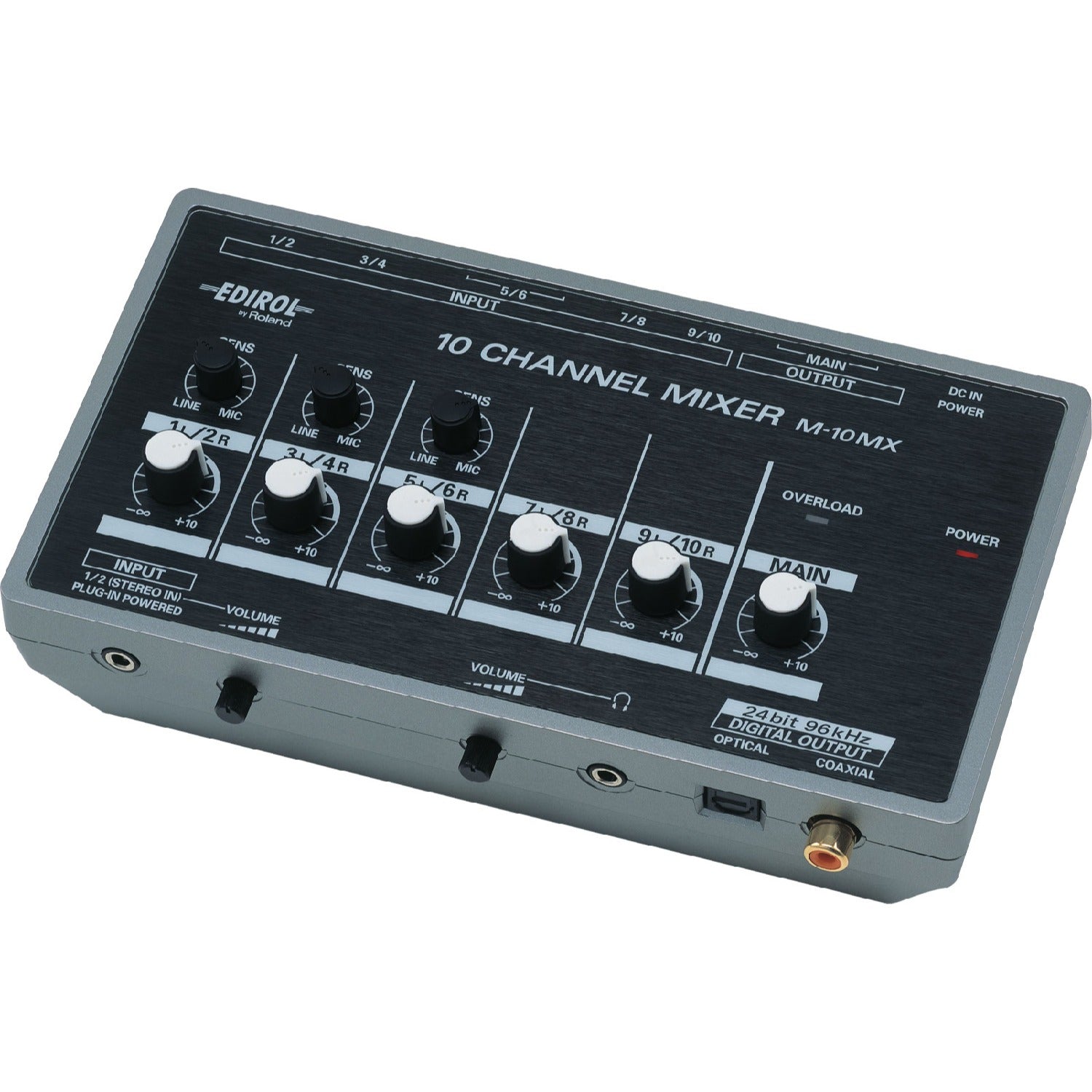

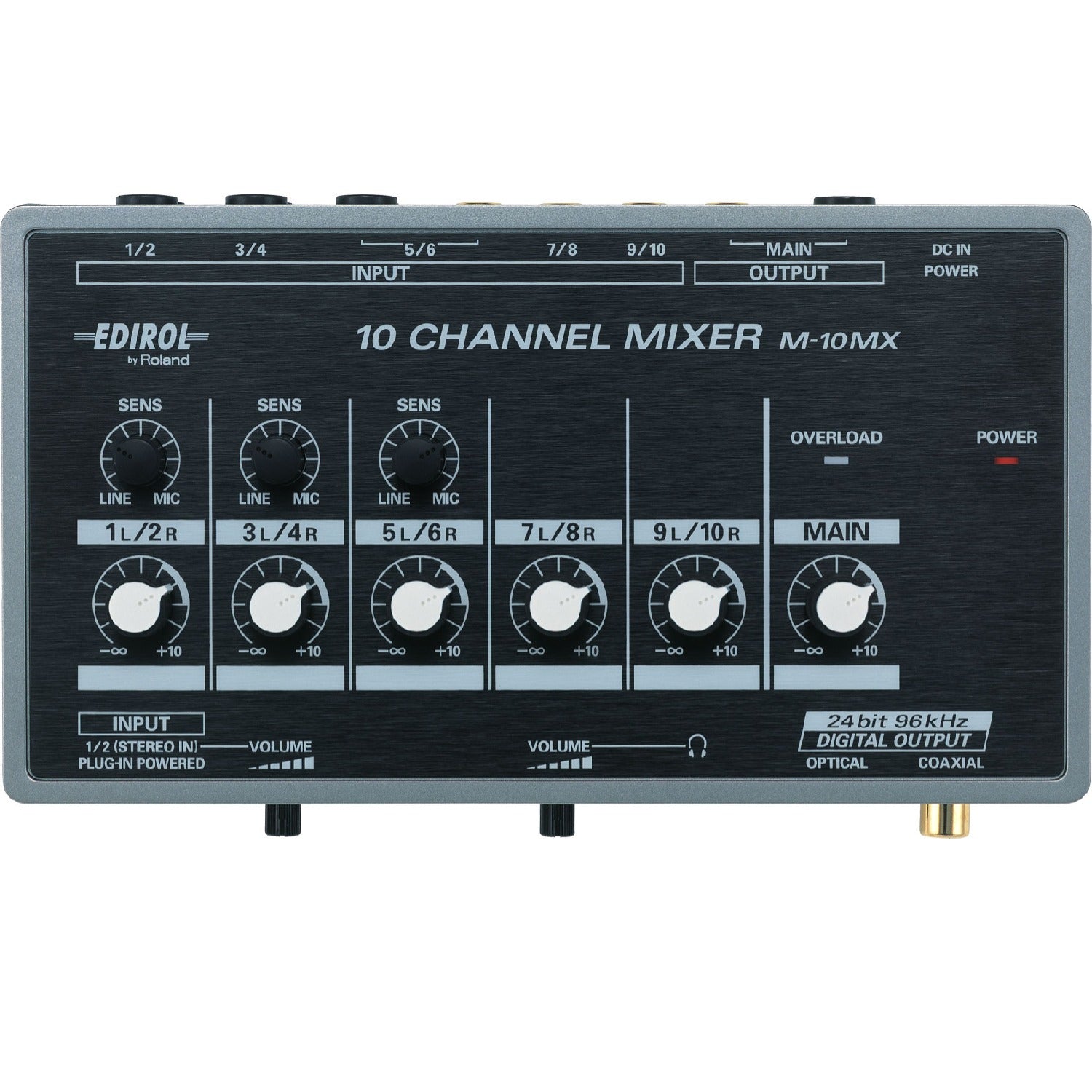

BAJAAO India presents the Roland Edirol M-10MX a compact, battery-operated mixer for mobile/field recording or DJ use.

The M-10MX is almost small enough to put in your pocket, this handy mixer is built to EDIROL's high standards, and it's ready to travel. With a choice of 1/4" and RCA inputs and outputs, the M-10MX lets you mix wherever you go.

Compact and Portable
AC or battery power, take your choice. The M-10MX comes with an AC adaptor, but it can also operate on battery power (four AA batteries). Thanks to its compact body and battery operation, the M-10MX is an excellent tool for location video and/or field recording, live mixing, and even podcasting with the EDIROL R-09.

Versatility

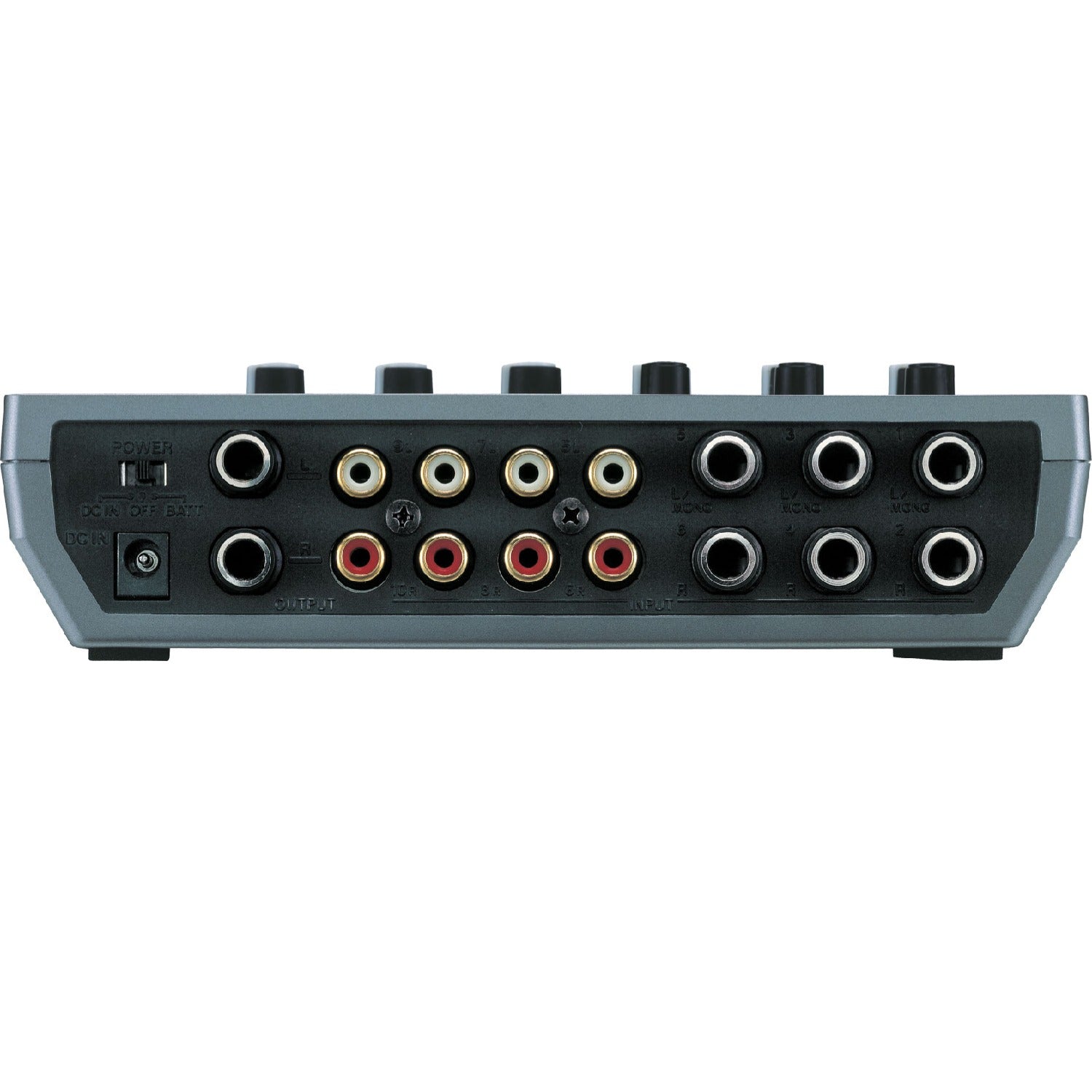

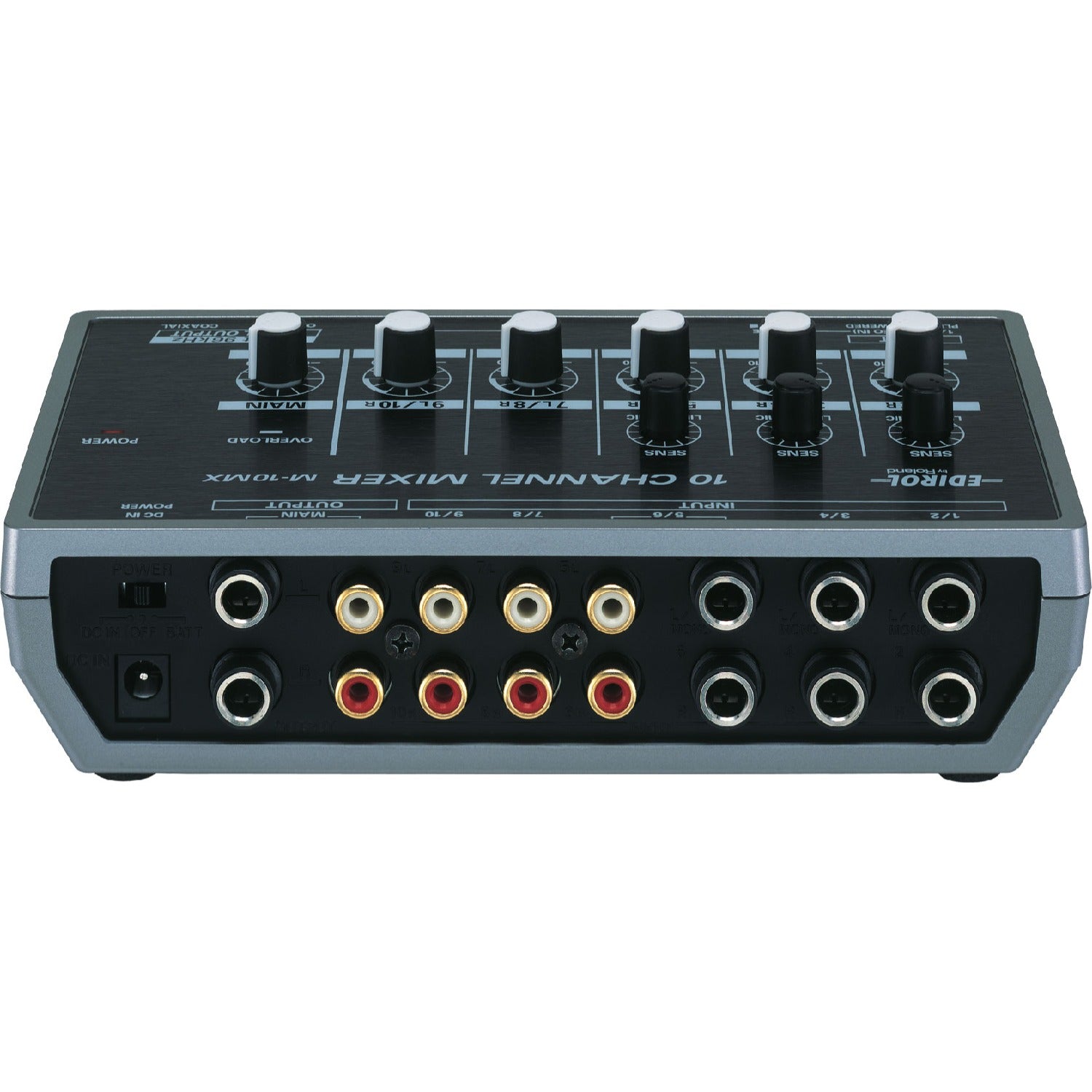

Connect a wide range of audio devices to the M-10MX, including dynamic microphones, musical instruments, consumer audio devices, video equipment, and audio interfaces for computer audio. The M-10MX's versatile back panel offers 1/4" and RCA input and output ports, plus a dedicated plug-in powered, stereo electret condenser microphone jack, suitable for use with mics such as the EDIROL CS-15. For outputs, two TRS impedance balanced 1/4" phone jacks are provided.

Digital Outputs
The M-10MX is equipped with both coaxial and optical S/PDIF 24-bit/96kHz digital audio outputs, which means you can connect it directly to the S/PDIF digital input of any audio interface, such as the EDIROL UA or FA-series units for recording and mixing entirely in the digital domain. The M-10MX can also be connected digitally to studio monitors such as the EDIROL MA-series or Roland DS-series powered monitors.

Edirol M10-MX, 10-Channel Battery Powered Mixer Specifications:

  • Number of Channels: 10 in 2 out
  • AD Conversion: Sample Rate 44.1/48.0/96.0 kHz; Signal Processing: 24 bits
  • Frequency Response: 96.0 kHz: 20 Hz to 40 kHz (+1/-2 dB); 48.0 kHz: 20 Hz to 22 kHz (+1/-2 dB); 44.1 kHz: 20 Hz to 20 kHz (+1/-2 dB)
  • Residual Noise Level: -86 dBu (IHF-A, typ.)
  • Nominal Input Level; Input Jacks 1 6: -50 to +4 dBu; Input Jacks 1 2: -40 to +10 dBu; Input Jacks 5 10: -2 dBu , * Maximum input level: Nominal input level + 12 dB
  • Nominal Output Level: -2 dBu , Maximum output level: +10 dBu
  • Connectors; Input Jacks 1 6: 1/4 inch phone type, unbalanced; Input Jacks 1 2: Stereo miniature type, plug-in powered); Input Jacks 5 10: RCA pin type; Main Output Jacks L, R: 1/4 inch TRS phone type (impedance balanced), RCA pin type; Digital Output Connectors: Optical type, Coaxial type; Headphone Jack: Stereo miniature type: DC IN (AC adaptor) Jack
  • Power Supply: DC 9 V (AC adaptor), Alkaline dry battery LR6 (AA) type x 4
  • Current Draw: 250 mA *Expected battery life under continuous use: Alkaline: 6 hours (Power save mode: On), 4 hours (Power save mode: Off) These figures will vary depending on the actual conditions of use.
  • Dimensions: 7-3/16 (W) x 4-1/4 (D) x 2-1/8 (H) inches, 181.2 (W) x 107.5 (D) x 54.0 (H) mm
  • Weight: 14 oz, 393 g
  • Accessories: Owner's Manual, AC Adaptor, Ferrite Core

Edirol M-10MX, 10-Channel Battery Powered Mixer Features:

  • Compact and portable, perfect for mobile/field use
  • Wide range of analog inputs and outputs, including two TRS 1/4" output jacks
  • 24-bit/96kHz S/PDIF coaxial and optical outputs
  • Battery or AC power (AC adaptor included)

Edirol M-10MX 10-Channel Battery Powered Mixer Includes:

  • Owner s Manual, AC Adaptor, Ferrite Core

Whether you're sound mixing for a film or just need a self-powered, lightweight quality mobile mixer, get an Edirol M-10MX and be ready to mix anytime, anywhere.
