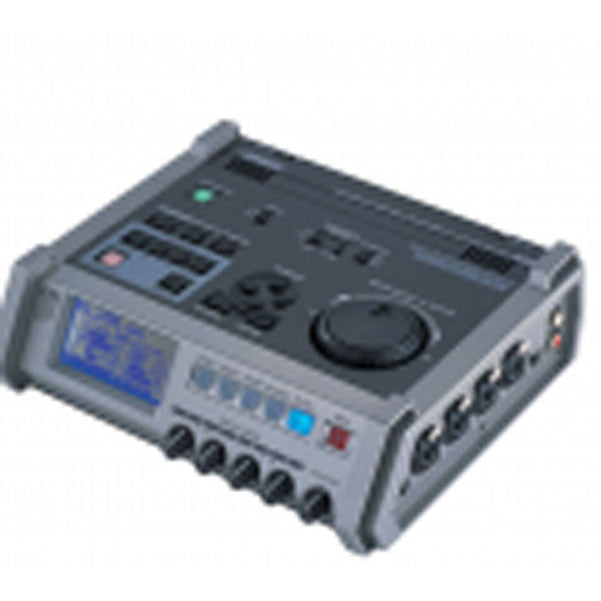

Roland R-4 4-Channel Portable Recorder and Wave Editor.

The R-4 brings you a new generation of portable recording. Enjoy superb sound quality. Use the 40GB hard disk drive for extended recording. Record up to four channels at once. Edit waveforms on the recorder itself. All this plus a compact size and light weight that assure outstanding mobility in the field. The Edirol R-4. Gear up for the new generation of portable recording.

Extended Recording with 40GB Hard Drive

Equipped with a 40GB hard disk drive, the R-4 can record up to 17 hours at maximum sound quality or up to 58 hours at CD quality.

Superior 24-bit/96-kHz Linear Recording

Totally uncompressed recording assures outstanding sound quality. Choose 16-bit or 24-bit quantization and a sampling rate of 44.1 kHz, 48 kHz, or 96 kHz. Save data as WAV files.

Simultaneous 4-Channel Recording

The 4 XLR/Phone combo jacks come with switchable phantom power and give you a choice of MONO, STEREO, STEREO X2, or 4CH recording. In addition, a digital input and output is provided. Four-channel recording gives you exceptional flexibility. For example, you can use mics to capture the ambience of a performance hall while using line input to record the performance itself. Or you can record at several different level settings simultaneously.

On-Board Limiter

Built into the analog stage, the Limiter helps deliver a stable and reliable recording free of clipped noise from sudden input surges.

Built-In Nondirectional Stereo Microphones

The R-4's nondirectional, back electret condenser microphones offer superb transient characteristics and vibration resistance.

Pre-Recording Function

When the REC button is pressed, the current material is appended to a buffer that contains recorded material from a few seconds earlier. This helps prevent missed recording opportunities or sound bites/actualitie at the beginning of a recording.

Five High-Quality Effects

The R-4 lets you tailor the sound during both recording and playback.

L Terminal for Linking a Digital Video Camera

The R-4's L terminal lets you connect a similarly equipped digital video camera to synchronize the camera start/stop while R-4 is recording and playback. Counting the camera's two channels, this configuration gives you a total of six audio channels - a wealth of audio data to get creative with.

Waveform Editing Using Only the R-4

The R-4 is all you need to edit waveforms. Just watch the waveform on the LCD as you edit. Scrubbing playback with the shuttle dial lets you set the edit points precisely by sound.

Index Any Point Instantly

A-B repeat function you can set two points and repeatedly play back the material between them.

Easy Playback with the Jog Dial

Use the jog dial to fast-forward or rewind at any of seven speed levels.

Built-In Stereo Speakers

The R-4's built-in speakers make it easy to monitor recorded sound without headphones.

USB 2.0 Terminal Provides a High-Speed Computer Data Link

The USB 2.0 high-speed mode transfers data about 20 times faster than DAT. You can also use the R-4 as a 40GB storage device. Edit R-4 filescan be directly from DAWs and other applications.

Advanced Linking with the EDIROL DV-7DL

A USB cable is all you need to connect directly to an EDIROL DV-7DL Video Editor and exchange files.

Compact Flash Slot

The compact flash slot makes it easy to read or write recorded files. You can use compact flash memory to give data to colleagues or to transfer data to equipment not equipped with an USB interface.

2-Way Power Supply

The R-4 runs on eight AA batteries or with the AC adaptor.

Roland R-4 Specifications:

  • Channels - 4
  • Signal Processing - AD/DA Conversion: 24 bits
  • Sampling Frequency: 44.1/48/96 kHz
  • Data Type  - Format: WAV
  • Sampling Frequency -  44.1/48/96 kHz
  • Bit Depth -  16/24 bits
  • Media - Internal Hard Disk Drive (40 GB), CompactFlash (supports 32 MB to 2 GB)

Recording time:

  • 16 bit/44.1 kHz (Stereo): 58 hours
  • 16 bit/48 kHz (Stereo): 53 hours
  • 24 bit/48 kHz (Stereo): 35 hours
  • 16 bit/96 kHz (Stereo): 17 hours

Audio Input and Output Part

  • Analog Inputs - Channel 1/2/3/4: XLR type (phantom powered), 1/4 inch TRS phone type (balanced/unbalanced), Internal Microphone (Stereo)
  • Analog Outputs  - LINE Out: 1/4 inch phone type (L, R), RCA phono type (L, R)
  • Headphones: Stereo 1/4 inch phone type
  • Digital Input/Output  - Coaxial type (conforms to IEC60958)
  • Input Impedance  -  4 k ohms
  • Nominal Input Level (Variable)  - Line Level: -33-- +4 dBu, MIC Level: -60-- -23 dBu
  • Output Impedance - LINE Out: 950 ohms, Headphones: 10 ohms
  • Output Level LINE Out: -10 dBV, Headphones 40 mW + 40 mW
  • Residual Noise Level  - LINE Out: -85 dBu, Digital Data: -90 dBFS
  • (fs = 96 kHz, Input: 1 k ohms terminated, Level Switch: MIC, Input Level Knob: Min. Input: 4 channels simultaneously)
  • Total Harmonic Distortion (THD + N) - 0.03 %
  • (fs = 96 kHz, Input: 1 k ohms terminated, Level Switch: LINE, Input Level Knob: Min. Input: 4 channels simultaneously, Band Width: 22 kHz)Recommended Load Impedance for Headphones -  32 ohms
  • Frequency Response  - 20 Hz to 40 kHz (0 to -3 dB)
  • Phantom Power  - 48+/-2 V / 8 mA (Available 4 Channels simultaneously)

Other Input/Output Part

  • USB Interface -  B Type Connector, Supports USB 1.1 and 2.0 Mass Storage Device Class.
  • CompactFlash Slot  - Supports Type I only
  • L Connector  - Receiving only, Supports Start/Stop Sync only, Not Supports Timecode.

Effect Unit Part

Effect Type -  3-BAND SHELVING EQ, 6-BAND GRAPHIC EQ, NOISE GATE, ENHANCER, COMPRESSOR AND DE-ESSER, NO EFFECTAvailable to either recording or playing. Not available to recording in 96 kHz sampling frequency.


  • Power Switch
  • Hold Switch
  • Input Gain Knobs: CH1--CH4
  • Monitor Level knob
  • Input Level Switches: CH1/2, CH3/4 (LINE/MIC Level)
  • Phantom Power Switches: CH1/2, CH3/4
  • Limiter Switch
  • Scrub (Value)/Shuttle Dial
  • Transport Buttons: PREV (REW), NEXT (FWD), STOP, PLAY/PAUSE, REC
  • Marker Buttons: CLEAR, PREV, NEXT, MARK
  • Function Buttons: WAVE EDIT, EFFECTS, SYSTEM
  • A-B Repeat Button
  • Display Button


  • Display  - 128 x 64 dots Graphic LCD (backlit LCD)
  • Power Supply  - AC Adaptor (PSB-1U), Alkaline dry battery LR6 (AA) type x 8, or Nickel Hydrogen battery (HR15/51) x 8
  • Power Consumption -  1.2 A
  • Accessories Owner's Manual - AC Adaptor (PSB-1U), USB cable, Carrying Case

Size and Weight

  • Width (W)240 mm9-1/2 inches
  • Depth (D)217 mm8-9/16 inches
  • Height (H)77 mm3-1/16 inches.
