Roland SYSTEM-8 Plug-Out Synthesizer

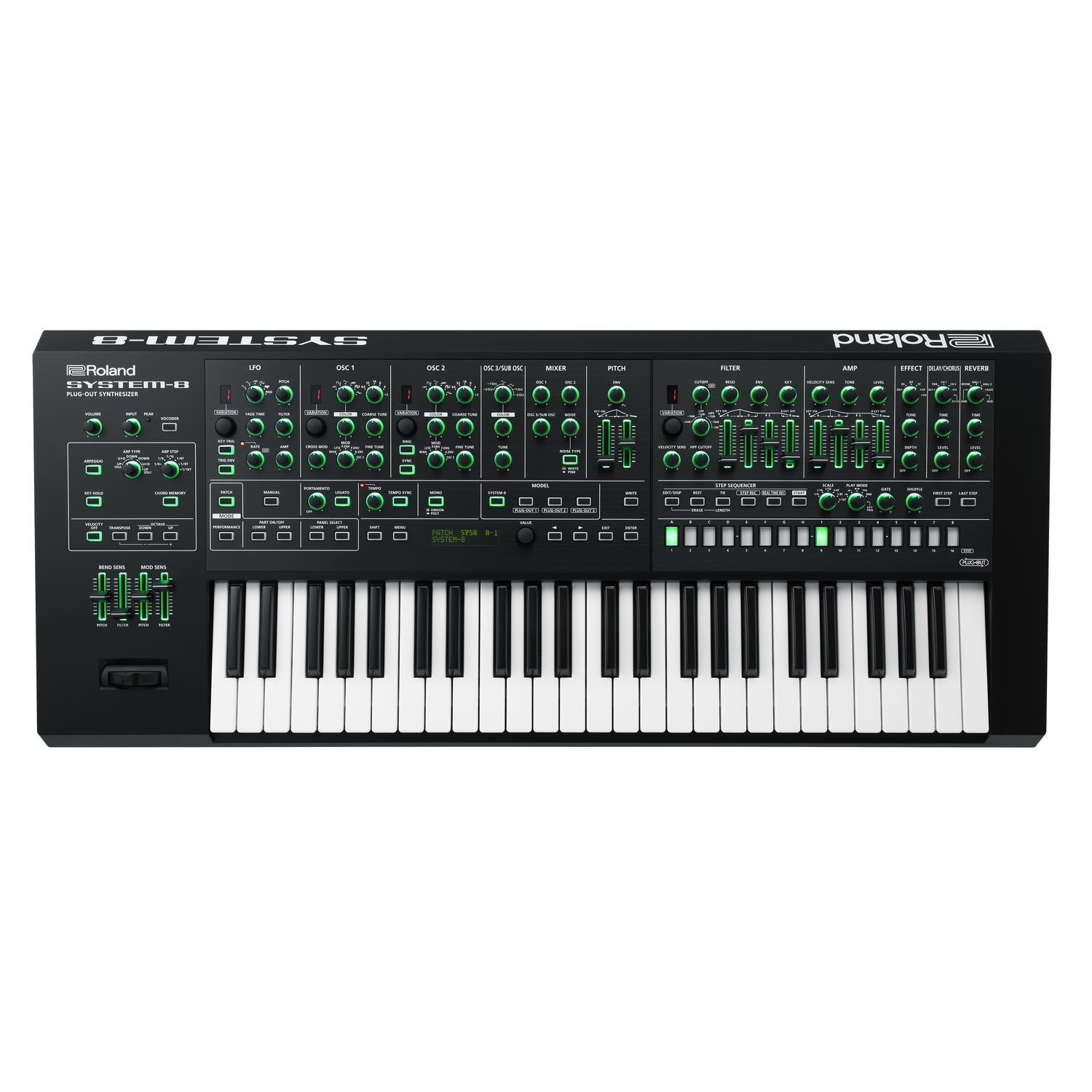

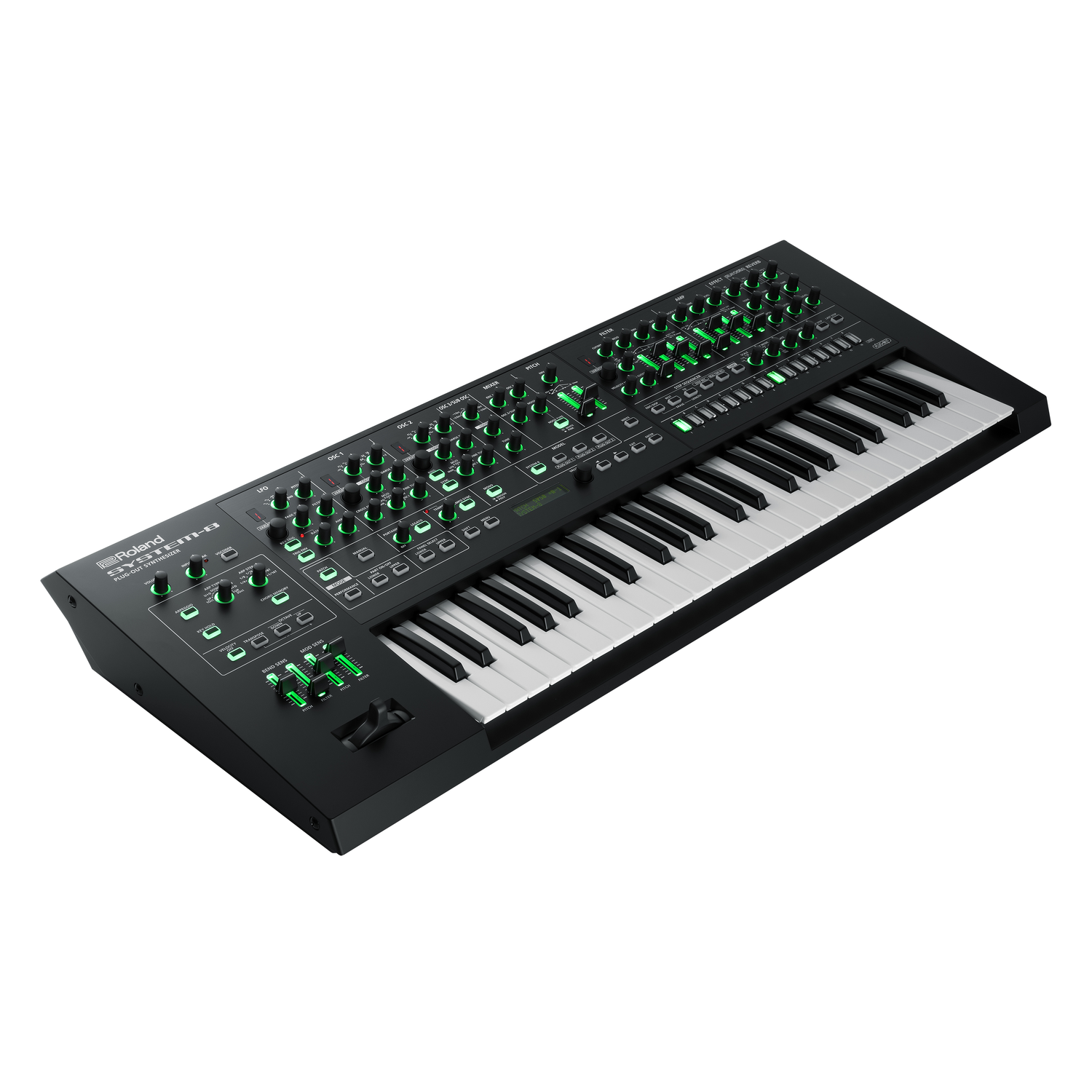

Roland SYSTEM-8 Plug-Out Synthesizer Overview: Powerful and deep, the SYSTEM-8 delivers a vast palette of sounds inspired by over four decades of legendary Roland synths Its next-gen Analog Circuit Behavior (ACB) engine powers an eight-voice, three-oscillator monster with stunning filters and effects, highly versatile LFOs, and a massive array of high-resolution knobs and sliders to control it all.

Support for three PLUG-OUT synths means the SYSTEM-8 can host spot-on recreations of numerous Roland classics, and JUPITER-8 and JUNO-106 PLUG-OUTS are even included with purchase* Split and layer synths for unheard of sounds, and tap into the integrated vocoder, arpeggiator, CV/Gate outs, and advanced polyphonic step sequencer to fuel endless creative explorations.

Advanced Sound Engine Roland’s universally acclaimed Analog Circuit Behavior approach accurately recreates historic analog sounds with forward-thinking technology The SYSTEM-8 is equipped with the most advanced ACB engine yet, which offers eight voices of polyphony, three oscillators (including a sub oscillator option), and silky-smooth filters with ultra-detailed resolution.

It’s easy to dial up warm pads, fat basses, expressive lead tones, and more, all inspired by the rich sonic character of the legendary SYSTEM series Reaching beyond the retro vibe, the versatile SYSTEM-8 is also capable of producing crisp, dynamic tones and evocative textures that are ideal for modern sound designers.

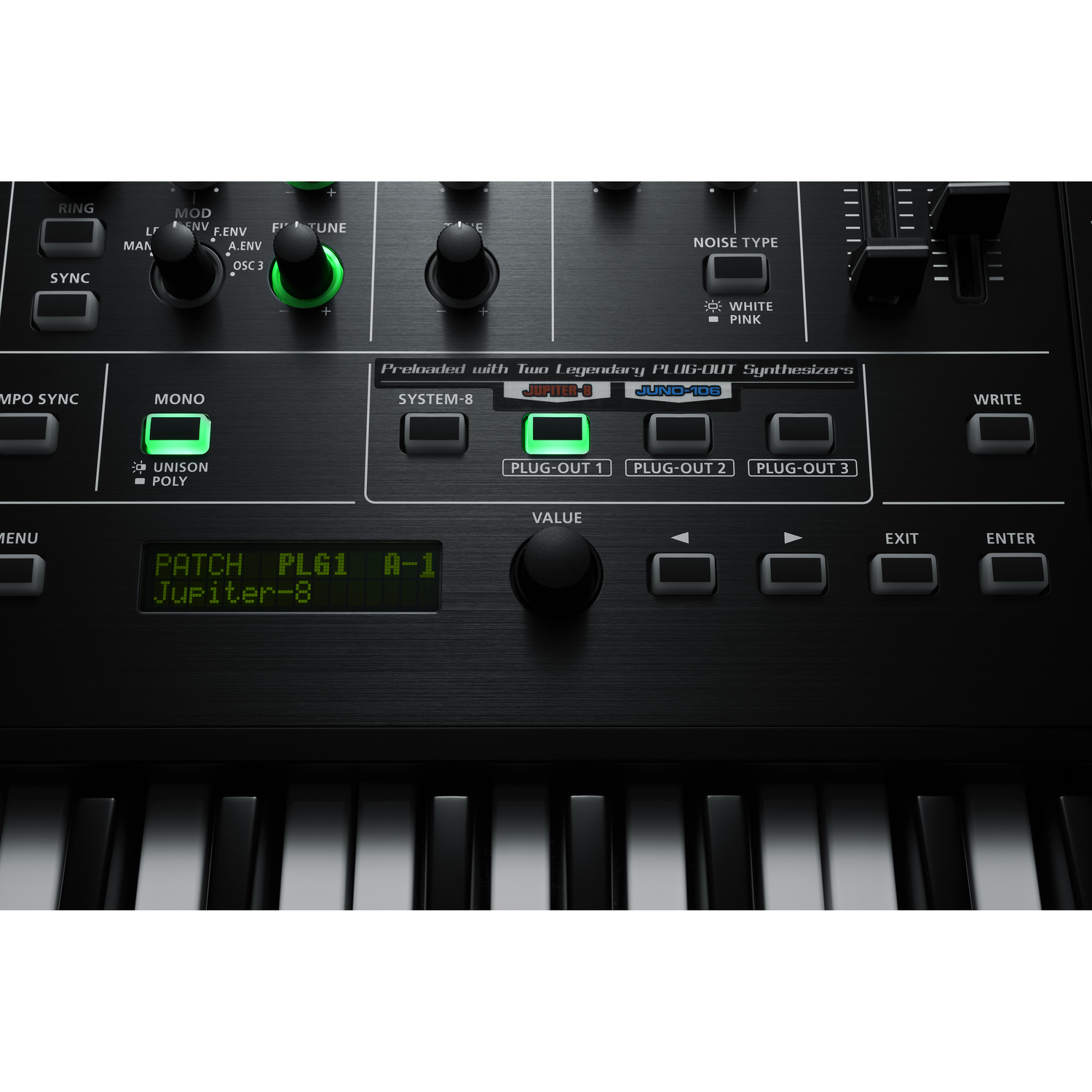

PLUG-OUT Expansion In addition to its impressive internal sound engine, the SYSTEM-8 features three expansion slots for hosting and controlling Roland’s PLUG-OUT software synths JUPITER-8 and JUNO-106 PLUG-OUTs are included, giving you immediate access to authentic sonic reproductions of these Roland classics (Preloaded JUNO-106 is scheduled for release in 2017 by SYSTEM-8 update).

Optional PLUG-OUTs such as the SH-2, SH-101, PROMARS, and others are supported as well (Support for SYSTEM-8 on previously released plug-out synths to be available soon) Using the SYSTEM-8’s Performance mode, you’re able to combine the internal synth engine and hosted PLUG-OUTs to create super-synth patches with layered voices, custom splits, and more.

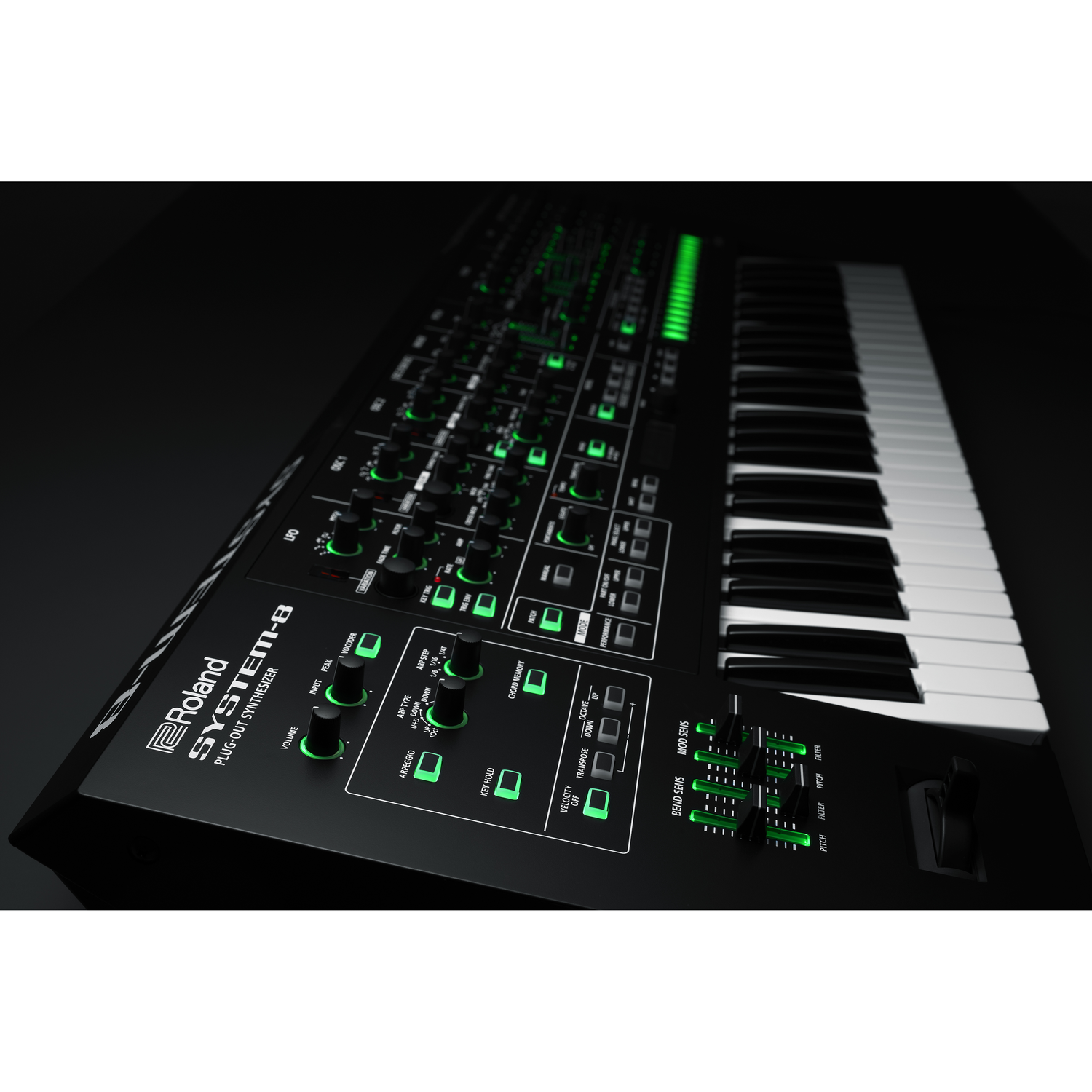

Maximum Sonic Control With its comprehensive interface, the SYSTEM-8 offers countless ways to shape sounds and discover new ones The panel is packed with direct-access controls for dynamic sound creation and live performance expression.

Many hi-res filter types are available courtesy of the advanced ACB engine, including a powerful side-band filter inherited from Roland’s influential V-Synth Tons of top-notch effects are on hand for adding character and ambience, from overdrive, distortion, and fuzz to delay, chorus, reverb, and more.

And just like the numerous synth parameters, the effects have grab-and-go controls that make it simple to enhance sounds as you play Creative Toolbox Designed to inspire, the SYSTEM-8 is filled with intuitive performance tools to spark your creativity.

The 64-step sequencer features a familiar TR-REC style interface and dedicated controls to record, play, and manipulate loop sequences in real time While building your sequences, you can capture single notes or full chords, as well as all your knob and slider moves.

The Arpeggio function is equipped with quick-access knobs for switching patterns and styles as you play, while Chord Memory allows you to trigger polyphonic note stacks with a single key The SYSTEM-8 even has an advanced vocoder built in, offering another expressive option for delivering unique and memorable synth performances.

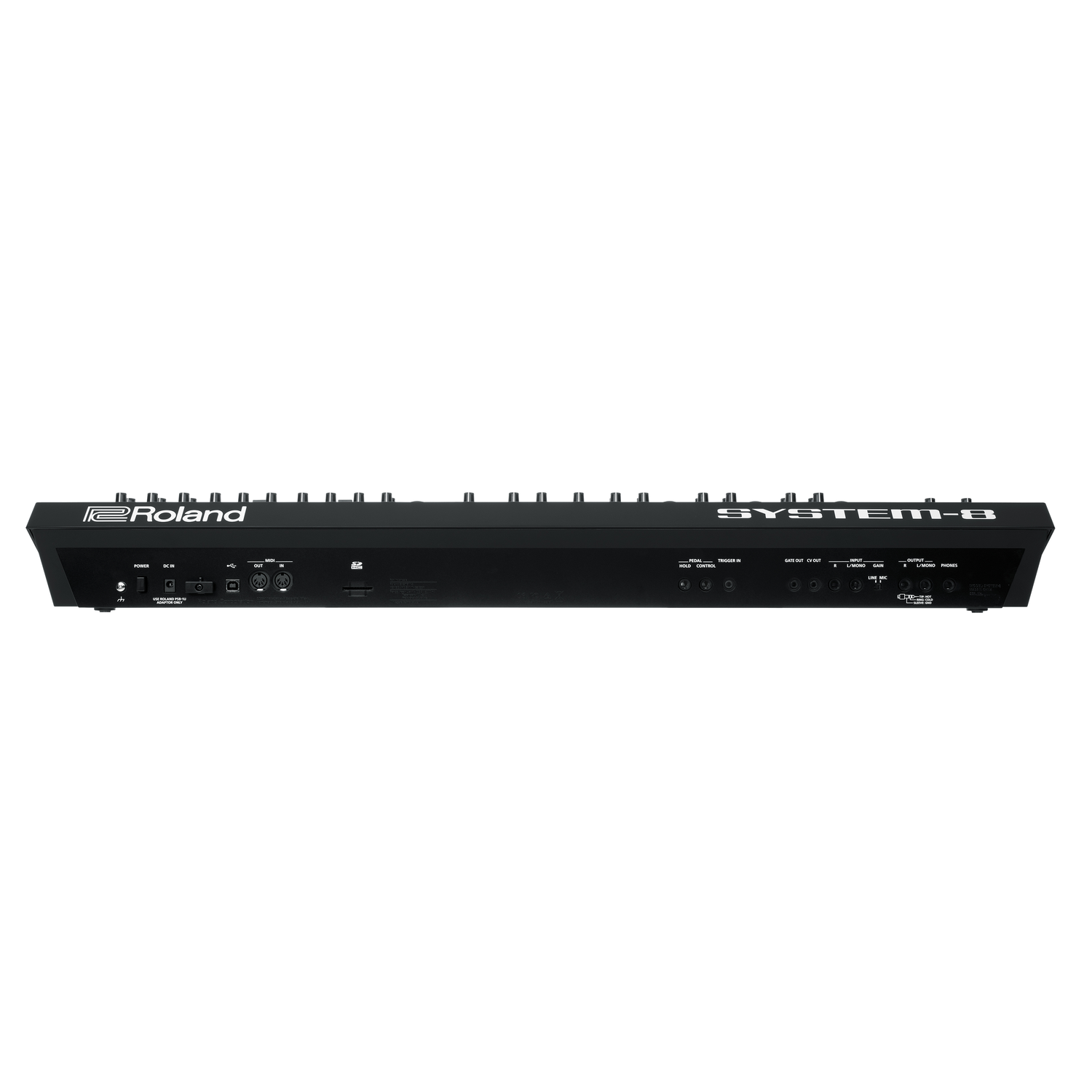

USB and CV/Gate While the SYSTEM-8 excels as a performance instrument, it easily integrates with your production software and external gear The synth functions as a USB audio/MIDI interface for your DAW , and the 49 full-size keys provide a responsive, great-feeling keyboard for recording MIDI tracks.

There’s even a control surface mode for using the SYSTEM-8’s knobs, sliders, and buttons with your soft synths And with the built-in CV/Gate outputs, you can send note/pitch data from the synth engine and step sequencer to trigger your modular synths and retro gear.

Features: Versatile performance synthesizer with advanced ACB technology and 49 full-size keys Internal sound engine delivers classic analog tones and dynamic modern sounds with analog vibe Hosts up to three PLUG-OUT synths; JUPITER-8 and JUNO-106 PLUG-OUTs included Advanced low-pass, high-pass, and side-band filters with high-resolution controls Massive real-time control with dedicated knobs, sliders, and buttons Polyphonic step sequencer with classic TR-REC style interface Arpeggio, vocoder, and polyphonic Chord Memory functions CV/Gate outputs for interfacing with modular synths and vintage gear Large selection of onboard effects with hands-on controls USB audio/MIDI interface and control surface mode Specifications: Keyboard: 49 keys (with velocity) Models: SYSTEM-8, PLUG-OUT1, PLUG-OUT2, PLUG-OUT3 Maximum Polyphony: 8 voices (MODEL: SYSTEM-8) (MODEL: PLUG-OUT1, 2 and 3 are depend on PLUG-OUT software) User Memory: Patch: 64 (8 memories x 8 banks, per one model), Performance: 64 (8 memories x 8 banks) Structure Elements: MODEL: SYSTEM-8 is as follows (MODEL: PLUG-OUT 1, 2 and 3 are depend on PLUG-OUT software) LFO Section: Variation: 1 (Single LFO), 2 (Dual LFO), 3 (Resonanced Pulse LFO) Waveform: VARIATION 1: SINE, TRIANGLE, SAW, SQUARE, Sample&Hold, Random VARIATION 2: 6 types VARIATION 3: 6 types Knobs: FADE TIME, RATE, PITCH, FILTER, AMP Controllers: KEY TRIGGER, TRIGGER ENVELOPE Oscillator 1 Section: Variation: 1, 2 Waveform: VARIATION 1: SAW, SQUARE, TRIANGLE, SAW2, SQUARE2, TRIANGLE2 VARIATION 2: 6 types Knobs: COLOR, MODULATION Source (MANUAL, LFO, P.ENV, F.ENV, A.ENV, OSC 3), OCTAVE (64, 32, 16, 8, 4, 2), COARSE TUNE, FINE TUNE Modulation: CROSS Modulator Oscillator 2 Section: Variation: 1, 2 Waveform: VARIATION 1: SAW, SQUARE, TRIANGLE, SAW2, SQUARE2, TRIANGLE2 VARIATION 2: 6 types Knobs: COLOR, MODULATION Source (MANUAL, LFO, P.ENV, F.ENV, A.ENV, OSC 3), OCTAVE (64, 32, 16, 8, 4, 2), COARSE TUNE, FINE TUNE Modulation: RING Modulator, Oscillator SYNC Oscillator 3/Sub Oscillator Section: Variation: 1, 2 Waveform: SINE (-2 octave), SINE (-1 octave), SINE, TRIANGLE?TRIANGLE (-1 octave)?TRIANGLE (-2 octave) Knobs: COLOR, TUNE Mixer Section: Level: OSC 1, OSC 2, OSC 3/SUB OSC, NOISE, Noise: WHITE Noise/PINK Noise Pitch Section: Knob: ENVELOPE Depth, Envelope: ATTACK Time, DECAY Time Filter Section: Variation: 1, 2 Filter Type: VARIATION 1: LPF (-24 dB), LPF (-18 dB), LPF (-12 dB), HPF (-12 dB), HPF (-18 dB), HPF (-24 dB) VARIATION 2: 6 types Knobs: CUTOFF, RESONANCE, VELOCITY SENS, ENVELOPE Depth, KEY Follow, HPF CUTOFF Envelope: ATTACK Time, DECAY Time, SUSTAIN LEVEL, RELEASE Time Amplifier Section: Knobs: VELOCITY SENS, TONE, LEVEL Envelope: ATTACK Time, DECAY Time, SUSTAIN LEVEL, RELEASE Time Effect Section: Type: OVER DRIVE, DISTORTION, METAL, FUZZ, CRUSHER, PHASER Knobs: TONE, DEPTH Delay/Chorus Section: Type: DELAY, PANNING DELAY, CHORUS 1, CHORUS 2, FLANGER, DELAY + CHORUS Knobs: TIME, LEVEL Reverb Section: Type: AMBIENCE, ROOM, HALL 1, HALL 2, PLATE, MODULATION Knobs: TIME, LEVEL Other Section: Knobs: PORTAMENTO, TEMPO, Controller: LEGATO, TEMPO SYNC, Key Mode: MONO/UNISON/POLY Step Sequencer: Track, 1 per Patch (step pattern is saved as a patch) Step: 1 - 64 steps Recording Method: Step recording, Realtime recording Controllers: SCALE, PLAY MODE, GATE, SHUFFLE, FIRST STEP, LAST STEP OTHER: VOLUME, INPUT volume, ARPEGGIO, CHORD MEMORY, VOCODER, KEYHOLD, VELOCITY OFF, TRANSPOSE, OCTAVE CONTROLLERS: Pitch bend and modulation lever, BEND SENS PITCH, BEND SENS FILTER, MOD SENS PITCH, MOD SENS FILTER DISPLAY: 16 characters 2 line LCD EXTERNAL STORAGE: SD Card (SDHC supported) for backup/restore function CONNECTORS: PHONES jack: Stereo 1/4-inch phone type OUTPUT (L/MONO, R) jacks: 1/4-inch TRS phone type INPUT (L/MONO, R) jacks: 1/4-inch phone type CV/GATE OUTPUT jacks: Miniature phone type (CV: This jack supports OCT/V (Hz/V is not supported) GATE: This jack outputs +10 V.) TRIGGER IN jack: Miniature phone type PEDAL (HOLD, CONTROL) jacks: 1/4-inch phone type MIDI (IN, OUT) connectors USB port: USB type B (Audio/MIDI) DC IN jack POWER SUPPLY: AC Adaptor CURRENT DRAW: 2 A Accessories: Owner's manual, AC adaptor, Power cord OPTIONS (SOLD SEPARATELY): Keyboard Stand KS-18Z (When using the KS-18Z ensure that the height of the unit is one meter or lower), Pedal switch: DP Series, Expression pedal: EV-5 Size & Weight: Width: 881 mm (34-11/16 inches) Depth: 364 mm (14-3/8 inches) Height: 109 mm (4-5/16 inches) Weight: 5.9 kg (13 lbs 1 oz) Made in China.
