sE Electronics RN17 Small Diaphragm Pencil Condenser Microphone

sE Electronics RN17 Small Diaphragm Pencil Condenser Microphone Overview: Designed with Mr Rupert Neve, the RN17 redefines the capabilities of an SDC.

This is the world's first pencil microphone with a large-scale, hand-wound, ultra high performance transformer The second product of the sE / Rupert Neve collaboration, work on the RN17 began with a discussion between Rupert and Siwei Zou on the merits and problems of small-diaphragm condensers.

THE SMALL DIAPHRAGM With a 15mm diaphragm (the world's smallest production gold-sputtered diaphragm), the transient response of the RN17 is unparalleled Such a small capsule reacts extremely quickly, and is therefore adept at picking up the most delicate of high-frequency content.

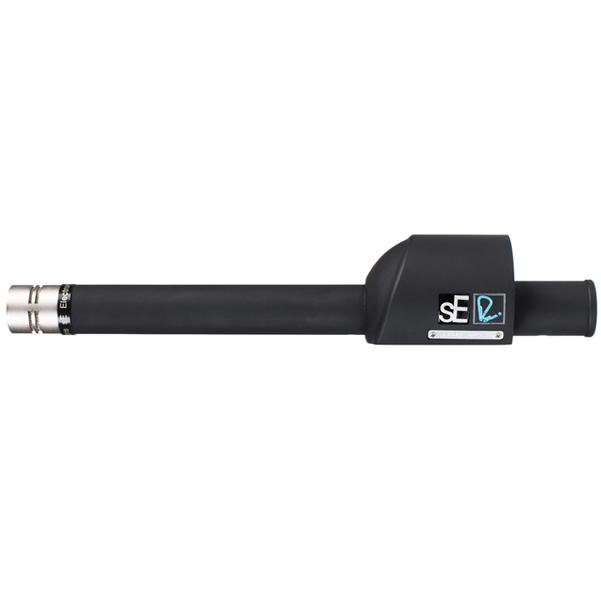

However, a tiny diaphragm usually results in a lack of low-frequency response How to counter this? THE MASSIVE TRANSFORMER Made obvious by the unusual chassis shape, the RN17's transformer is substantially larger than the norm.

This full-scale transformer was custom-designed by Rupert Neve specifically for this microphone - and nobody has been designing audio transformers longer (or better) than Rupert Neve With an audio transformer of this magnitude, the RN17 is able to put out astonishing clarity across ALL frequencies - not just the highs.

The midrange is detailed and forward, the lows are full and accurate, and the whole microphone has a balance and headroom never before achieved with a small-capsule microphone MATTE BLACK FINISH The matte black finish minimizes the level of visual attention drawn to the microphone when used on stage or in the studio, allowing it to blend into the background.

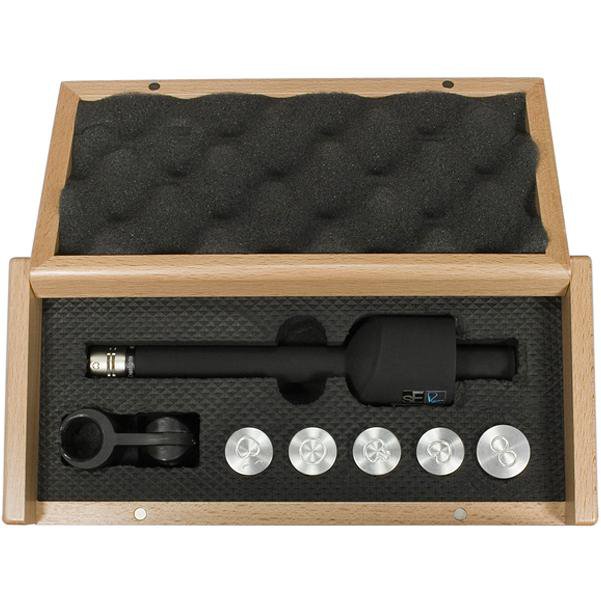

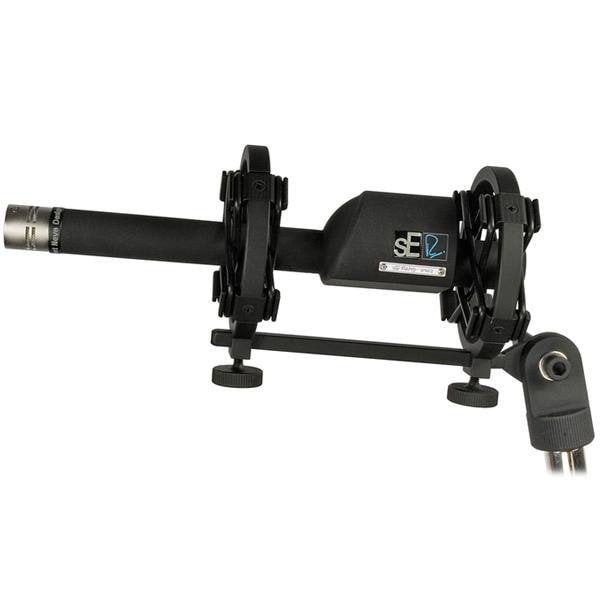

ADDITIONAL CAPSULES The RN17 ships standard with a cardioid capsule CUSTOM SHOCK MOUNT Every RN17 includes a custom-designed, sturdy, protective, and easy-to-use shock mount, which is essential to reducing the unwanted effects of vibration or knocks to the supporting microphone stand.

Specifications: Capsule Type: Hand-Crafted True Condenser Diaphragm: 17.2mm Gold/Mylar Directional Pattern: Cardioid (omnidirectional capsule available separately) Frequency range: 20 Hz - 20 kHz Impedance: 200 Ohms Sensitivity: 5.96 mV/Pa (-44.5dB) Sensitivity (Figure-8): 2.51 mV/Pa (-52dB) Max SPL: 131 dB (0.5% THD @ 1kHz) Signal to Noise Ratio: 76 dB Self Noise: 18 dB(A) (cardioid), 15 dB(A) (omni) Matching Connectors: XLR3F Power requirement: 48V phantom Weight: 320g / 11.32oz Diameter: 44 mm (transformer), 17mm (capsule) Length: 200 mm Made in China.

This product is returnable for an exchange only, In the event of transit damage, manufacturing defects, or product malfunction. Any product related issues like transit damage, manufacturing defects, or product malfunction reported within 15 days of delivery, will be eligible for a full replacement at no additional cost.

It is fully covered under the manufacturer’s standard warranty plan for a period of one (1) year from the date of purchase. This will be handled through BAJAAO and will be resolved under the manufacturer’s standard warranty policy. BAJAAO also provides an Additional Bajaao Standard Warranty which extends your standard warranty for an extra year.
