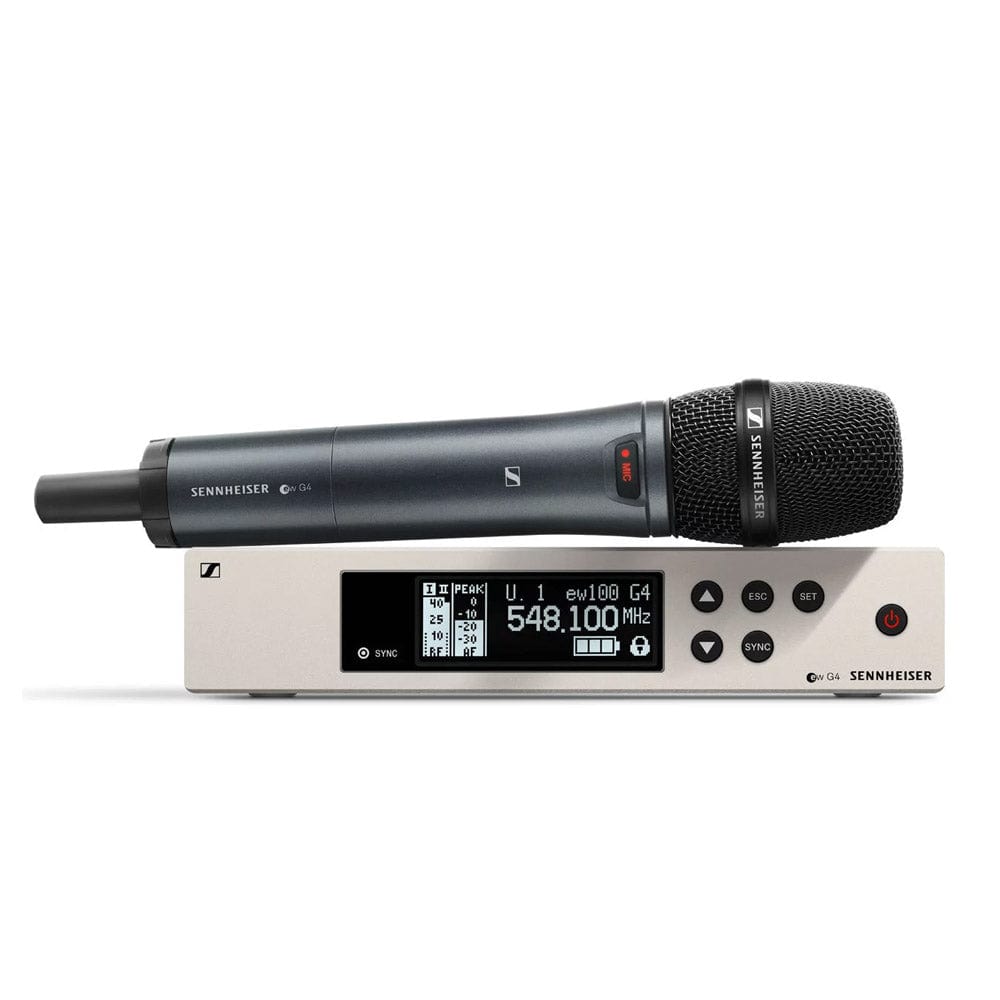

Sennheiser EW 100 G4-835-S All In One Wireless Microphone System - A-band - 516-558 MHz

Sennheiser EW 100 G4-835-S All In One Wireless Microphone System Frequency range: A-band (516 - 558 MHz) C Band : (734 - 776 MHz) Now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound Key Features Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.

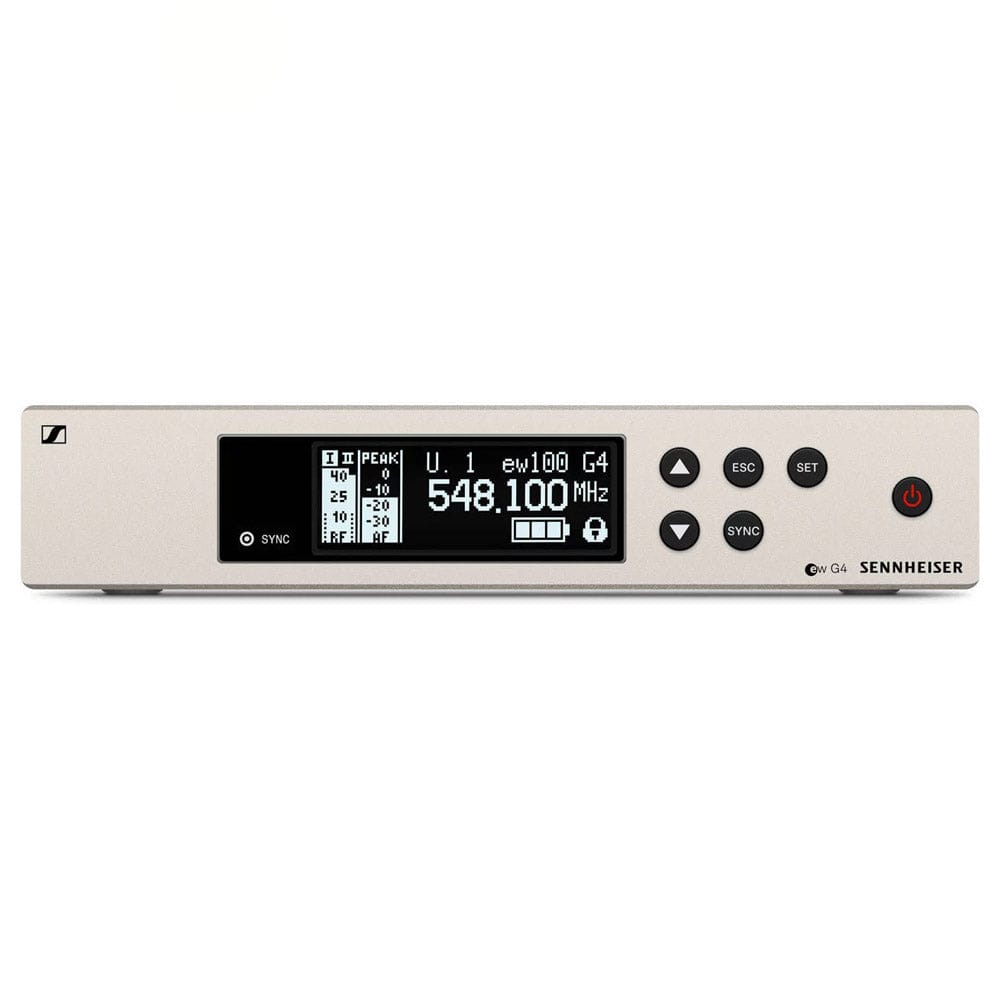

State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control Easy and flexible wireless synchronization between transmitter and receiver via infrared Fast frequency allocation for up to 12 receivers via new linking functionality Up to 20 compatible channels Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range Transmission Range: up to 100 meters / 300 feet High RF output power (up to 30 mW) depending on country regulations Specifications : Frequency range : A1: 470 - 516 MHz A: 516 - 558 MHz AS: 520 - 558 MHz GB: 606 - 648 MHz G: 566 - 608 MHz B: 626 - 668 MHz C: 734 - 776 MHz D: 780 - 822 MHz E: 823 - 865 MHz 1G8: 1785 - 1800 MHz JB: 806 - 810 MHz K+: 925 - 937,5 MHz Dimensions : Dimensions :Approx 190 x 212 x 43 mm Compander : Sennheiser HDX THD, total harmonic distortion : ≤ 0.9 % Weight : Approx.

980 g Audio output : 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu Specifications : Signal-to-noise ratio : ≥ 110 dBA Switching bandwidth : up to 42 MHz Peak deviation : ±48 kHz Nominal deviation : ±24 kHz Modulation : Wideband FM Power supply : 12 V DC Antenna connector : 2 BNC sockets Current consumption : 300 mA Adjacent channel rejection : Typically ≥ 65 dB Intermodulation attenuation : Typically ≥ 65 dB Receiving frequency : Max 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels RF sensitivity : < 2.5 μV for 52 dBA eff S/N Squelch : low: 5 dBµV middle: 15 dBµV high: 25 dBμV Equalizer Preset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz) Temperature Range : -10 °C to +55 °C Receiver Principle : True diversity Blocking : ≥ 70 dB SKM 100 G4-S Dimensions : Approx.

Ø 50 x 265 mm Compander : Sennheiser HDX THD, total harmonic distortion : ≤ 0.9 % Weight : (incl batteries) approx.

450 g Signal-to-noise ratio : ≥ 110 dBA RF output power : Max 30 mW Switching bandwidth : up to 42 MHz Peak deviation : ±48 kHz Nominal deviation : ±24 kHz Operating time : Typically 8 h Modulation : Wideband FM Power supply : 2 AA batteries, 1.5 V or BA 2015 accupack Current consumption at nominal voltage: typ.

180 mA with transmitter switched off: ≤ 25 µA Input impedance : 40 kΩ Max Input voltage : 3 Veff Powering : 3 V battery / 2.4 V rechargeable battery Transmission frequency Max.

1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels AF frequency response : 80 – 18,000 Hz Temperature Range : -10 °C to +55 °C Frequency stability : ≤ ±15 ppm : MMD 935-1 Sound pressure level (SPL) : 154 dB SPL Transducer principle : dynamic Pick-up pattern : cardioid Sensitivity : 2.5 mV/Pa Contents Included : EM 100 G4 true diversity receiver SKM 100 G4-S handheld transmitter MMD 835-1 microphone head (835-S variants only) MMD 845-1 microphone head (845-S variants only) MME 865-1 microphone head (865-S variants only) rackmount set MZQ 1 microphone clamp power supply 2 AA batteries 2 rod antennas RJ 10 cable quick guide safety guide manufacturer declaration sheet frequency supplement sheet Made in Germany.
