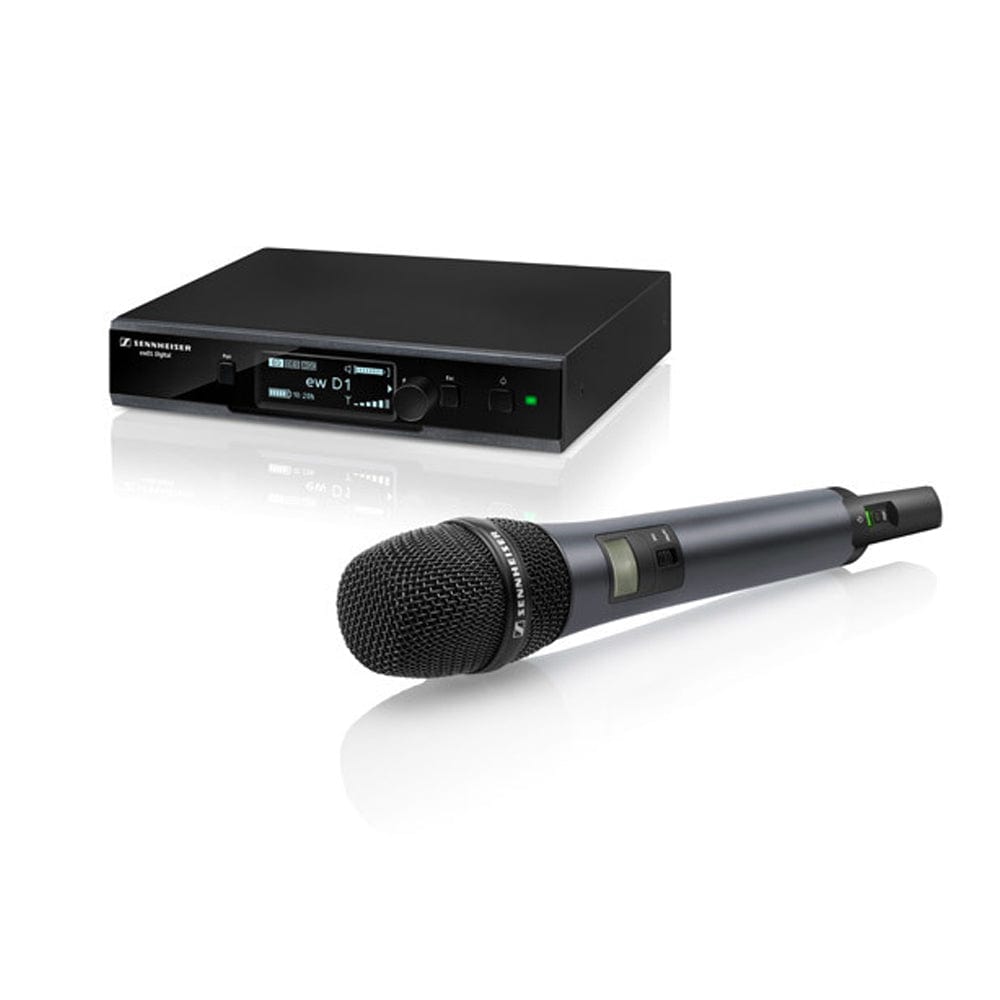

Sennheiser EW D1-845S NH Wireless Super Cardoid Vocal System - NH-NT

Sennheiser EW D1-845S-NH Wireless Super Cardoid Vocal System Overview : HD Live sound, highest range and the choice of various microphone heads from therenowned evolution series: with the digital D1 VOCAL SET, every singer has a systemwhose parts are perfectly attuned to one another Intelligent channel back-up allowsco-existence with Wi-Fi and Bluetooth.

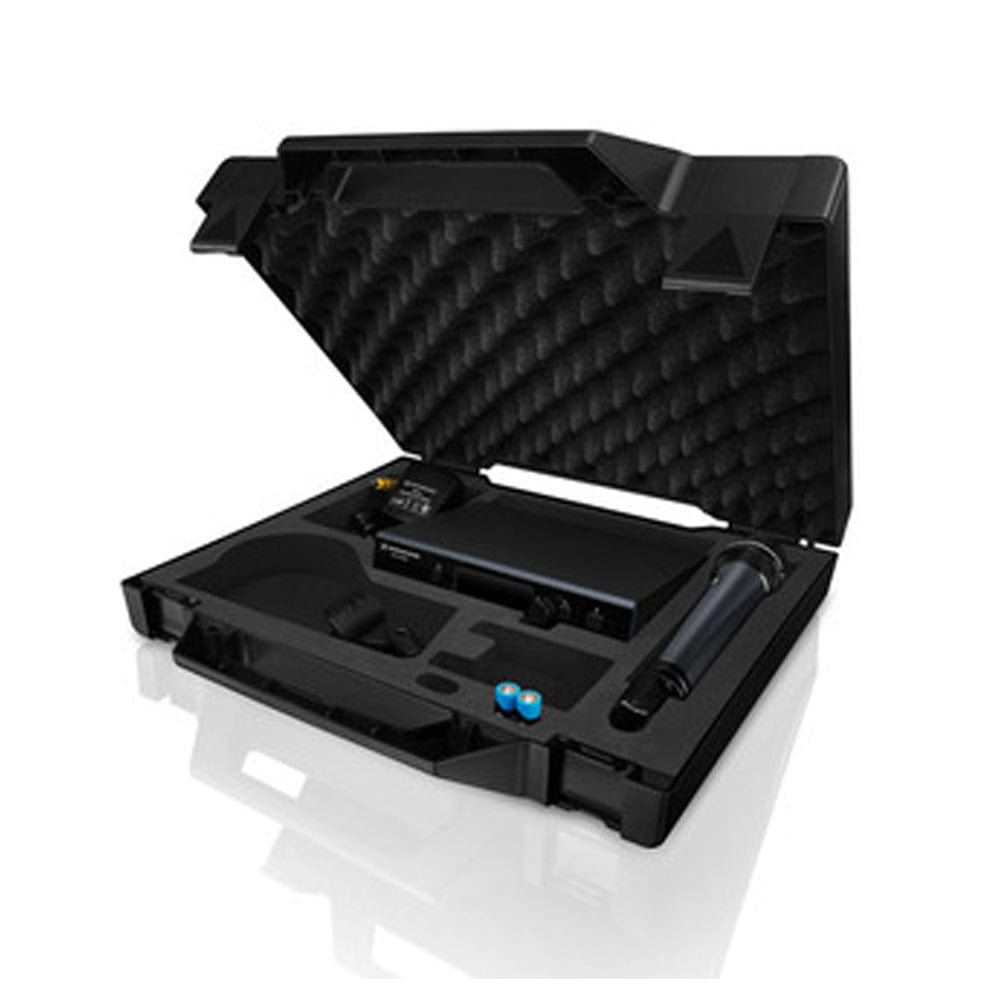

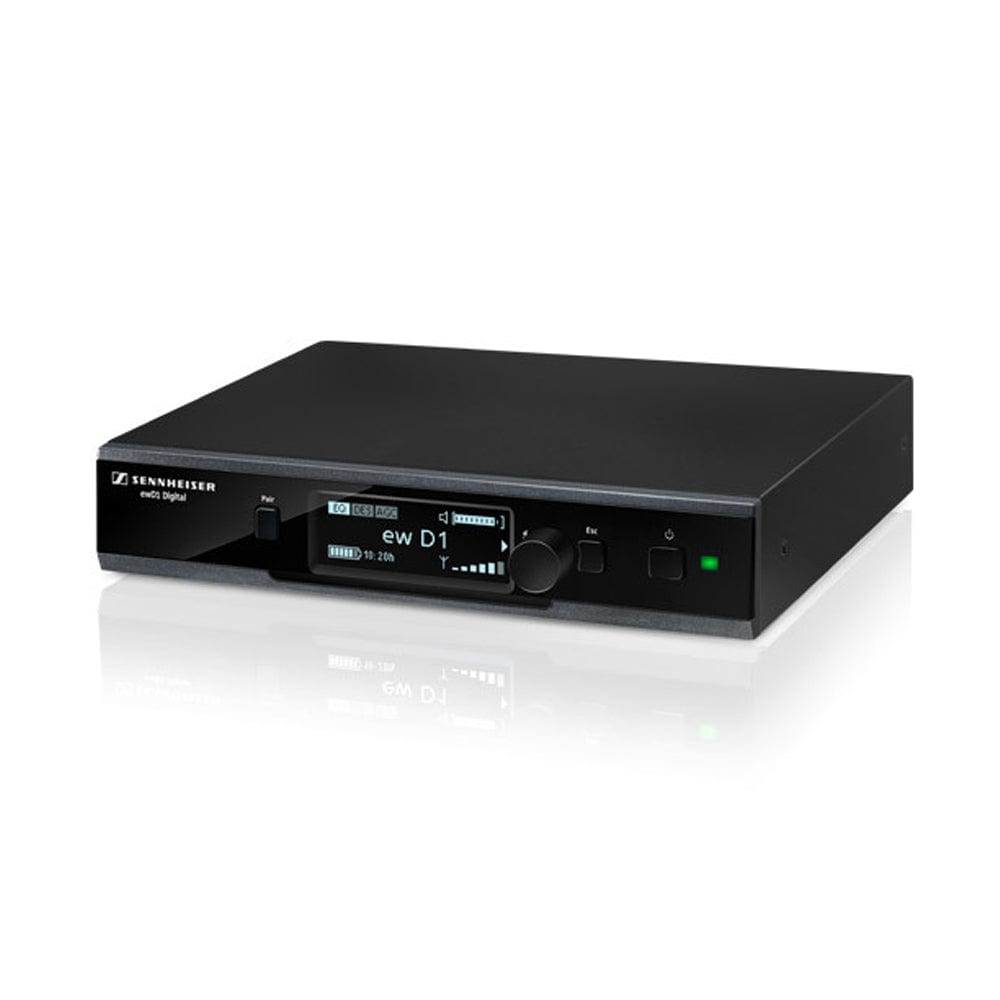

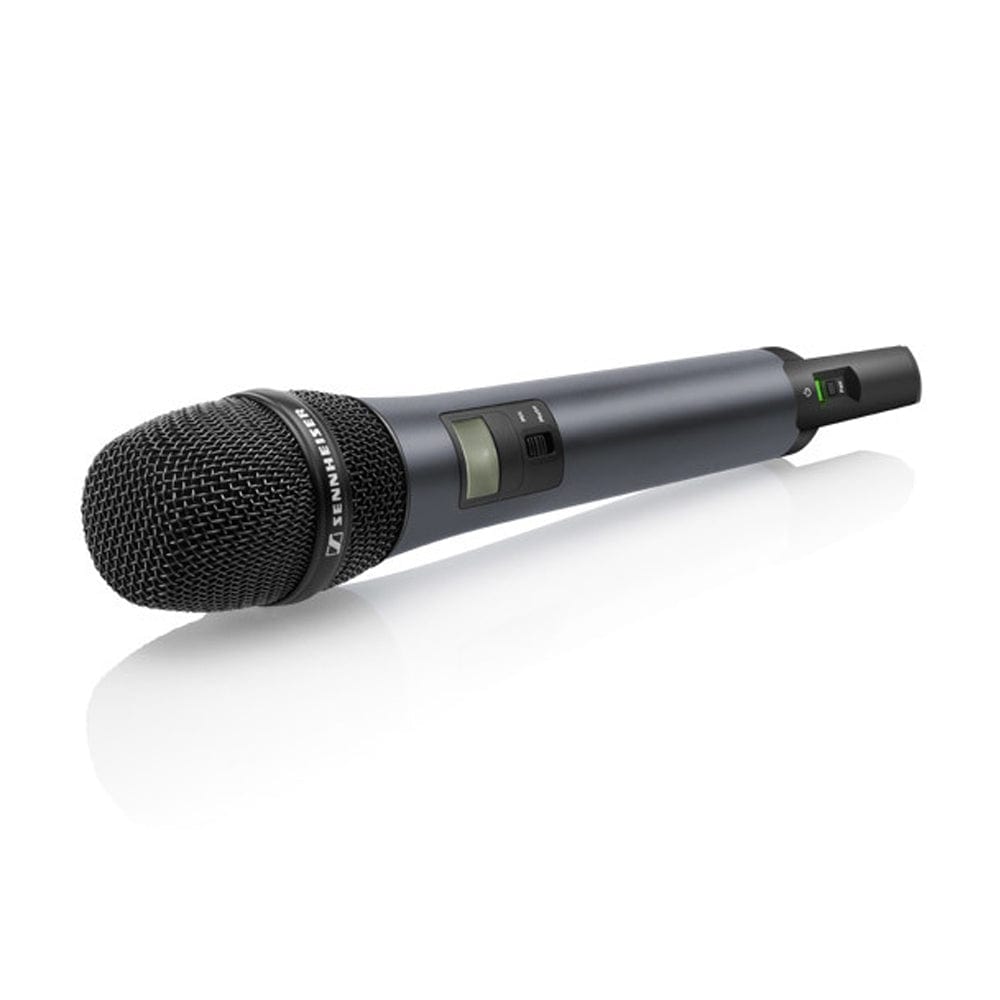

The system operates in a license-free 2.4 GHzband and can be monitored via remote control iOS app The system comes in a ruggedtransport case consisting of an EM D1 1/2 19“ rackmount receiver, an SKM D1 handheld transmitter, a microphone clamp, power supply, battery holder and 2 AA batteries.

Features : Choice of various microphone heads from the renowned evolution series Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band Automatic frequency management Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth Audio effects: equalizer, de-esser, automatic gain control iOS app for remote control and monitoring of the system Rugged metal housing Contents Included : EM D1 rackmount receiver SKM D1 handheld transmitter MZQ microphone clamp Power supply Battery holder 2 AA batteries Transport Case User Manual MMD 845-1 Microphone type dynamic Sensitivity 1.6 mV/Pa Pick-up pattern supercardioid Max SPL 154 dB SPL Specifications : AF frequency response : 20-20000hz Dynamic Range : >135 db (A) THD (1khz) : typ.

<0,1% Audio Sampling : 24 bit/48khz Signal-to-noise ratio : >105 db ( A) RF frequency ranges : 2400 to 2483.5 mhz Modulation : GFSK with back channel Transmission method : TDMA Time diversity Frequency diversity Fast switching antenna diversity Latency : 3.9ms Audio Codec : APT-X Live Temperature ranges : Relative air humidity max 95% Operation : -10~c to 55~c Storage : -20~c to 70~c RF Outputs : ew D1-845S-NH10 Vocal Set, e 845 switch, 10mW ew D1-845S-NH-NT Vocal Set, e 845 switch, 100mW EM D1 Weight approx : 824 g Audio output : Mic/line level switch –12 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu RF output power : back channel 10 mW/100 mW (country-specific) Power supply : 12 V DC hollow jack Antenna connector : 2 x Rev-SMA Current consumption : 350 mA Low-cut filter : –3 dB at 120 Hz RF sensitivity : <-90 dBm Connection : XLR/¼" (6.3 mm) jack Equalizer : 7-band graphic equalizer Automatic gain control (AGC) : compression/expansion with automatic make-up gain function Display OLED Network socket : RJ45 Network protocol : Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6 Made in Germany.
