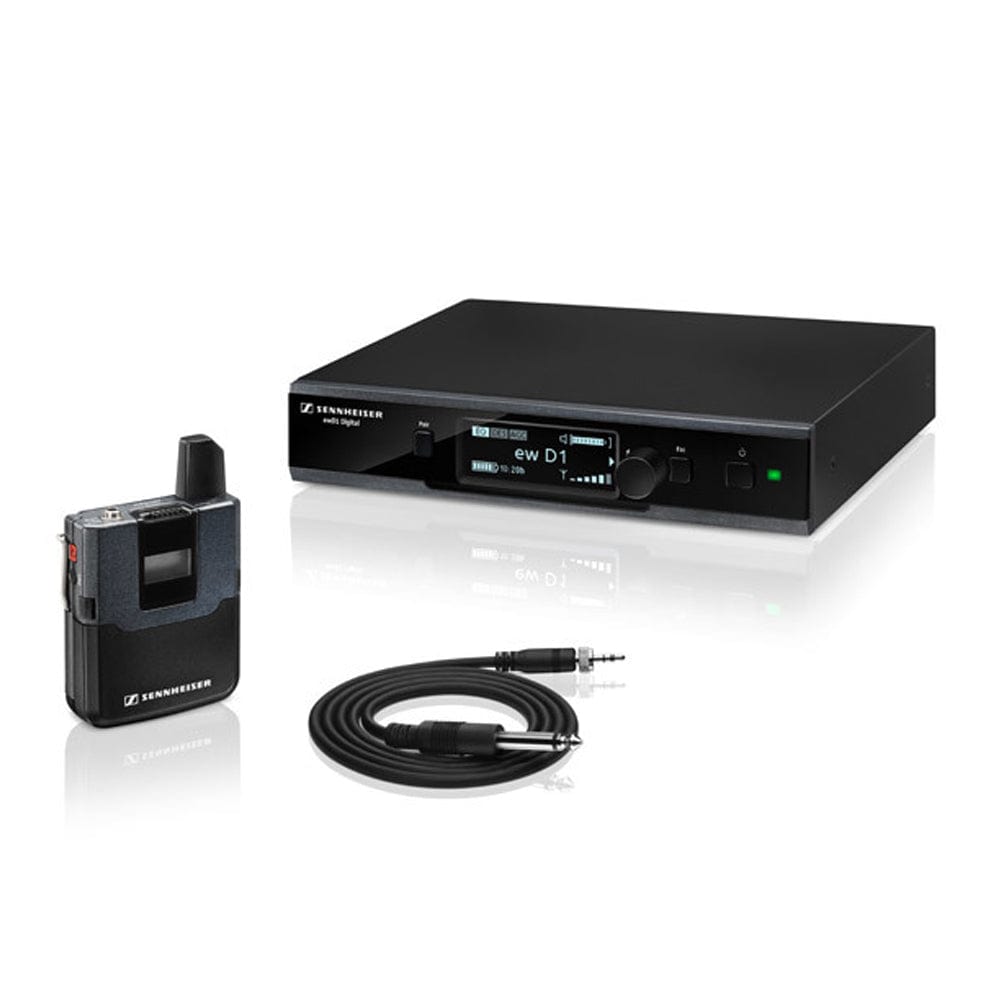

Sennheiser EW D1-CL1 NH-NT Wireless Musical Instrument System

Sennheiser EW D1-CL1 NH-NT Wireless Musical Instrument System Overview : evolution wireless D1 Instrument-Set with CI1 cable for live stage use evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness.

ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

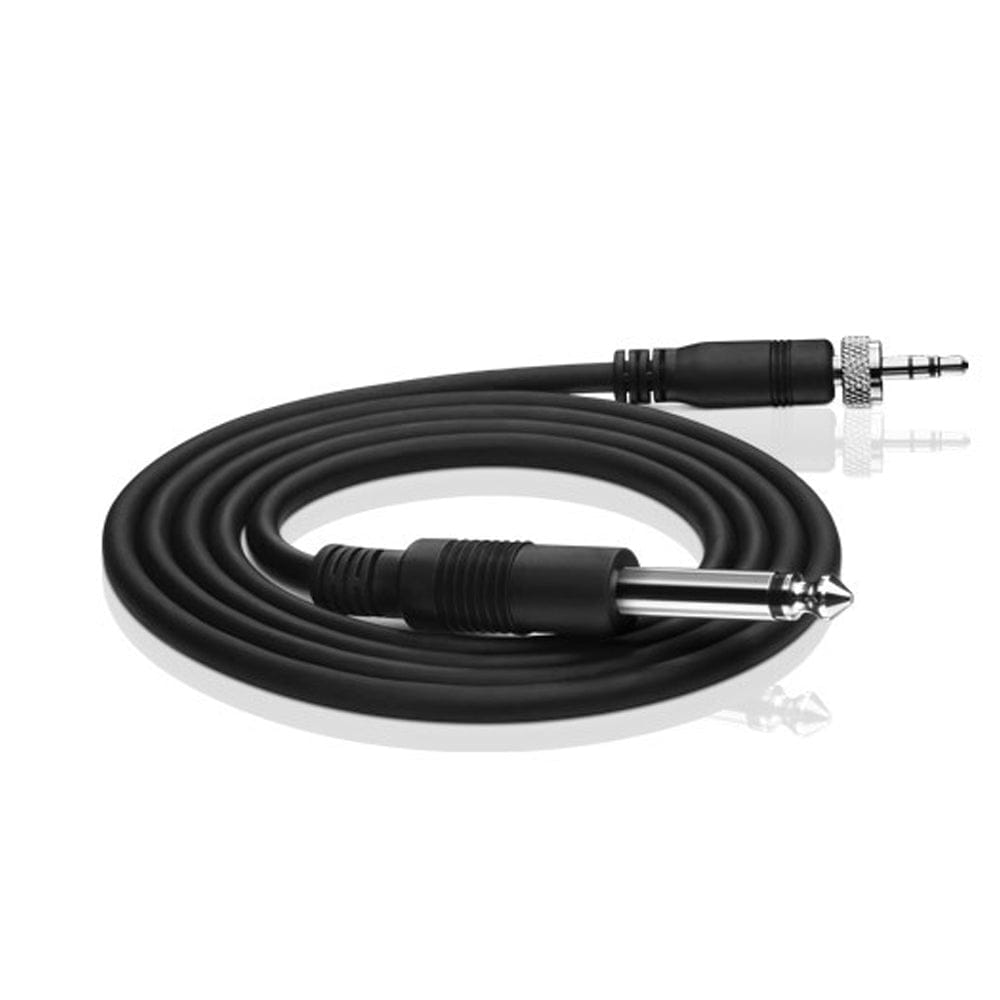

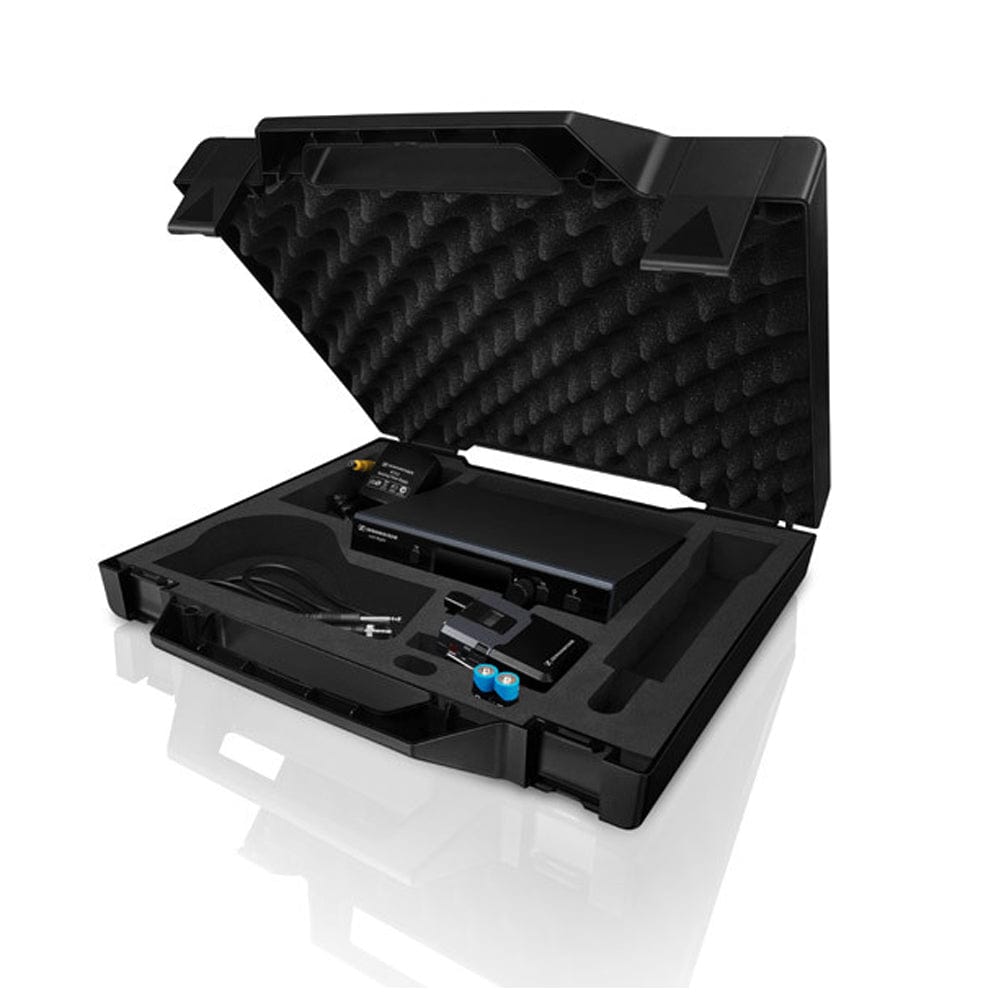

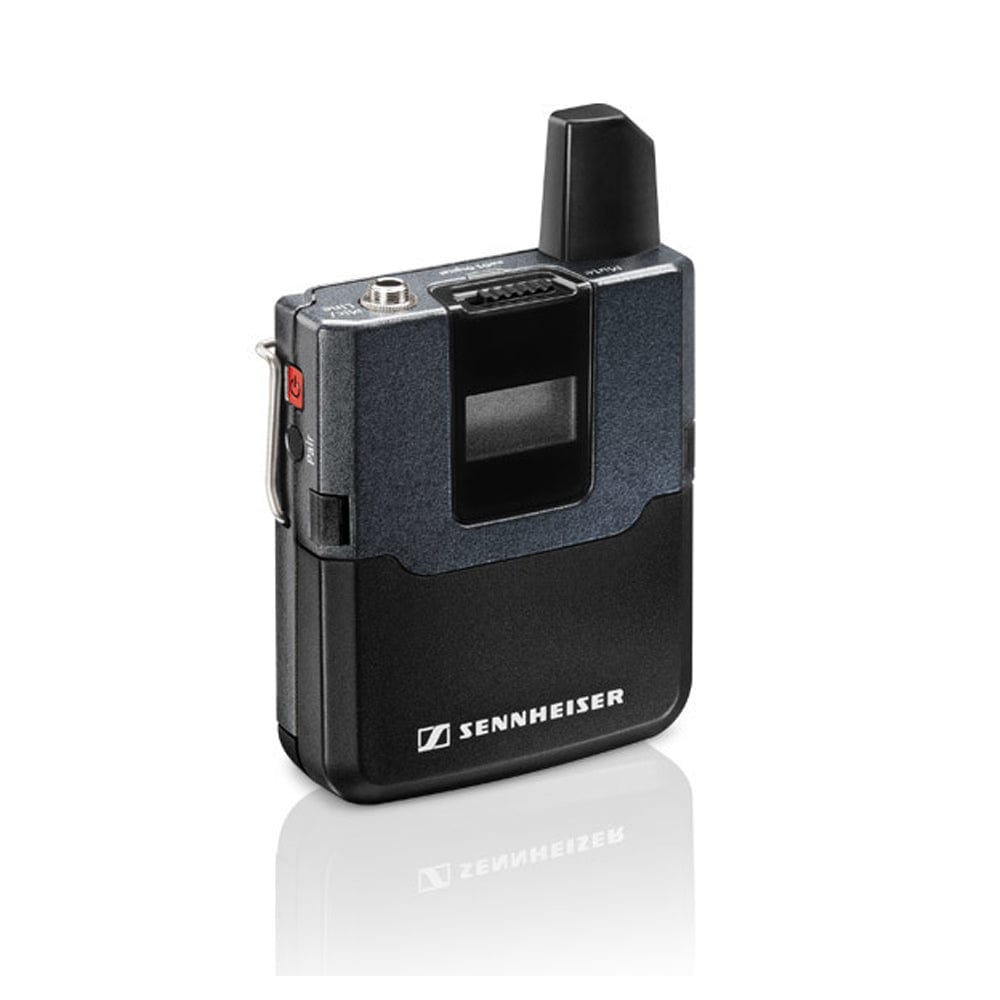

Features : Lightweight bodypack transmitter, robust guitar cable included Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band Automatic frequency management Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth Audio effects: equalizer, de-esser, automatic gain control iOS app for remote control and monitoring of the system Sturdy metal housing Contents Included : EM-D1 rackmount receiver SK-D1 bodypack transmitter CI 1 jack cable NT-12 power supply Transport Case User Manual SK D1 Specifications : Microphone Frequency response : 50 to 20,000 Hz Max input level : 2.2 V RMS Weight approx : 85 g RF output power : adaptive, up to 100 mW (country-specific) Battery Specification : 2 x AA size battery (1,5V), Operating time: typ.

6 h Input impedance : 1 MΩ Connection : 3.5 mm jack socket, lockable Line Frequency response : 20 to 20,000 Hz Max input level : 3.3 V RMS Input sensitivity : automatic sensitivity adjustment Accupack : BA 30 (Li-Ion, 3.7V), Operating time: typ.

11 h System THD, total harmonic distortion typ < 0,1 % Storage temperature – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics) Operating temperature Operation : – 10 °C to +55 °C (The temperature range is influenced by the battery characteristics) Signal-to-noise ratio : ≥ 105 dB (A) RF frequency range : 2,400 to 2,483.5 MHz Modulation : GFSK with back channel Codecs : APT-X Live Dynamic range : > 128 dB (A) Audio sampling : 24 bit/48 kHz Transmission method : TDMA, time diversity, frequency diversity, fast switching antenna diversity Latency : 3.9 ms AF frequency response : 20 to 20.000 Hz EM D1 Weight approx : 824 g Audio output : Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu RF output power : back channel 10 mW/100 mW (country-specific) Power supply : 12 V DC hollow jack Current consumption : 350 mA Deviation display : OLED Low-cut filter : –3 dB at 120 Hz RF sensitivity : <-90 dBm Connection : XLR/¼" (6.3 mm) jack Equalizer : 7-band graphic equalizer Automatic gain control (AGC) : compression/expansion with automatic make-up gain function Antenna Connector : 2 x Rev-SMA Network socket : RJ45 Network protocol : Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6 Made in Germany.
