Sennheiser EW D1-ME2 NH Wireless Lavalier Microphone Digital System - NH-NT

Sennheiser EW D1-ME2 NH Wireless Lavalier Microphone Digital System Overview : Evolution wireless D1 Lavalier-Set with ME 2 lavalier microphone for live stage use evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness.

ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

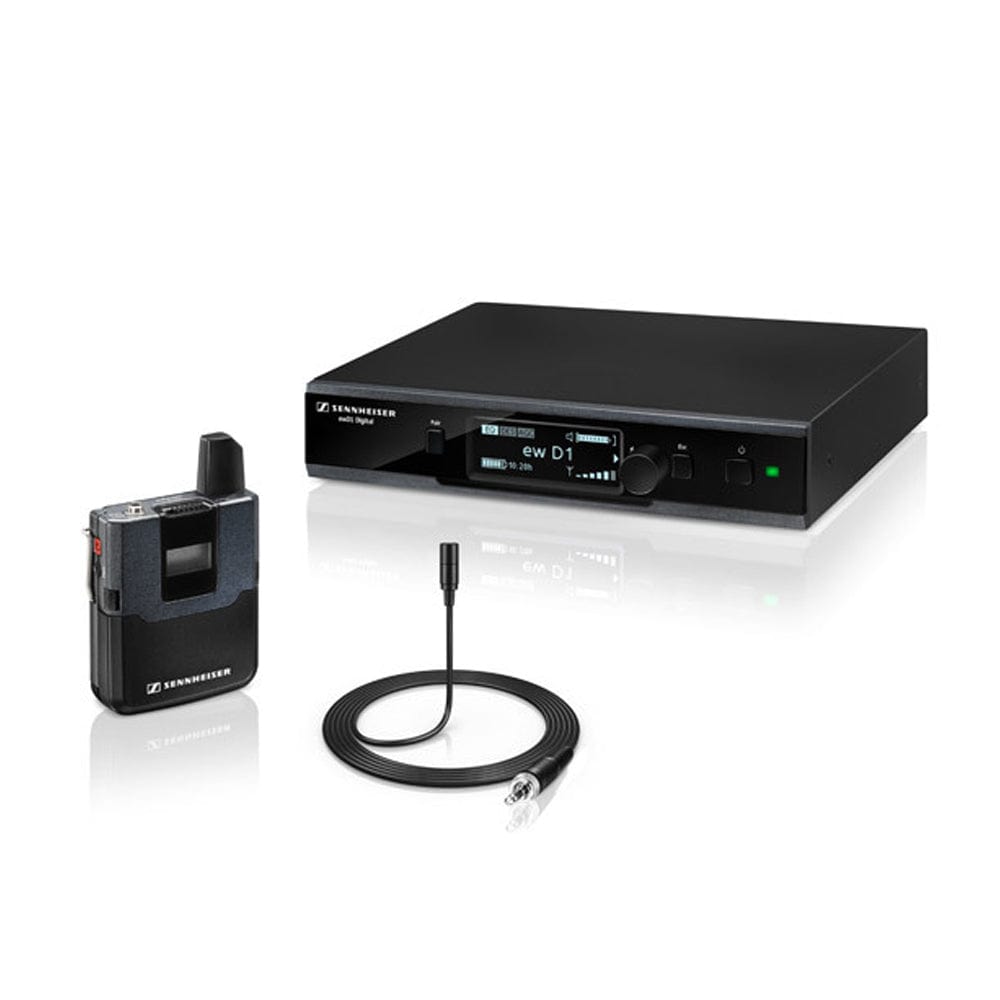

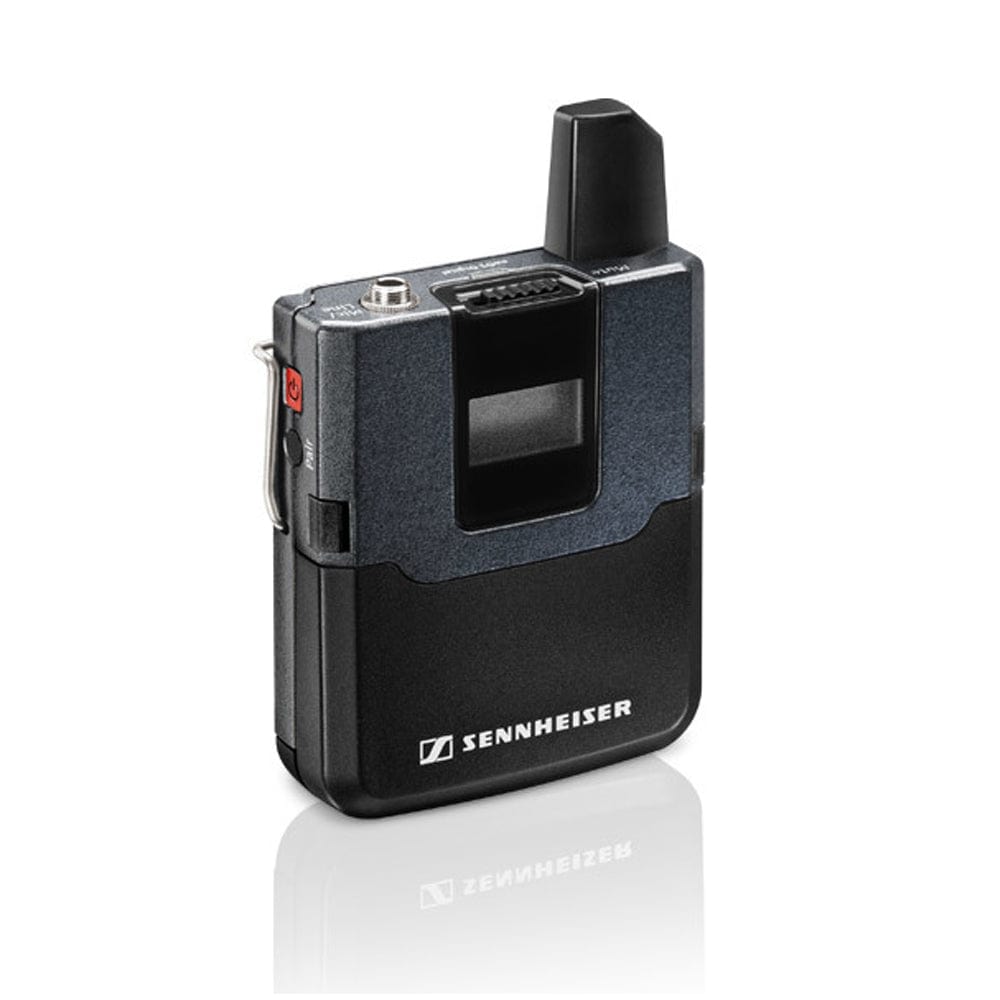

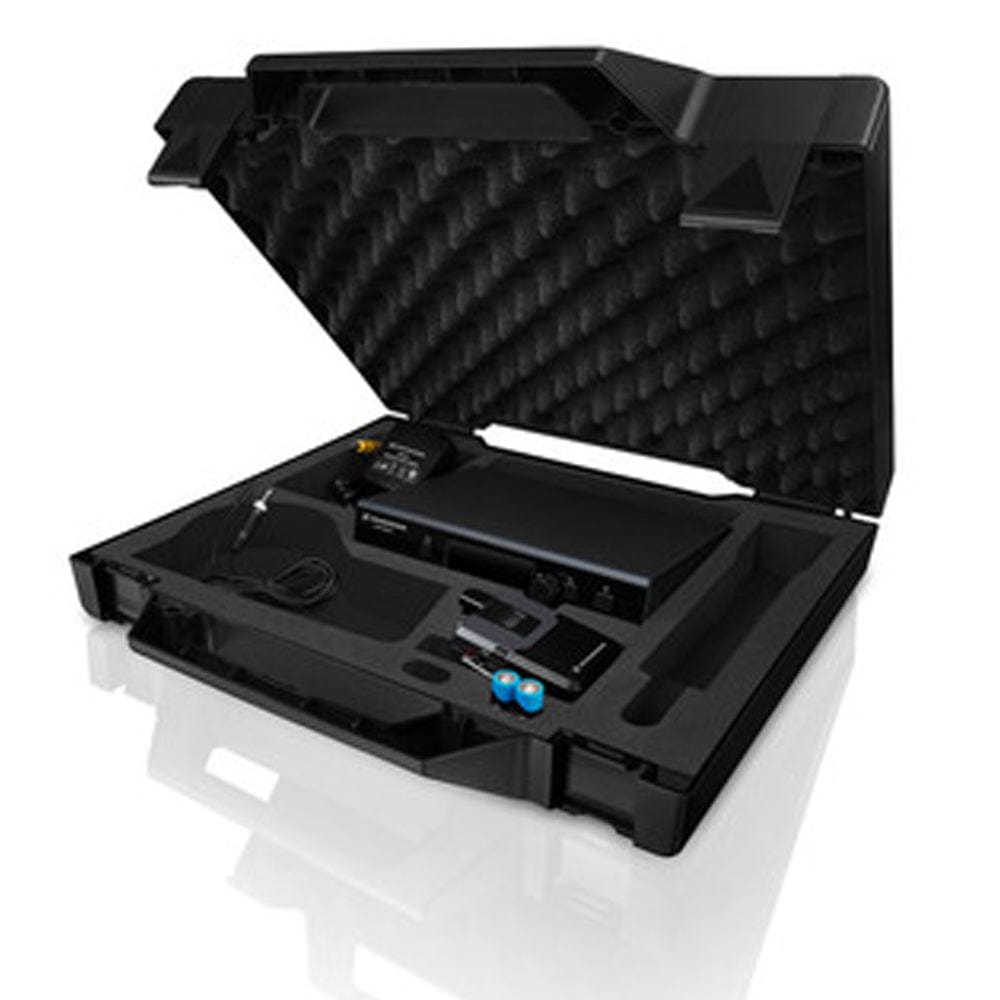

Features : Unobtrusive professional clip-on microphone Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band Automatic frequency management Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth Audio effects: equalizer, de-esser, automatic gain control iOS app for remote control and monitoring of the system Sturdy metal housing Contents Included EM-D1 rackmount receiver SK-D1 bodypack transmitter ME 2 clip-on microphone NT-12 power supply Transport Case User Manual Specifications : SK D1 Microphone 50 to 20,000 Hz 2.2 V RMS Weight approx 85 g RF output power adaptive, up to 100 mW (country-specific) Battery Specification 2 x AA size battery (1,5V) Input impedance 1 MΩ Connection 3.5 mm jack socket, lockable Line 20 to 20,000 Hz 3.3 V RMS Input sensitivity automatic sensitivity adjustment Accupack BA 30 (Li-Ion, 3.7V) ME 2 Microphone pre-polarized condenser Max.

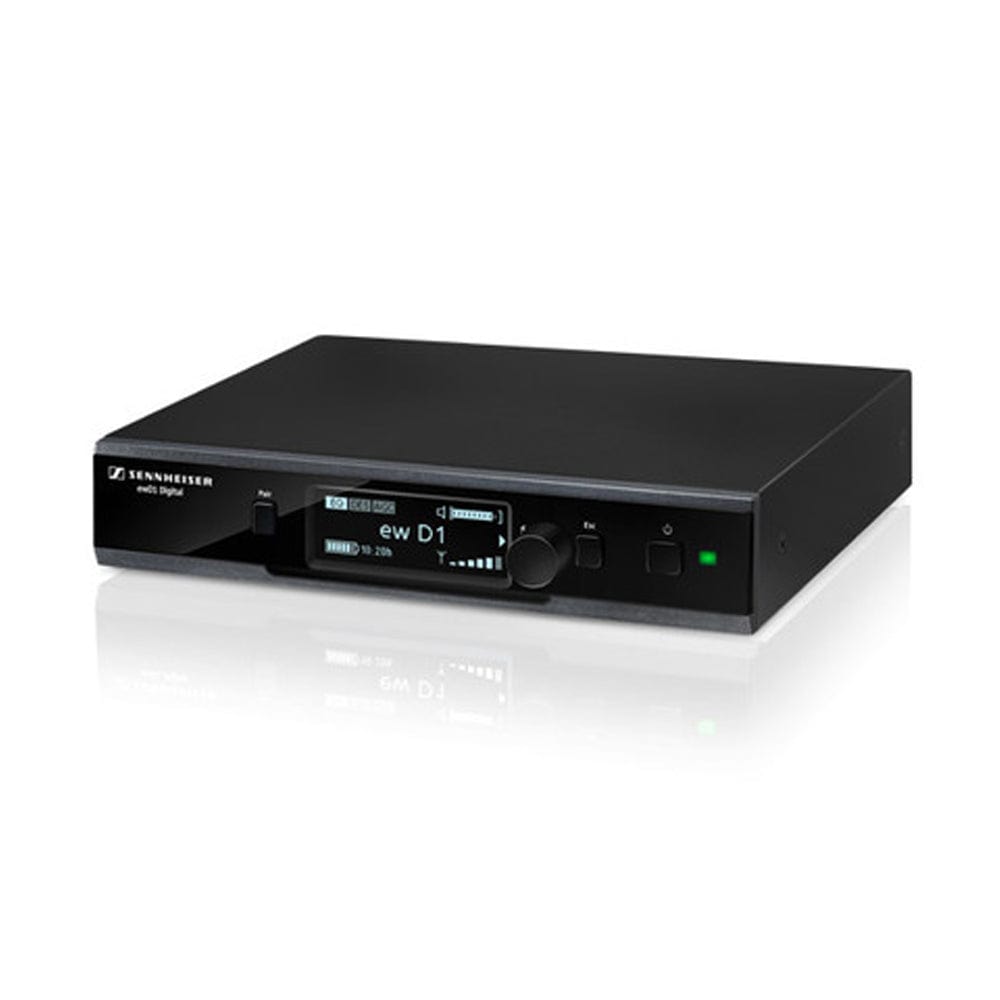

sound pressure level 130 dB SPL Pick-up pattern omni-directional Sensitivity 20 mV/Pa System THD, total harmonic distortion typ < 0,1 % Storage temperature – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics) Operating temperature – 10 °C to +55 °C Signal-to-noise ratio ≥ 105 dB (A) RF frequency range 2,400 to 2,483.5 MHz Modulation GFSK with back channel Dynamic range > 135 dB (A) Audio sampling 24 bit/48 kHz Transmission method TDMA, time diversity, frequency diversity, fast switching antenna diversity Latency 3.9 ms Audio codec APT-X Live AF frequency response 20 to 20.000 Hz EM D1 Weight approx : 824 g Audio output : Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu RF output power back channel : 10 mW/100 mW (country-specific) Power supply : 12 V DC hollow jack Antenna connector : 2 x Rev-SMA Current consumption : 350 mA Low-cut filter : –3 dB at 120 Hz RF sensitivity : <-90 dBm Connection XLR : /¼" (6.3 mm) jack Equalizer : 7-band graphic equalizer Automatic gain control (AGC) : compression/expansion with automatic make-up gain function Display OLED Network socket : RJ45 Network protocol : Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6 Made in Germany.
