Sennheiser EW D1-ME3 NH NT Wireless Headworn Microphone System

Sennheiser EW D1-ME3 Wireless Headworn Microphone System Overview : evolution wireless D1 Headmic-Set with ME 3-II headmic for live stage use evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness.

ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

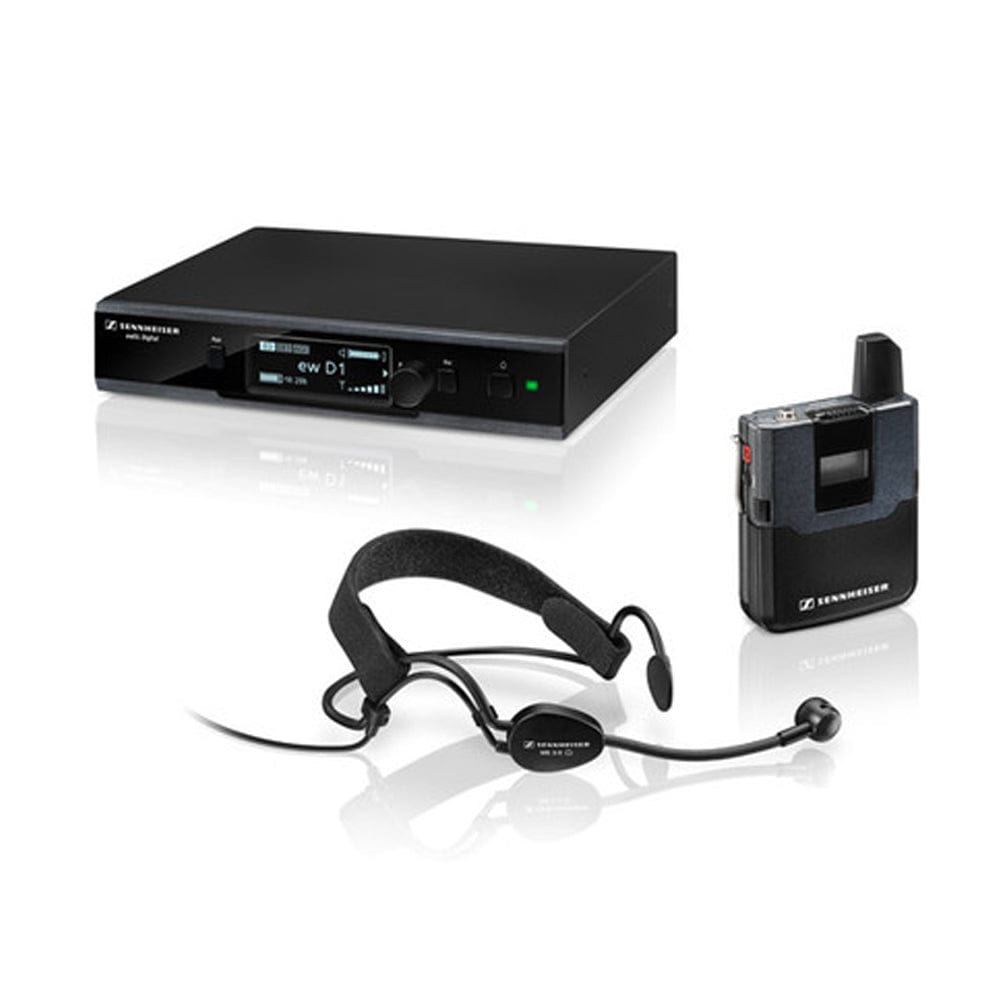

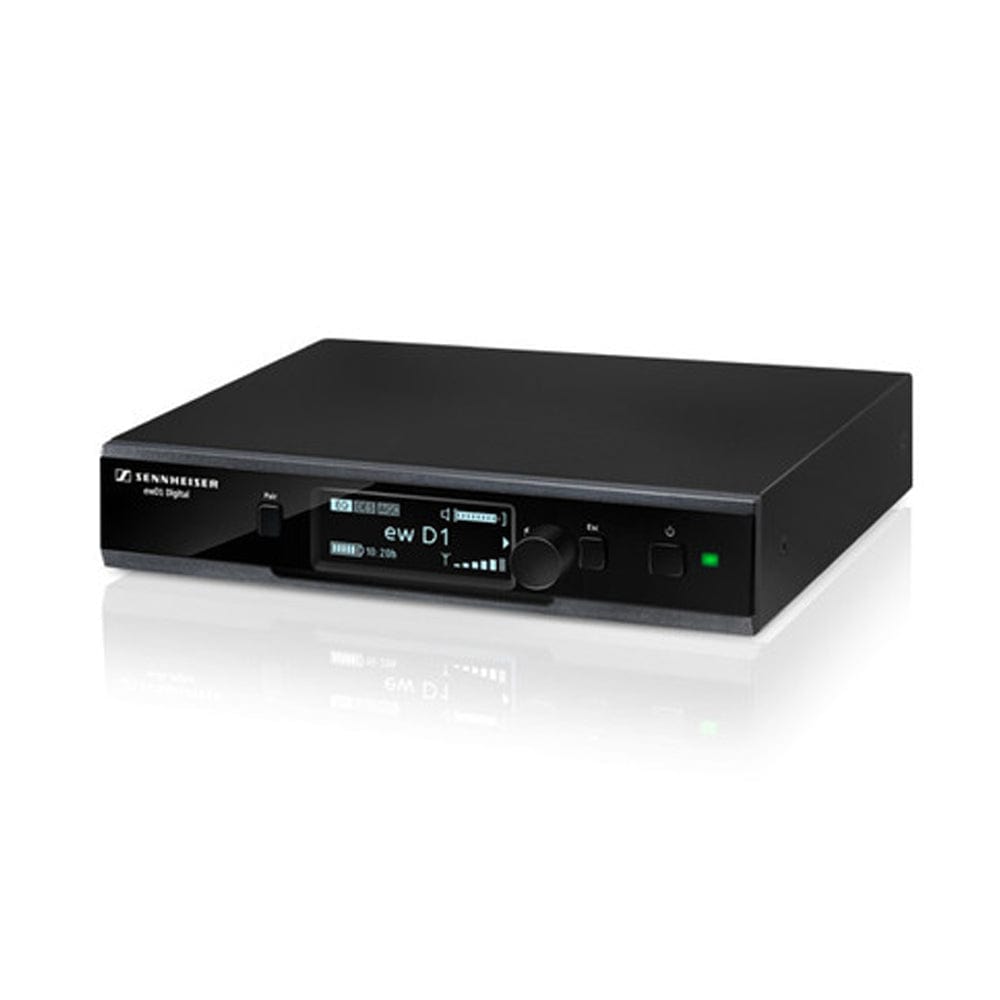

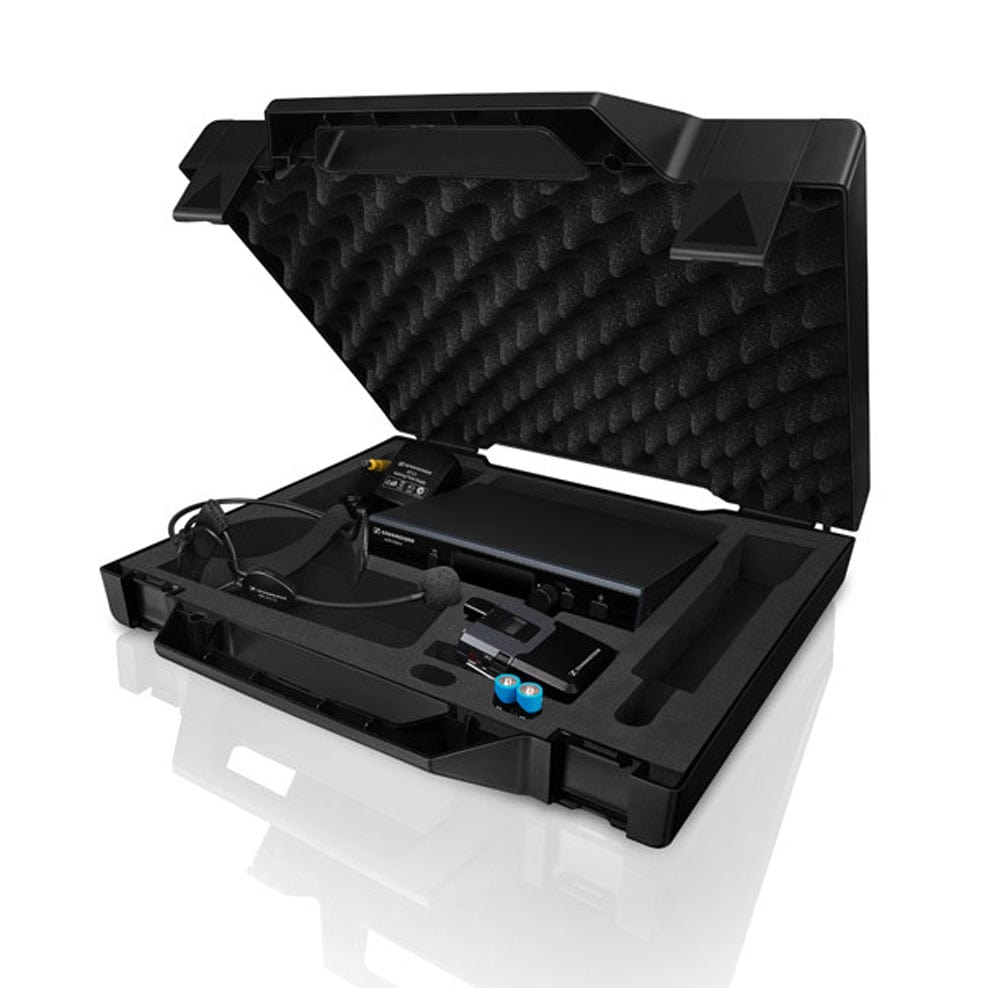

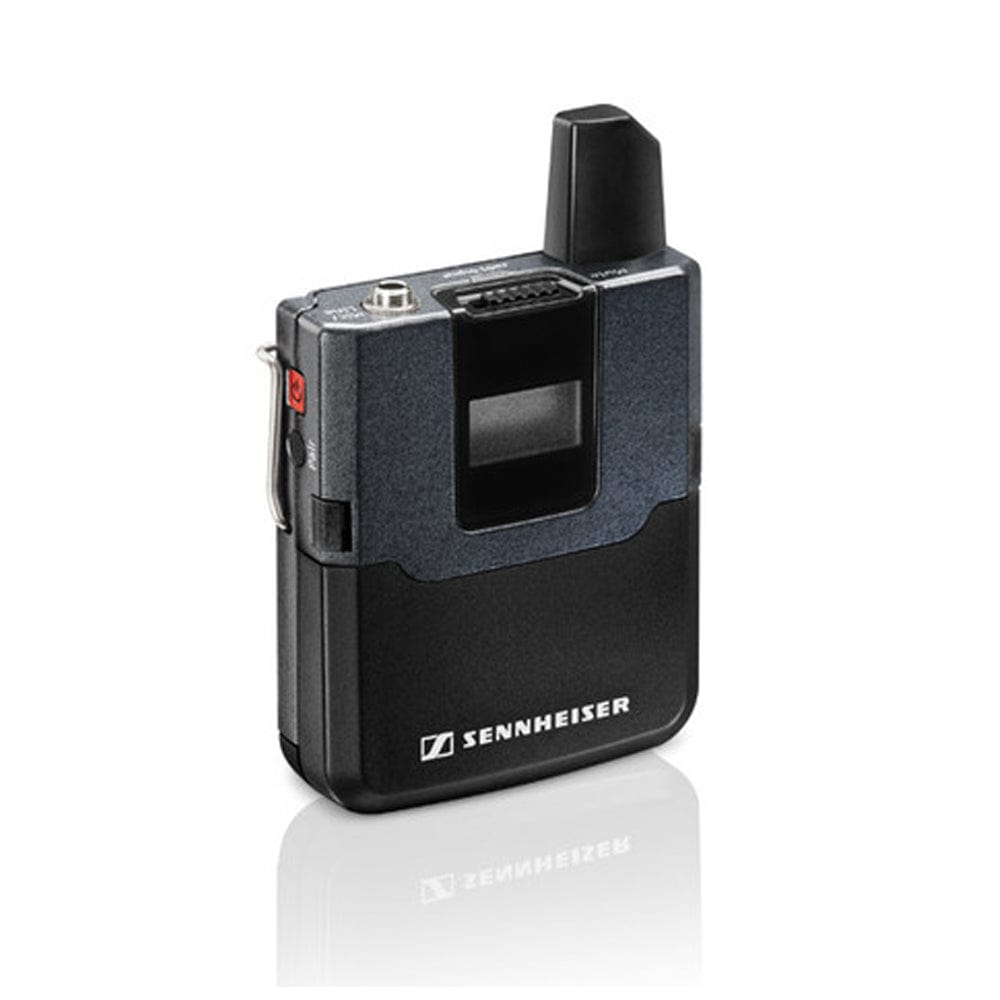

Features : Lightweight and robust: headset microphone for excellent speech intelligibility Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band Automatic frequency management Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth Audio effects: equalizer, de-esser, automatic gain control iOS app for remote control and monitoring of the system Sturdy metal housing Contents Included : EM-D1 rackmount receiver SK-D1 bodypack transmitter ME 3-II headset microphone NT-12 power supply Transport Case User Manual Specifications : SK D1 Microphone Frequency response: 50 to 20,000 Hz Max input level: 2.2 V RMS Weight approx.: 85 g (w/o batteries) RF output power : adaptive up to 100mW, 10mW fix (country-specific) Battery Specification : 2 x AA size battery (1,5V), Operating time : typ.

6 h Input impedance : 1 MΩ Connection : 3.5 mm jack socket, lockable Line Frequency response : 20 to 20,000 Hz Max input level : 3.3 V RMS Input sensitivity : automatic sensitivity adjustment Accupack : BA 30 (Li-Ion, 3.7V), Operating time: typ.

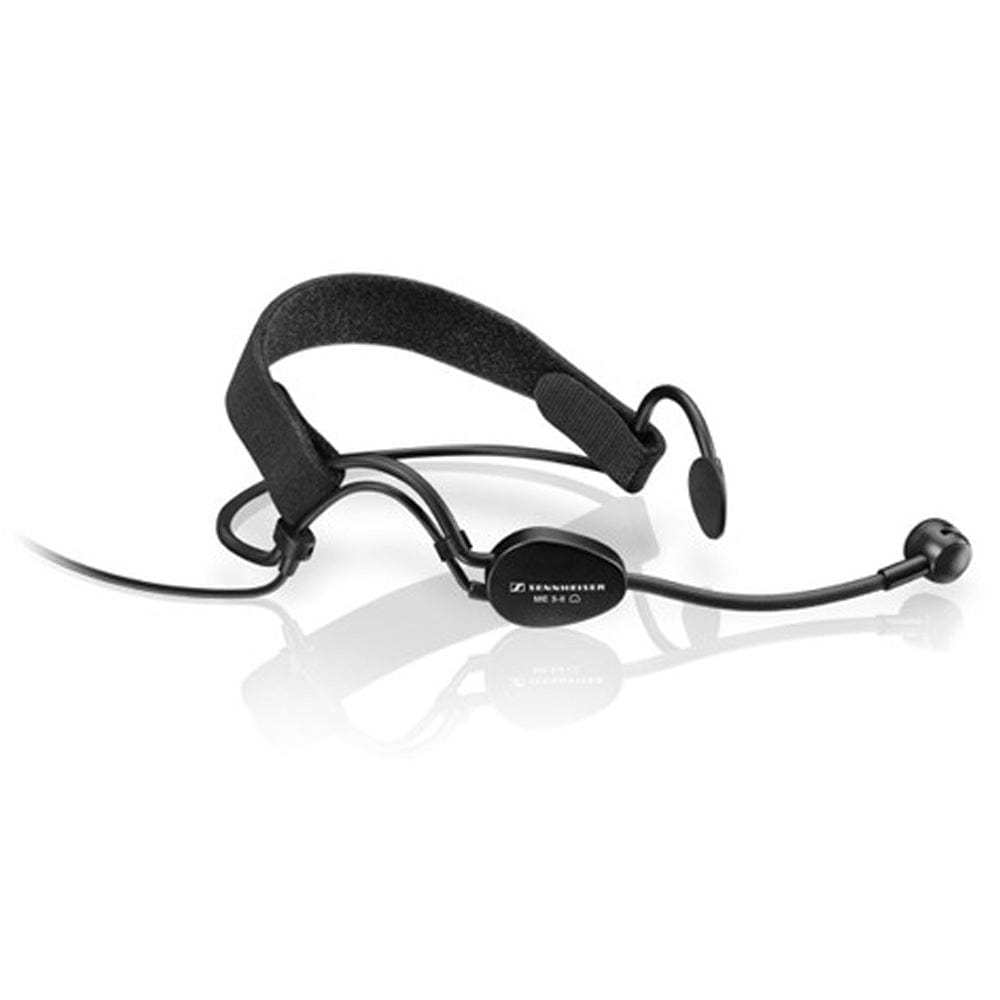

11 h ME 3 II Microphone : pre-polarized condenser Max sound pressure level : 150 dB SPL Pick-up pattern : cardioid System THD, total harmonic distortion typ.

< 0,1 % Storage temperature Storage : – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics) Operating temperature Operation : – 10 °C to +55 °C Signal-to-noise ratio : ≥ 105 dB (A) RF frequency range : 2,400 to 2,483.5 MHz Modulation GFSK with back channel Dynamic range : > 135 dB (A) Audio sampling : 24 bit/48 kHz Transmission method TDMA, time diversity, frequency diversity, fast switching antenna diversity Latency : 3.9 ms Audio codec : APT-X Live AF frequency response : 20 to 20.000 Hz EM D1 Weight approx : 824 g Audio output : Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu RF output power : Back channel 10mW/100mW (country-specific) Made in Germany.
