Sennheiser XSW 1-825 Wireless Vocal Microphone System - A: 548-572 MHz

Sennheiser XSW 1-825 Wireless Vocal Microphone System Overview : Raise your voice Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.

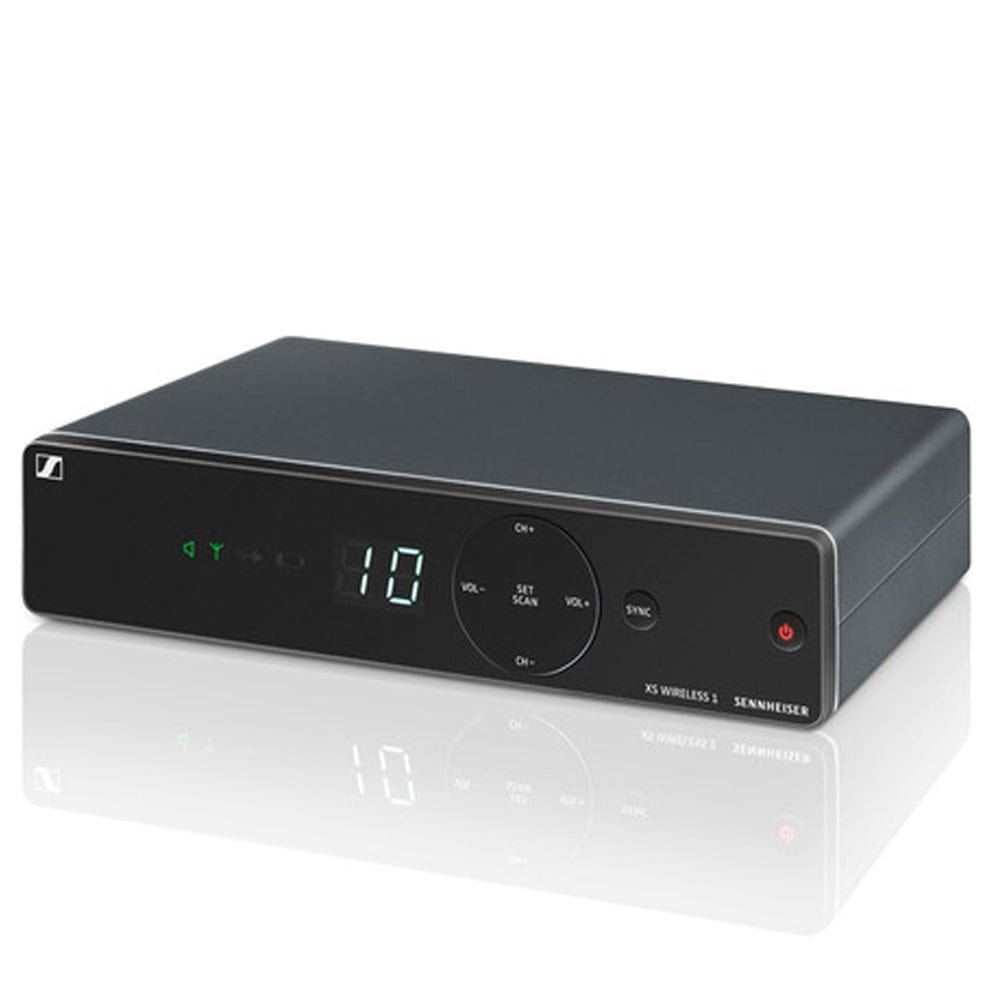

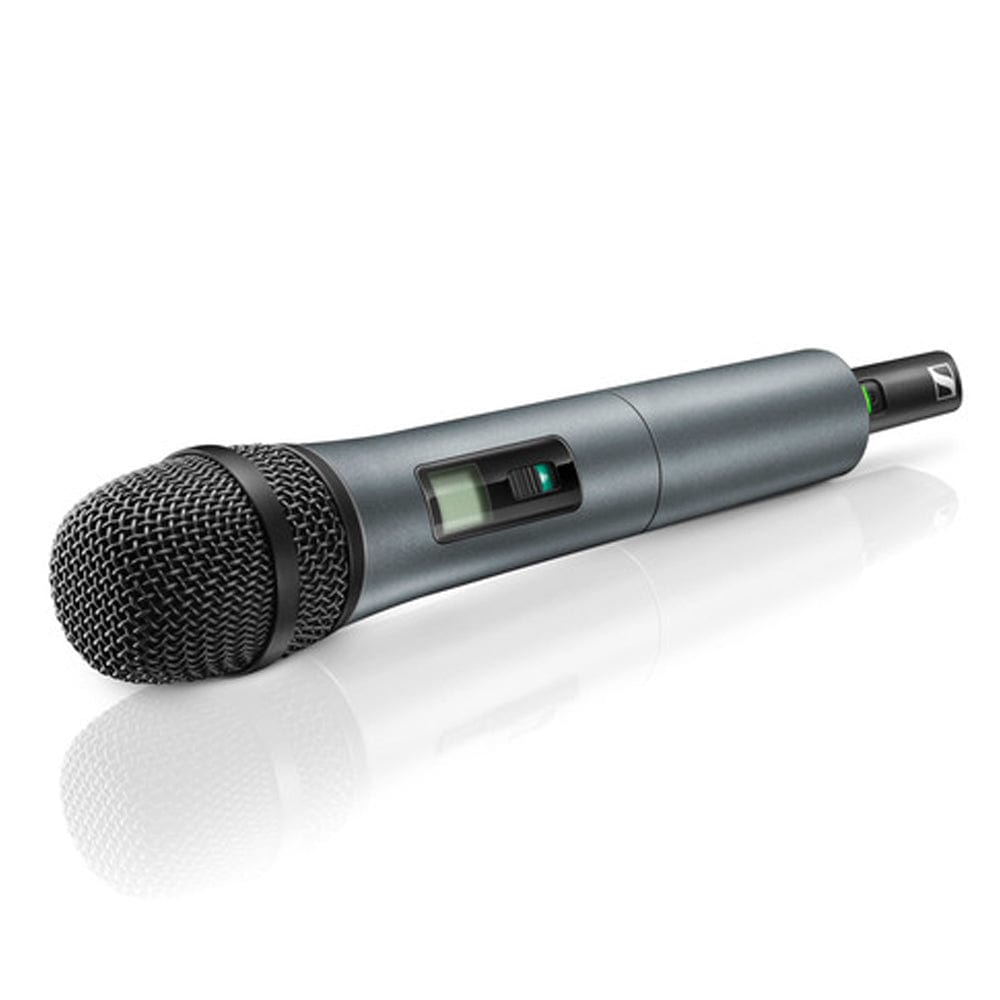

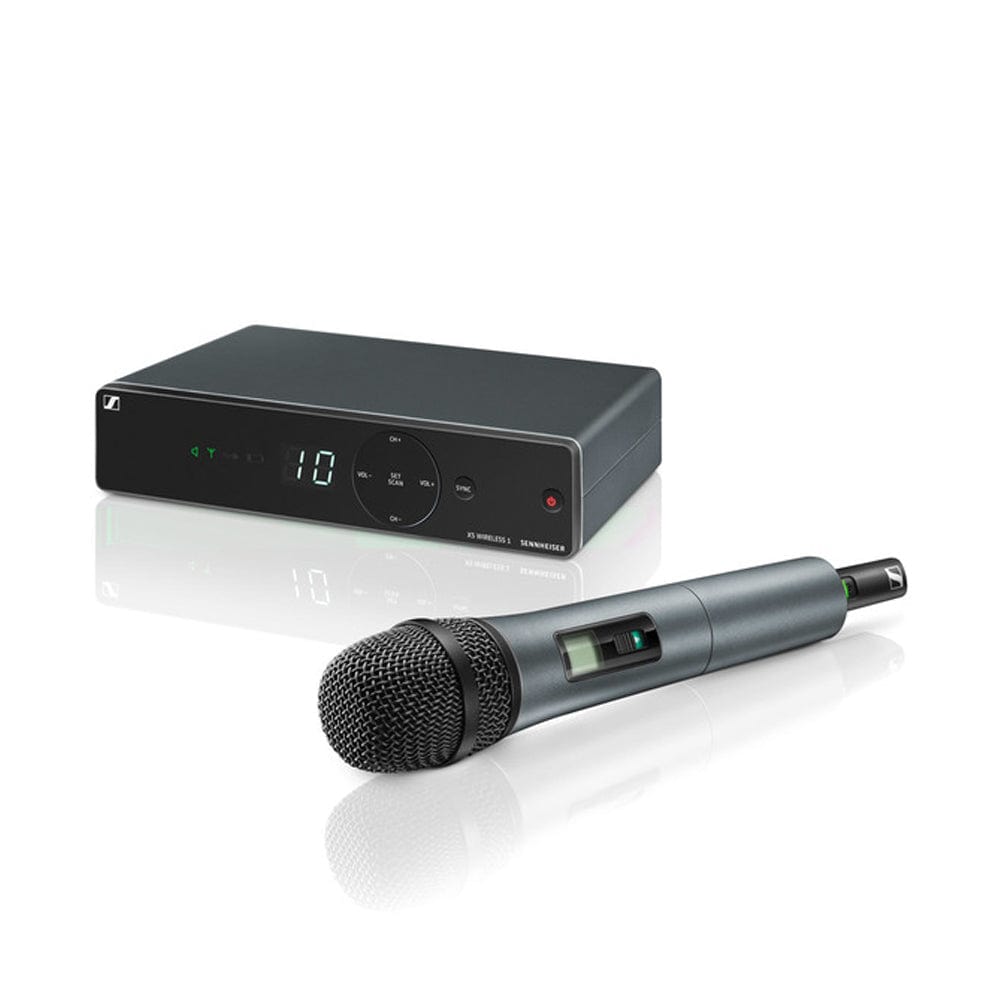

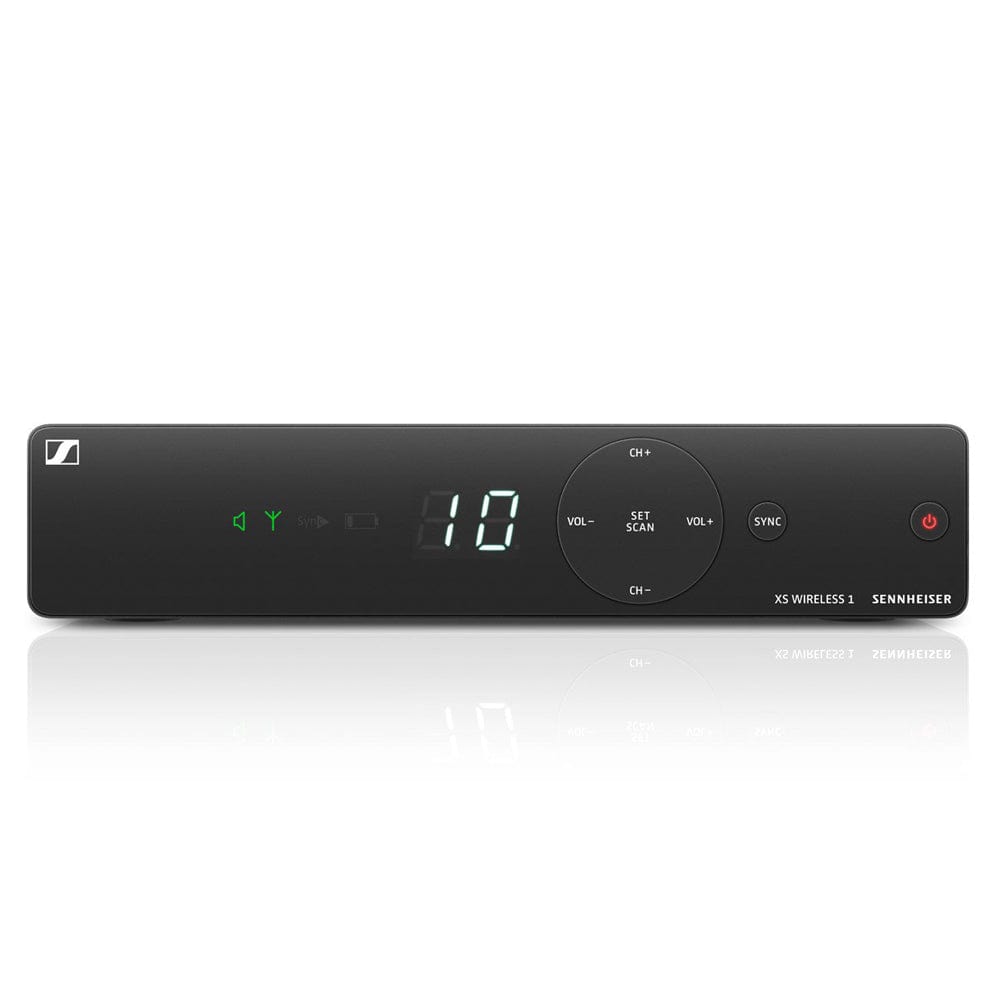

The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid)  to get started The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Features : Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules e825 Antenna-switching diversity reception Integrated antennas Automatic frequency management and synchronization via remote channel for easy setup Selectable UHF frequencies within a large bandwidth Up to 10 compatible channels Contents included : 1 receiver EM-XSW 1 1 handheld transmitter SKM 825-XSW 1 microphone clamp MZQ 1 1 power supply NT 12-5 CW 2 AA batteries Specifications : Dimensions approx 200 x 42 x 127 mm THD, total harmonic distortion ≤ 0.9% Pick-up pattern cardioid Signal-to-noise ratio ≥ 103 dBA RF output power 10 mW Switching bandwidth up to 24 MHz Operating time approx.

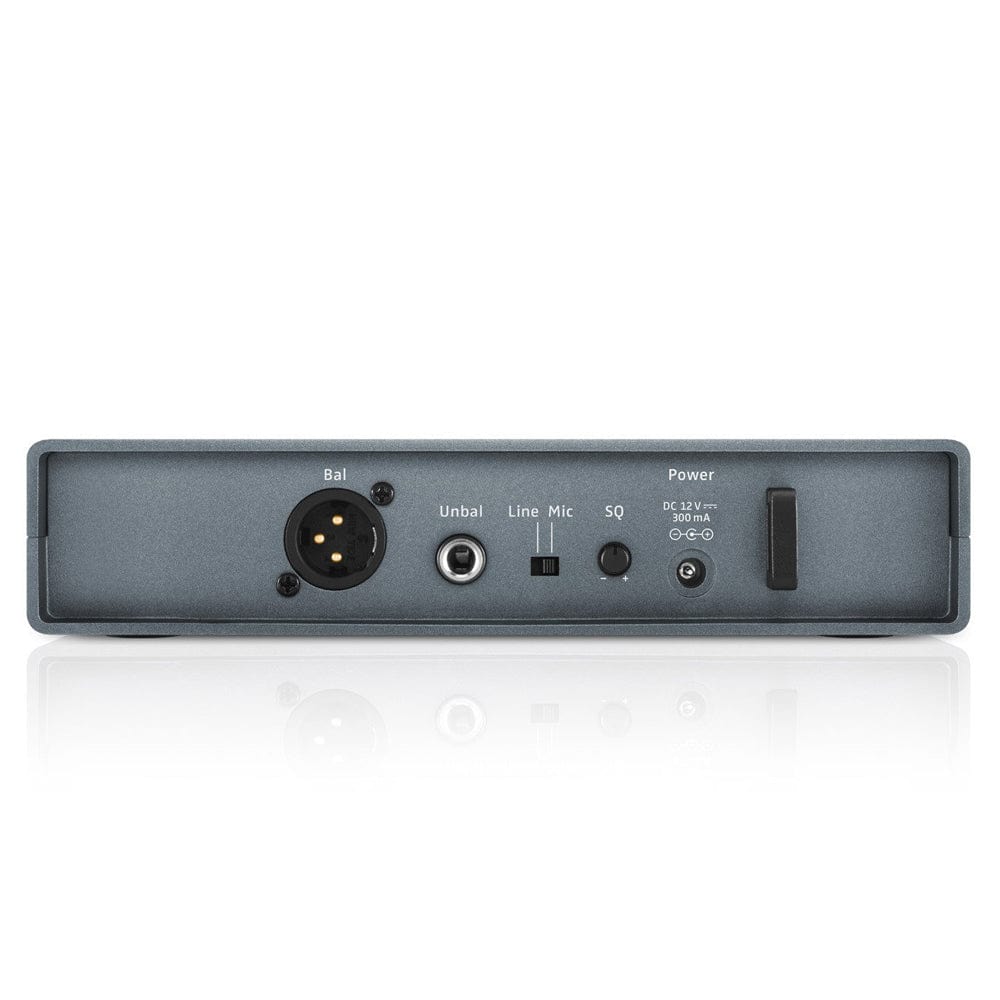

10 hrs Modulation wideband FM Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu Housing rugged ABS housing Dynamic range dynamic Frequency 8 frequency banks, each with up to 10 factory-preset channels Frequency range : A: 548-572 MHz C: 766-790 MHz Specifications : Sensitivity < 3 μV at 52 dB(A)rms S/N Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization) Input sensitivity 1.5 mV / Pa Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps Audio adjustment range 45 dB, adjustable in 5-dB steps Line / Mic level 20 dB, switchable Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C Receiver Principle double superheterodyne Diversity principle Antenna switching diversity via internal antennas Microphone Weight approx : 245g Power supply Microphone : 2 AA size batteries, 1.5 V AF frequency response : SKM 825: 80-14,000 Hz SKM 835 : 80-16,000 Hz Made in Germany.
