Sennheiser XSW 1-908 Wireless System For Brass Instruments - A: 548-572 MHz

Sennheiser XSW 1-908 Wireless System For Brass Instruments Overview : A powerful performance Easy to use all-in-one wireless system for for brass instruments.

A powerful performance Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.

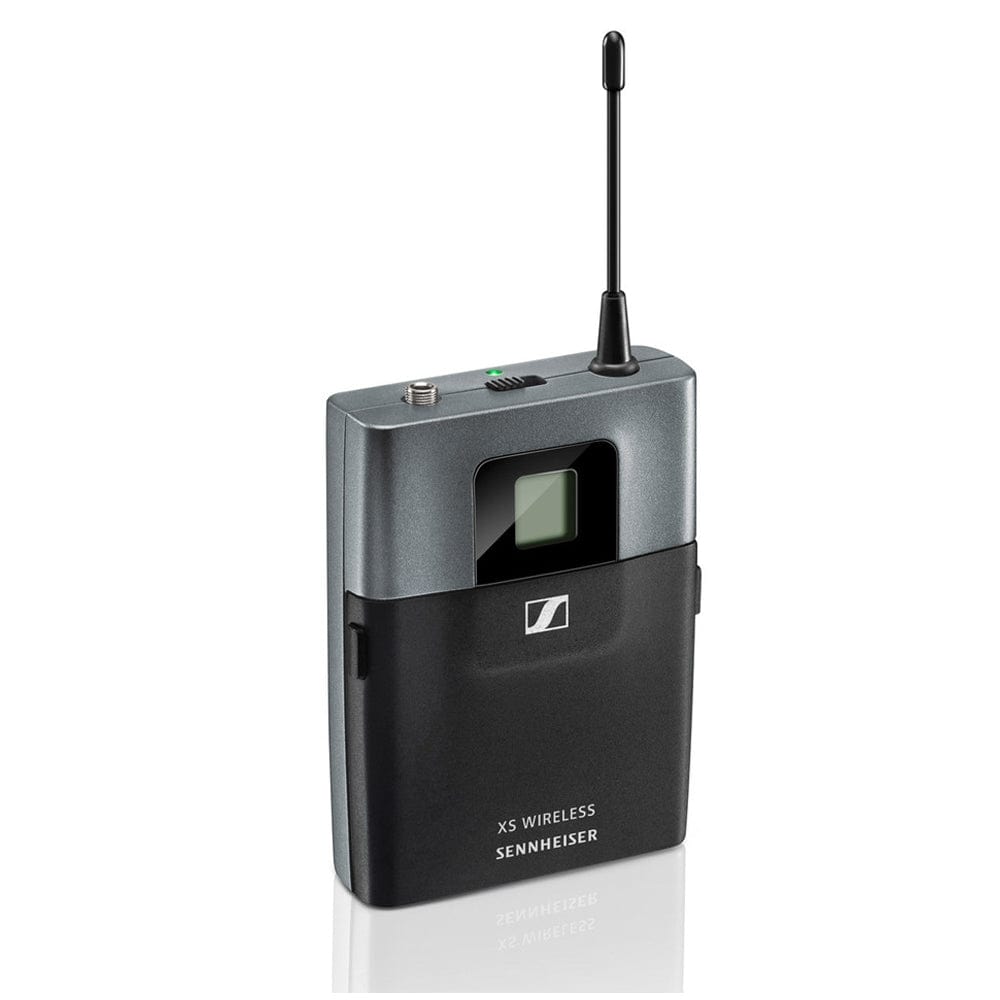

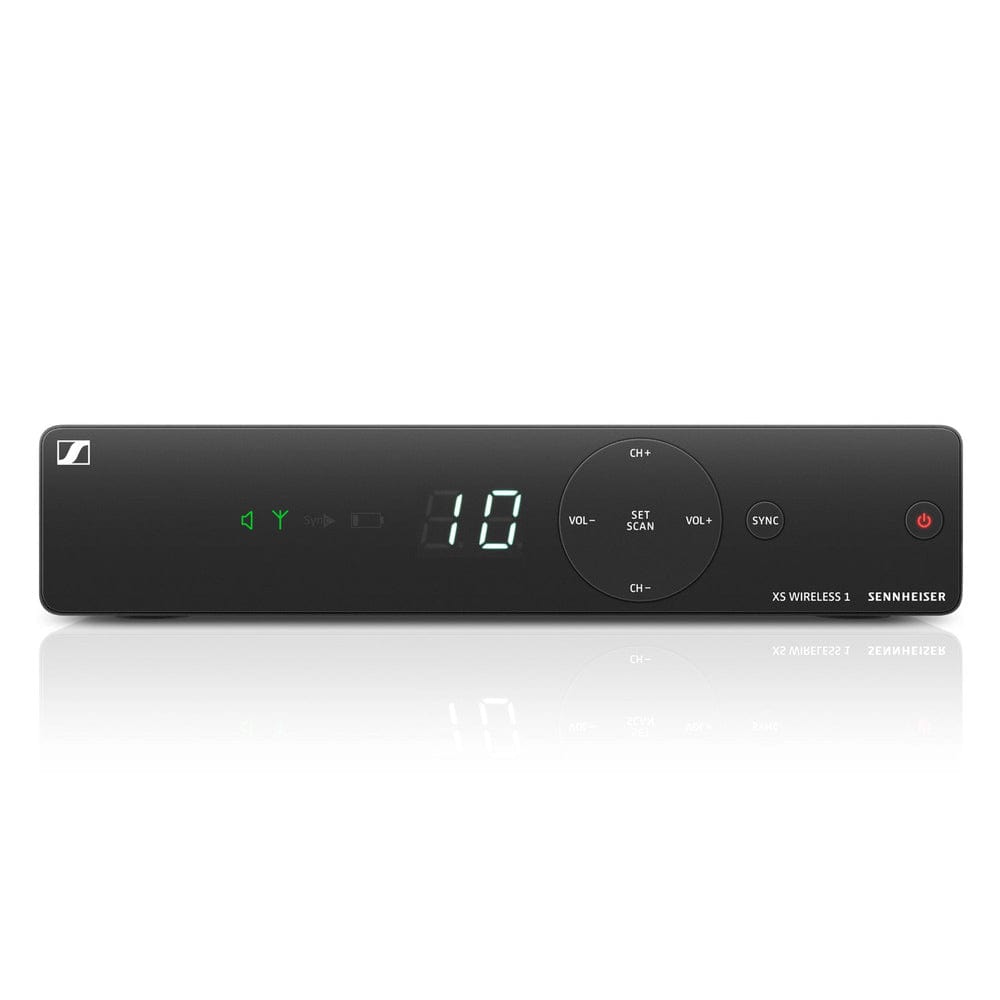

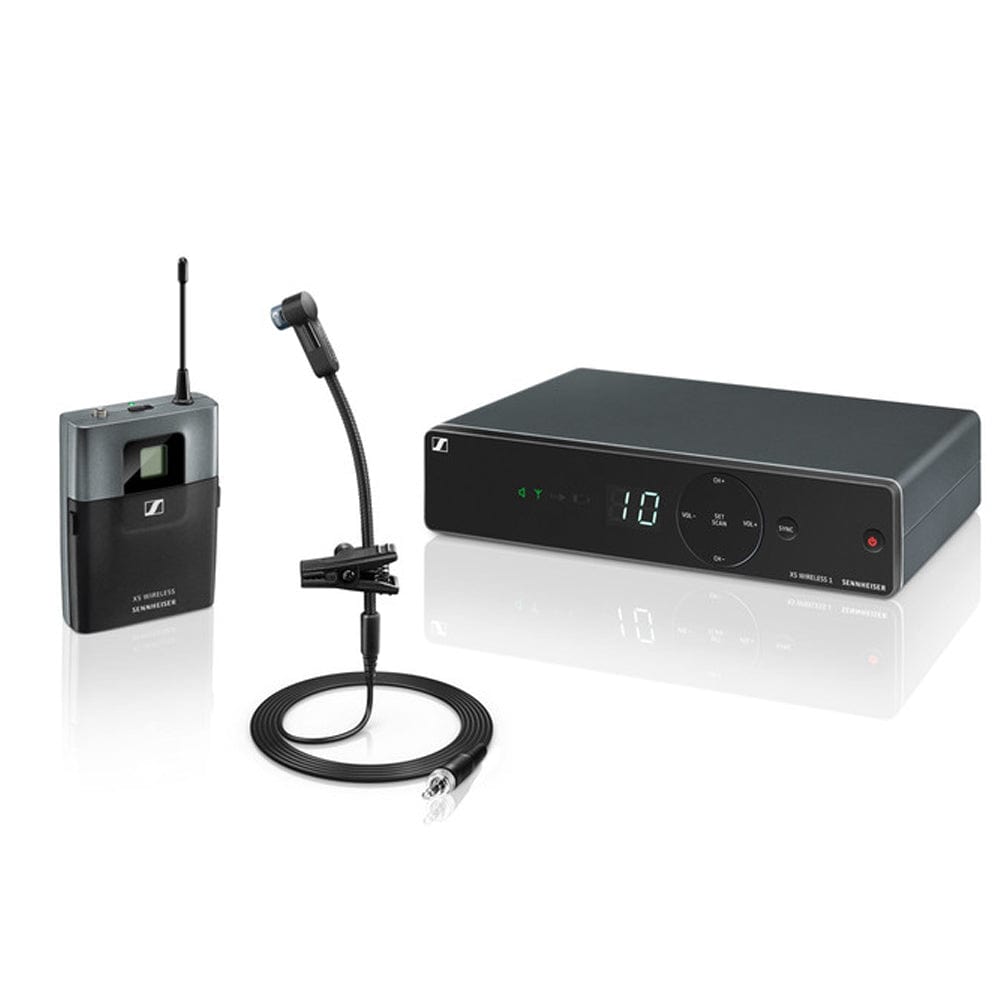

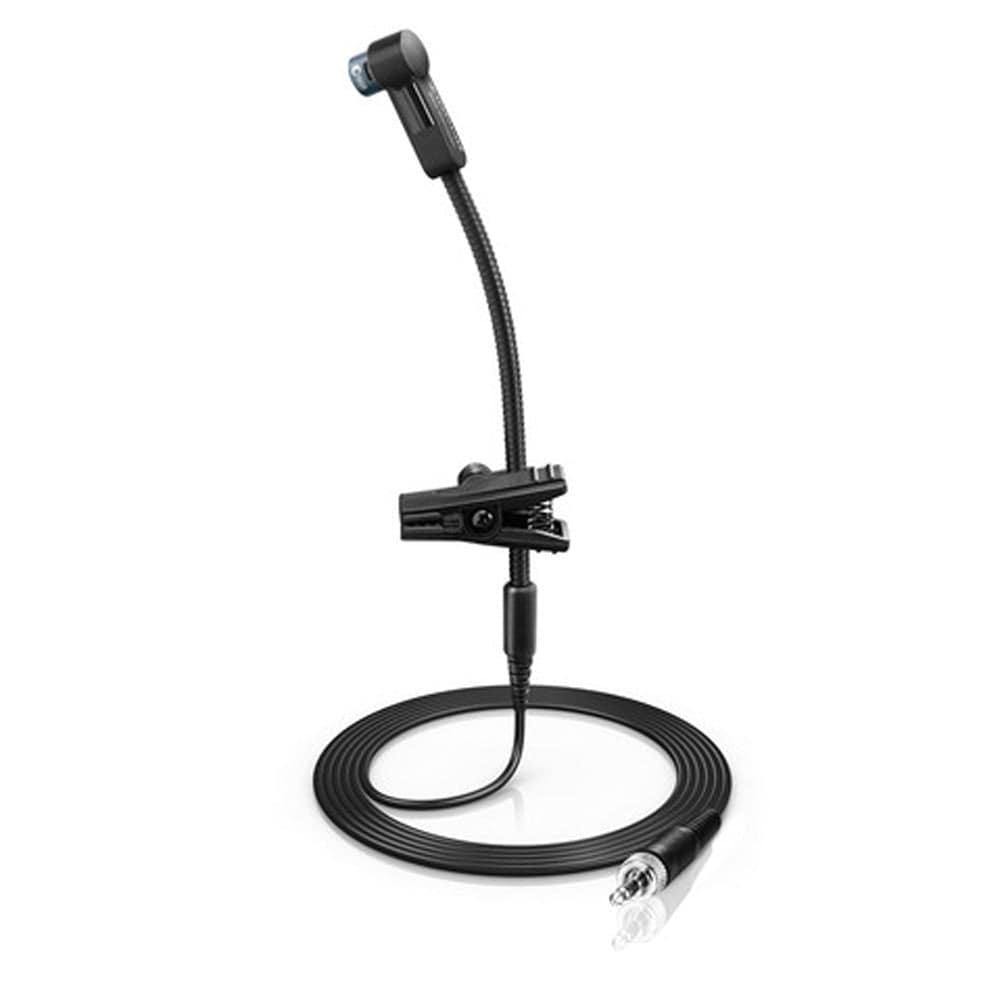

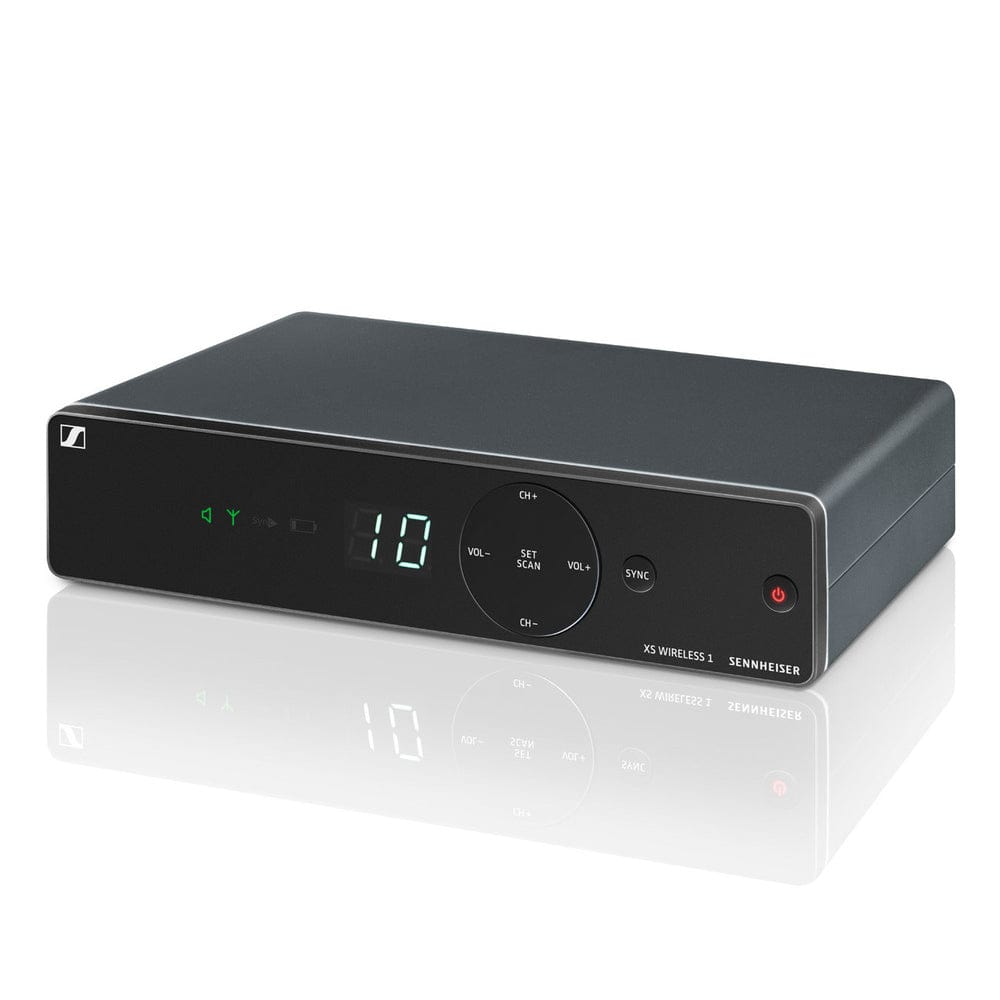

The XS WIRELESS 1 BRASS SET is an easy to use all-in-one wireless system, especially designed to provide a powerful live sound for brass instruments The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a rugged condenser gooseneck microphone.

Features : Versatile gooseneck microphone with outstanding sound reproduction from the renowned evolution microphone series Antenna-switching diversity reception Integrated antennas Automatic frequency management and synchronization via remote channel for easy setup Selectable UHF frequencies within a large bandwidth Up to 10 compatible channels Contents included : 1 receiver EM-XSW 1 1 gooseneck microphone e908T 1 bodypack transmitter SK-XSW 1 power supply NT 12-5 CW 2 AA batteries Receivers Dimensions approx : 200 x 42 x 127 mm Weight approx : 340g Power supply Receiver : 12 V DC nom / 300 mA AF frequency response : Receiver: 50 to 16,000 Hz (–3 dB) Transmitter Dimensions approx : 71 x 96 x 28 mm Weight approx.

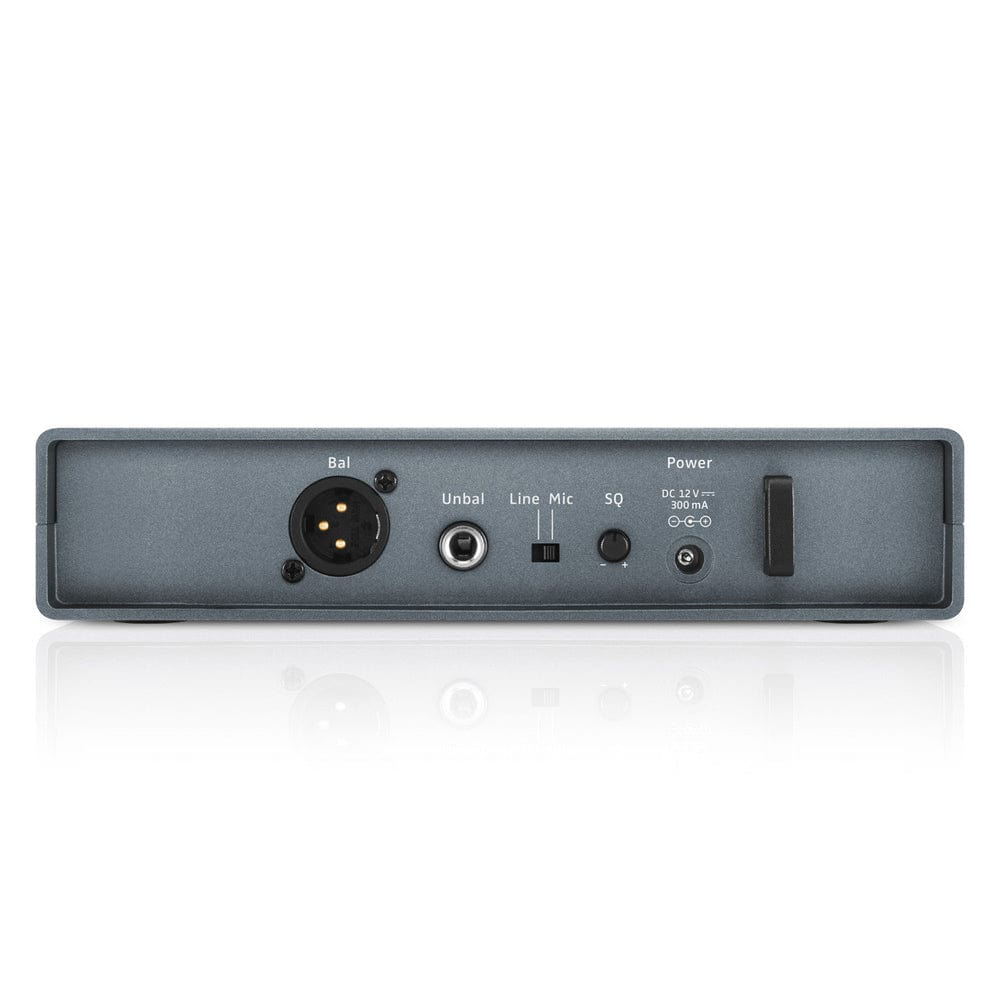

: 95g Power supply Transmitter : 2 AA size batteries, 1.5 V Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps Microphone condenser THD, total harmonic distortion ≤ 0.9% Pick-up pattern cardioid Signal-to-noise ratio ≥ 103 dBA RF output power 10 mW Switching bandwidth up to 24 MHz Operating time approx 10 hrs Modulation wideband FM Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu Housing rugged ABS housing Frequency 8 frequency banks, each with up to 10 factory-preset channels Frequency range A: 548-572 MHz C: 766-790 MHz Specifications : Sensitivity : < 3 μV at 52 dB(A)rms S/N SPL for peak deviation : 147 dB Squelch : adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization) Input sensitivity : 1.5 mV / Pa Audio adjustment range : 45 dB, adjustable in 5-dB steps Line / Mic level 20 dB, switchable Temperature Range operation : 0°C to +40°C, storage: –20°C to +70°C Receiver Principle double superheterodyne Diversity principle antenna switching diversity via internal antennas Made in Germany.
