Sennheiser XSW 1-CI1 Wireless Instrument System - A: 548-572 MHz

Sennheiser XSW 1-CI1 Wireless Instrument System Overview : Amplify your tunes Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.

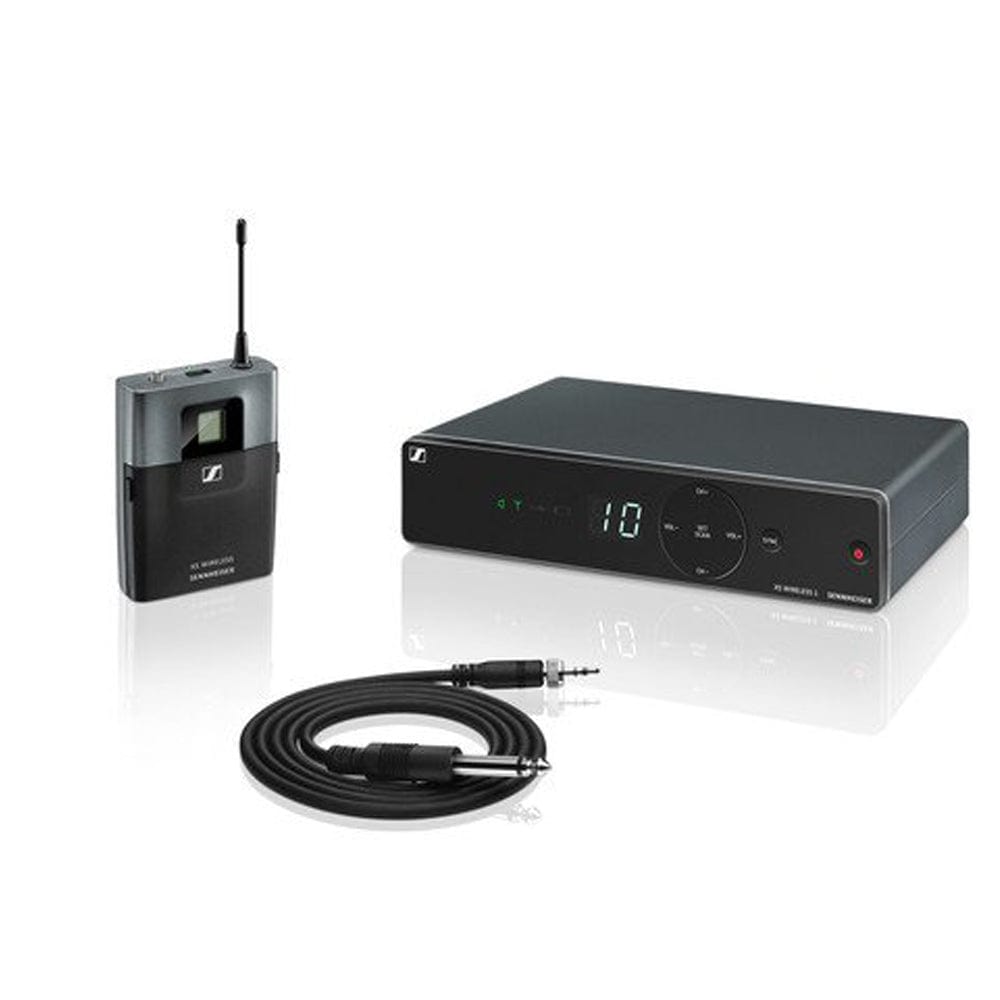

The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-inone wireless system for guitarists and bassists, excellent for live sound The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.

Features : Compact bodypack transmitter, rugged instrument cable Antenna-switching diversity reception Integrated antennas Automatic frequency management and synchronization via remote channel for easy setup Selectable UHF frequencies within a large bandwidth Up to 10 compatible channels Contents included 1 receiver EM-XSW 1 1 bodypack transmitter SK-XSW 1 instrument cable Cl1 1 power supply NT 12-5 CW 2 AA batteries Specifications : Dimensions Receiver : approx 200 x 42 x 127 mm Bodypack transmitter : approx.

71 x 96 x 28 mm THD, total harmonic distortion ≤ 0.9% Weight approx : 340g (receiver), approx 95g (transmitter) Signal-to-noise ratio ≥ 103 dBA RF output power : 10 mW Switching bandwidth up to 24 MHz Operating time approx :10 hrs Modulation : Wideband FM Power supply Receiver : 12 V DC nom.

/ 300 mA Transmitter : 2 AA size batteries, 1.5 V Output voltage :  1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced) : +12 dBu Housing : Rugged ABS housing Frequency : 8 frequency banks, each with up to 10 factory-preset channels Frequency range : A: 548-572 MHz C: 766-790 MHz Specifications : Sensitivity : < 3 μV at 52 dB(A)rms S/N SPL for peak deviation : 130 dB Squelch : adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization) Input sensitivity : 1.5 mV / Pa AF frequency response Receiver : 50 to 16,000 Hz (–3 dB) Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps Audio adjustment range : 45 dB, adjustable in 5-dB steps Line / Mic level : 20 dB, switchable Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C Receiver Principle double superheterodyne Diversity principle Antenna switching diversity via internal antennas Made in Germany.
