Sennheiser XSW 1-ME2 Wireless Lavalier Mic System - A : 548-572 MHz

Sennheiser XSW 1-ME2 Wireless Lavalier Mic System Overview : Inspire your audience Easy to use all-in-one wireless system for public speakers and presenters.

Inspire your audience Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.

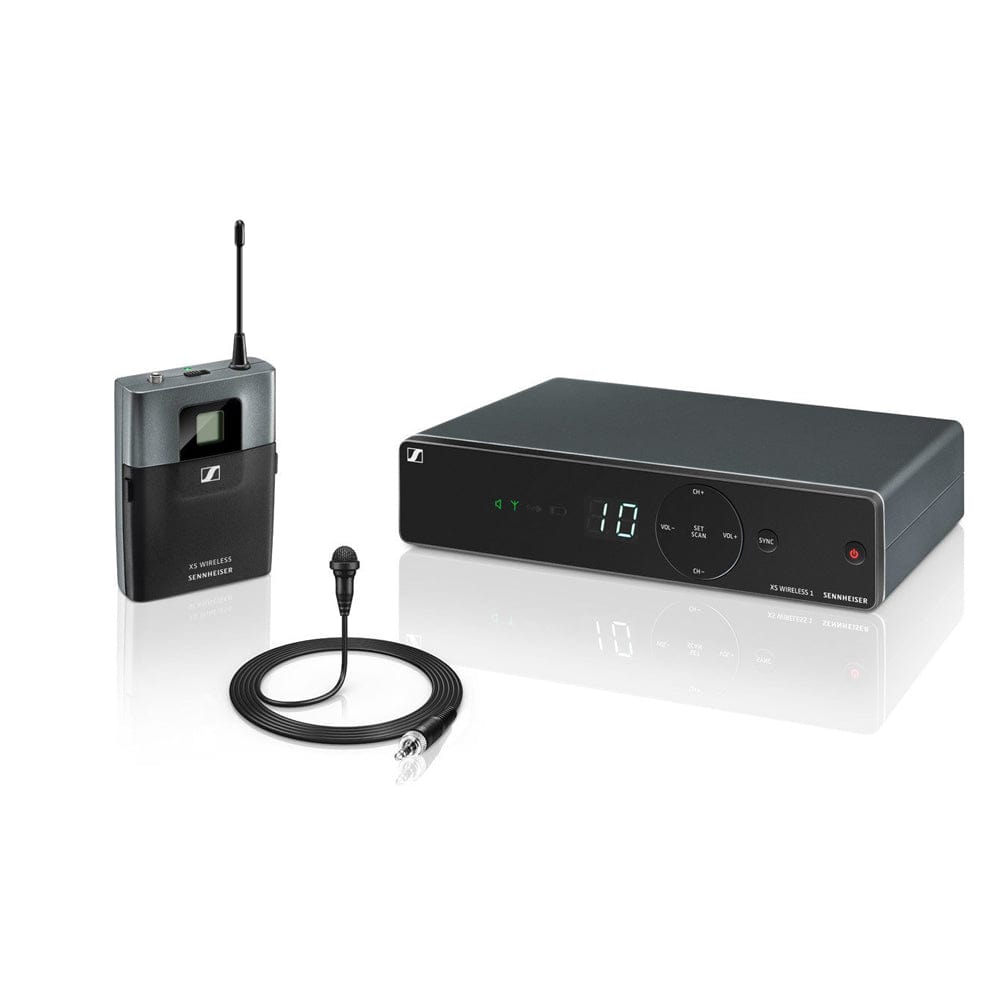

The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

Features : Compact bodypack transmitter, unobstrusive clip-on microphone Antenna-switching diversity reception Integrated antennas Automatic frequency management and synchronization via remote channel for easy setup Selectable UHF frequencies within a large bandwidth Up to 10 compatible channels Contents Included : 1 receiver EM-XSW 1 1 lavalier microphone ME 2-2 1 bodypack transmitter SK-XSW 1 power supply NT 12-5 CW 2 AA batteries Receivers Dimensions approx : 200 x 42 x 127 mm Weight approx : 340g Power supply : 12 V DC nom / 300 mA AF frequency response : 50 to 16,000 Hz (–3 dB) Transmitter Dimensions approx : 71 x 96 x 28 mm Weight approx : 95g Power supply : 2 AA size batteries, 1.5 V Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps Microphone condenser THD, total harmonic distortion :  ≤ 0.9% Pick-up pattern omni-directional Signal-to-noise ratio :  ≥ 103 dBA RF output power : 10 mW Switching bandwidth : up to 24 MHz Operating time approx : 10 hrs Modulation : wideband FM Output voltage : '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced) : +12 dBu Housing rugged : ABS housing Diversity reception antenna switching diversity via internal antennas Frequency : 8 frequency banks, each with up to 10 factory-preset channels Frequency range A : 548-572 MHz C : 766-790 MHz Specifications : Sensitivity : < 3 μV at 52 dB(A)rms S/N SPL for peak deviation : 130 dB Squelch : adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization) Input sensitivity : 1.5 mV / Pa Audio adjustment range : 45 dB, adjustable in 5-dB steps Line / Mic level 20 dB, switchable Temperature Range operation : 0°C to +40°C, storage: –20°C to +70°C Receiver Principle : double superheterodyne Made in Germany.
