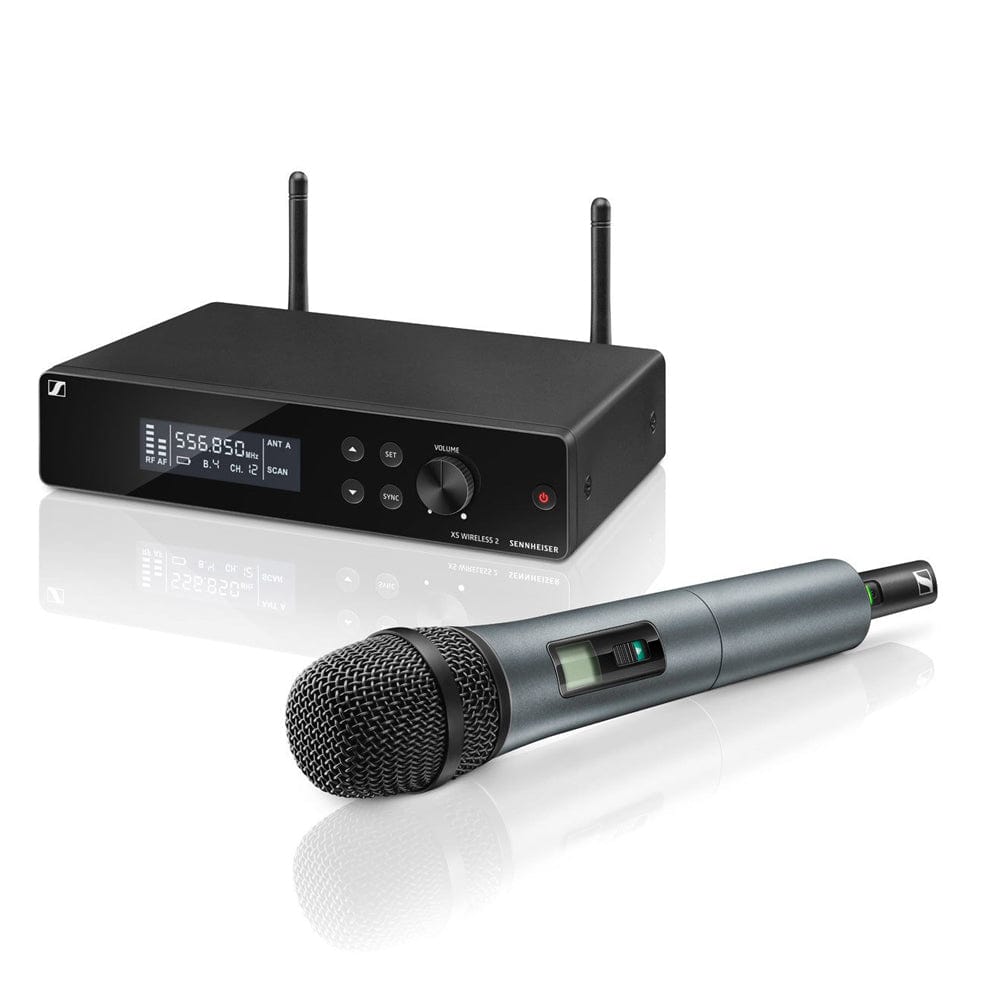

Sennheiser XSW 2-865 Wireless Vocal Microphone System - A : 548-572

Sennheiser XSW 2-865 Wireless Vocal Microphone System Overview : Raise your voice High flexibility for those willing to go a step further.

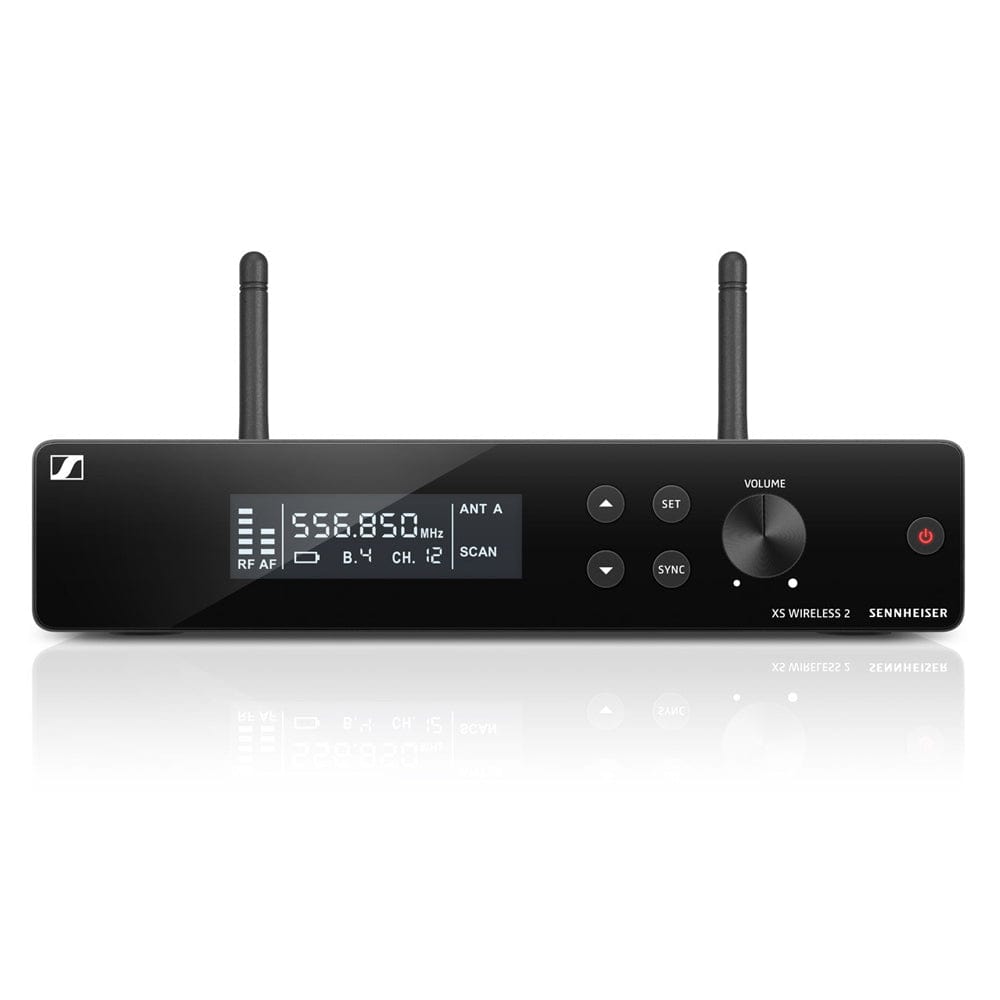

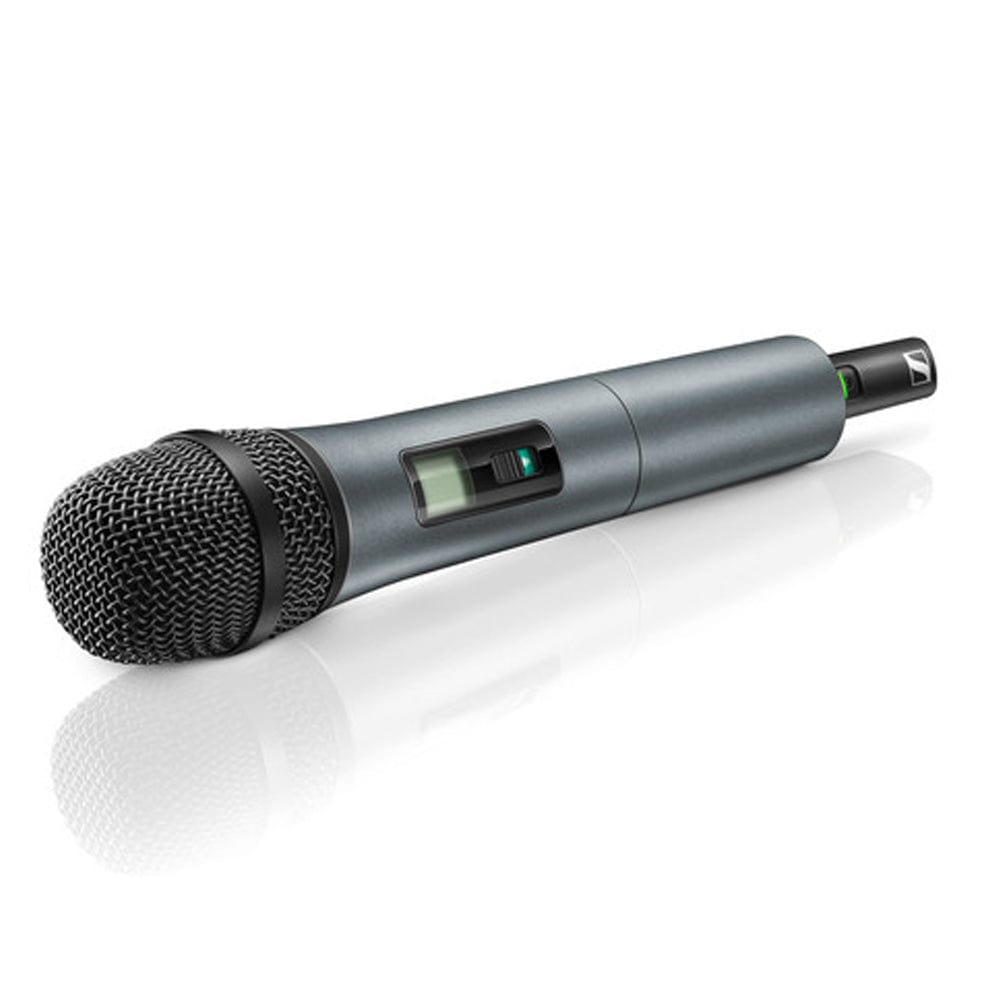

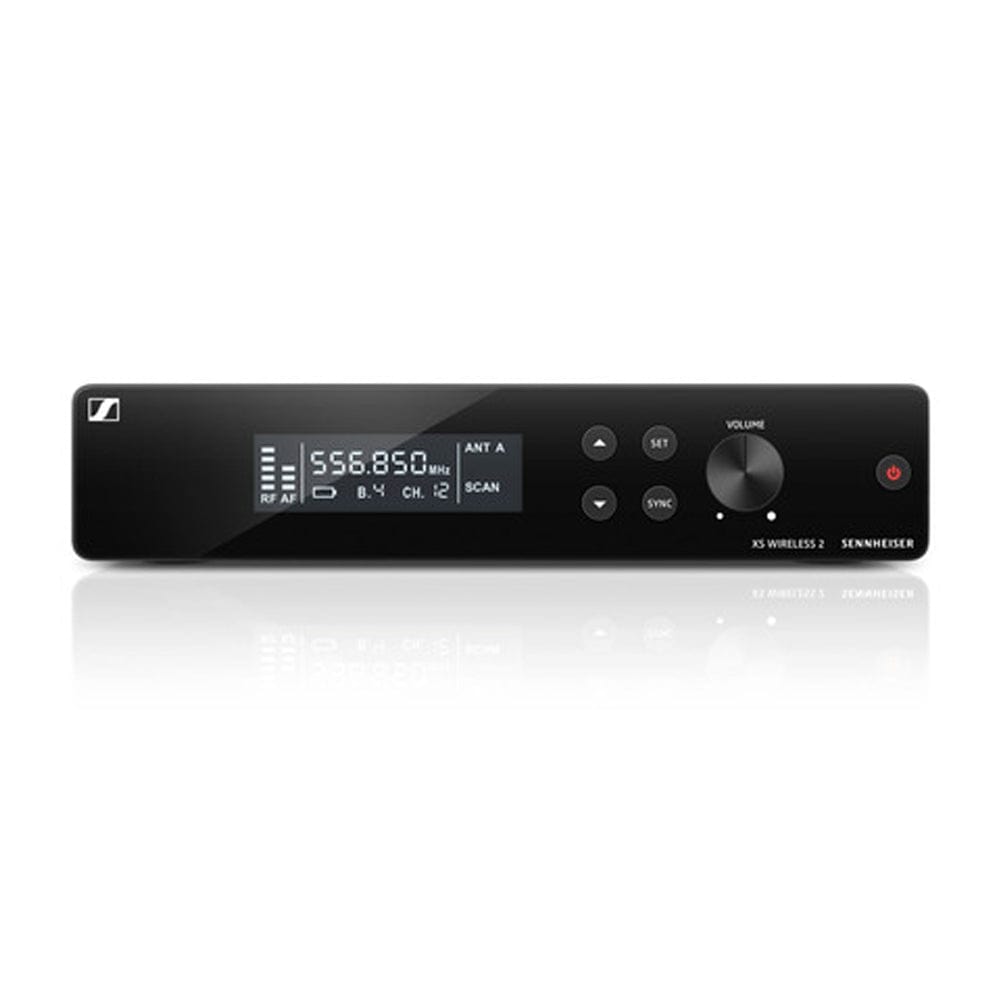

XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail.

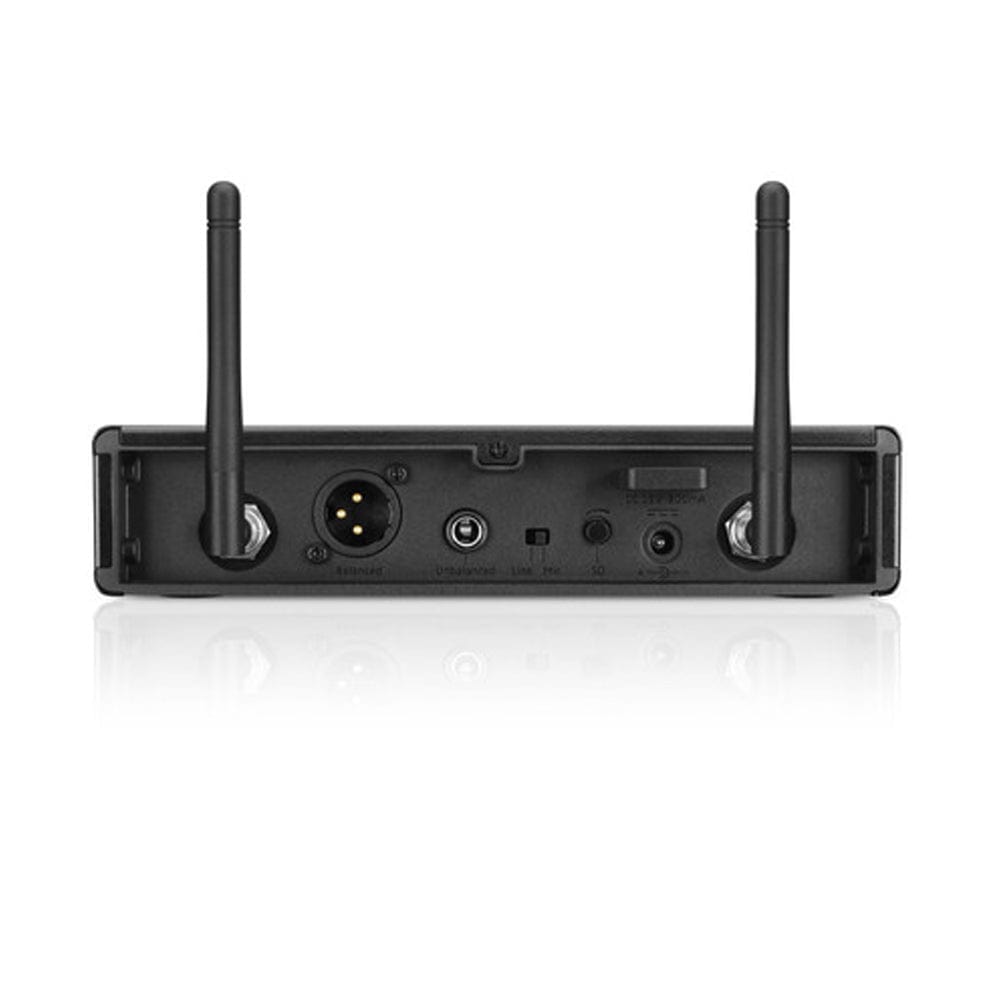

True Diversity receiver in a metal housing and rackmount kit included Features : Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules True diversity receiver with metal housing External antennas Automatic frequency management and synchronization via remote channel for easy setup Fully tunable over a wide range of UHF frequencies Rackmount kit included Up to 12 compatible channels Contents included 1 receiver EM-XSW 2 1 handheld transmitter SKM 865-XSW 1 microphone clamp MZQ 1 1 power supply NT 12-5 CW 2 AA batteries 1 rackmount kit 1 pouch user manual Specifications : Receivers Dimensions approx.

200 x 42 x 127 mm Weight approx 680g Power supply 12 V DC nom.

/ 300 mA Housing metal, microphone: robust ABS AF frequency response 50 to 16,000 Hz (–3 dB) Microphone Dimensions approx 260 x 50 mm Weight approx.

245g Operating time approx 10 hrs Power supply 2 AA size batteries, 1.5 V AF frequency response 80-16,000 Hz Microphone condenser Frequency response 50 to 16,000 Hz (–3 dB) THD, total harmonic distortion ≤ 0.9% Pick-up pattern super-cardioid Signal-to-noise ratio ≥ 103 dBA RF output power 10 mW Switching bandwidth up to 24 MHz Modulation wideband FM Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu Frequency 8 frequency banks, each with up to 12 factory-preset channels Frequency range : A: 548-572 MHz C: 766-790 MHz Specifications : Sensitivity : < 3 μV at 52 dB(A)rms S/N Squelch : switchable from 3 dBμV to 28 dBμV (via Pilot Tone) Synchronization :  2.4 GHz, Low Power OQPSK (only active during synchronization) Input sensitivity : 1.8 mV / Pa Adjustment Range Transmitter Audio adjustment range : 40 dB, adjustable in 5-dB steps Line / Mic level : 20 dB, switchable Temperature Range operation : 0°C to +40°C, storage: –20°C to +70°C Receiver Principle : double superheterodyne Diversity principle True Diversity Made in Germany.
