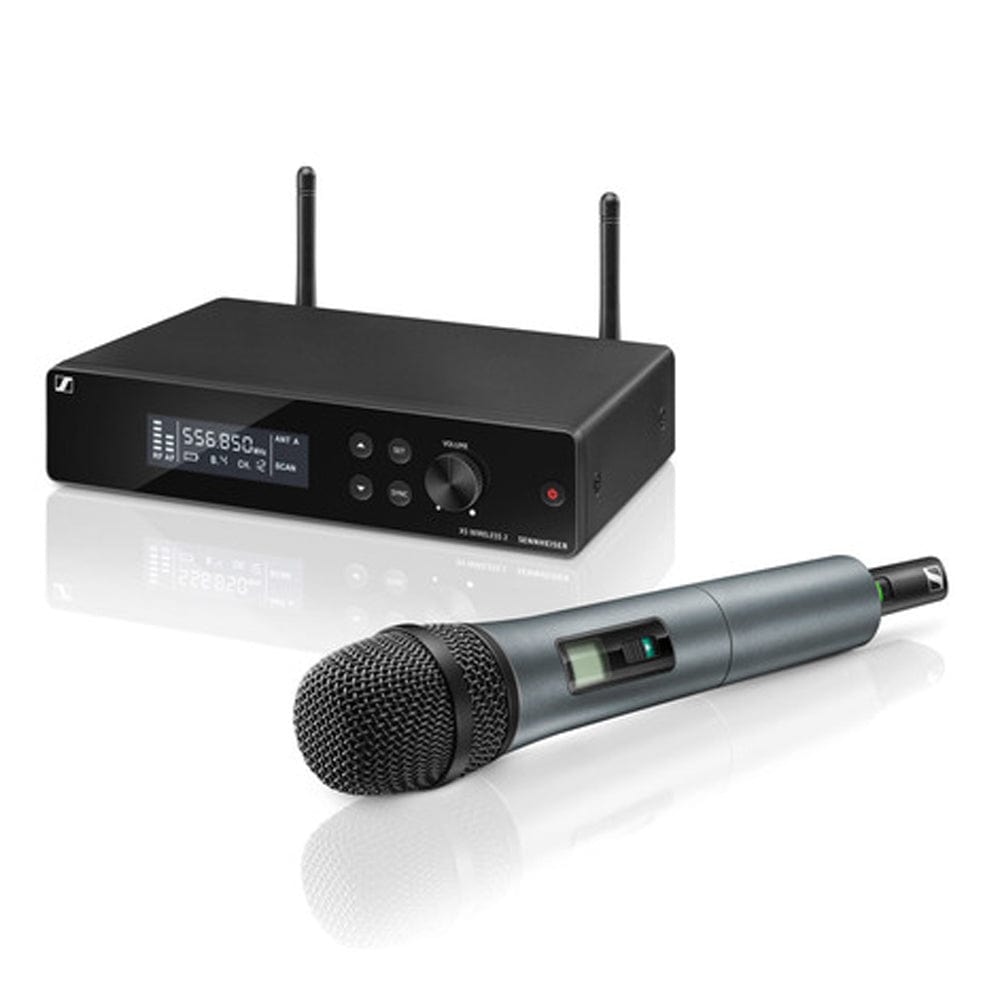

Sennheiser XSW2-835 Wireless Vocal Microphone System - A : 548-572 MHz

Sennheiser XSW2-835 Wireless Vocal Microphone System Overview : Raise Your Voice Flexible, rugged, all-in-one wireless system for singers and presenters.

Raise your voice High flexibility for those willing to go a step further.

XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure.

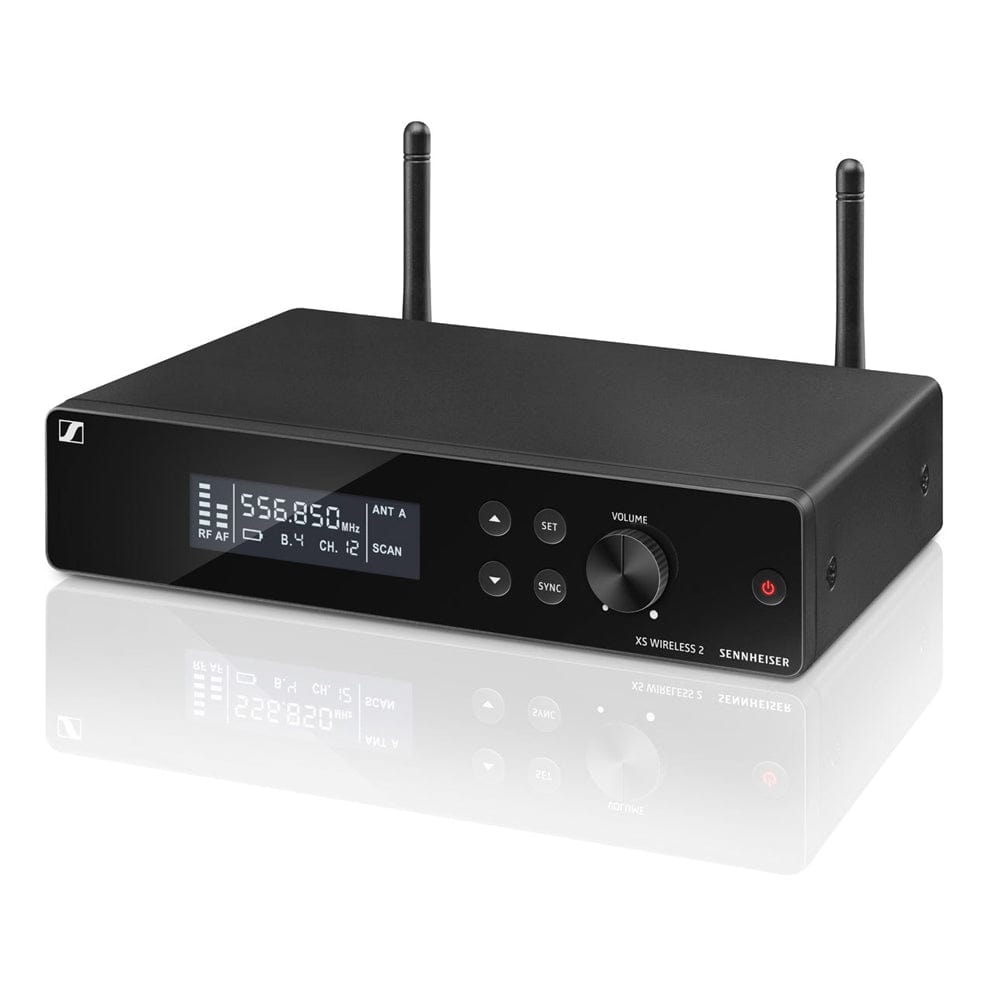

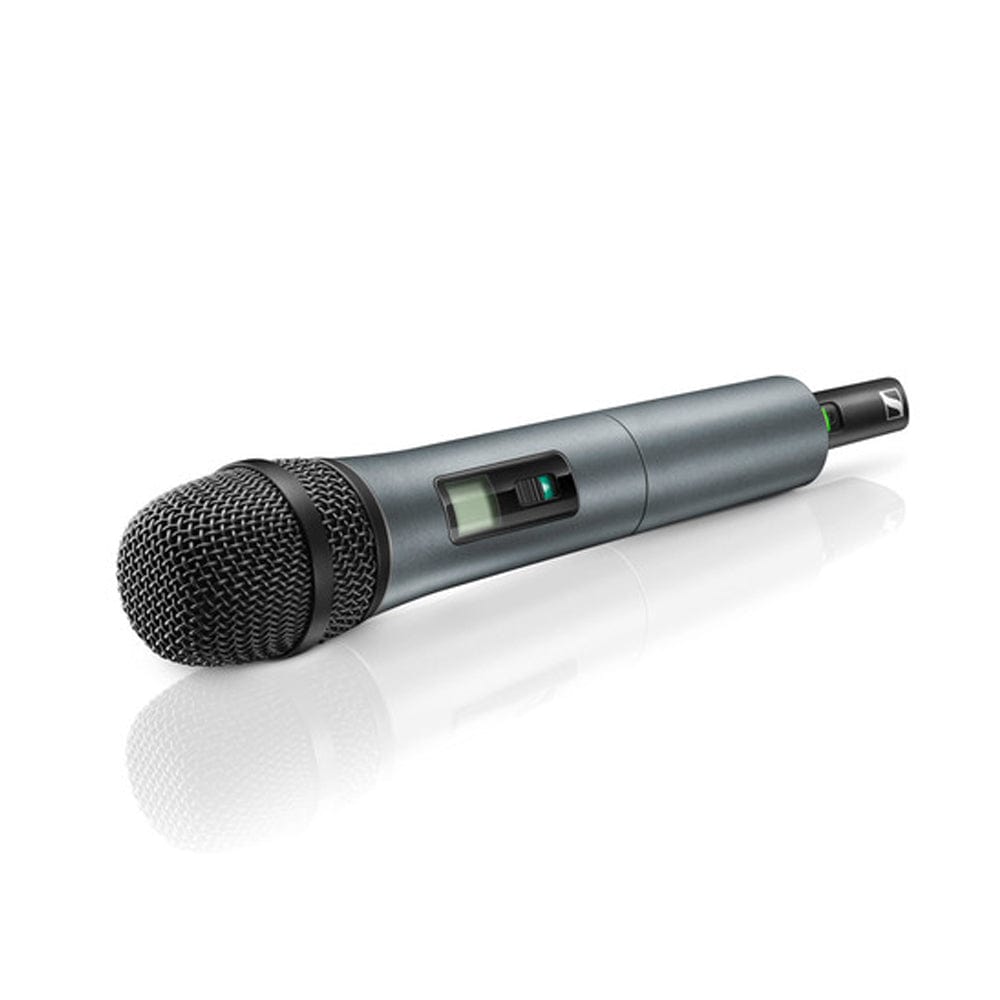

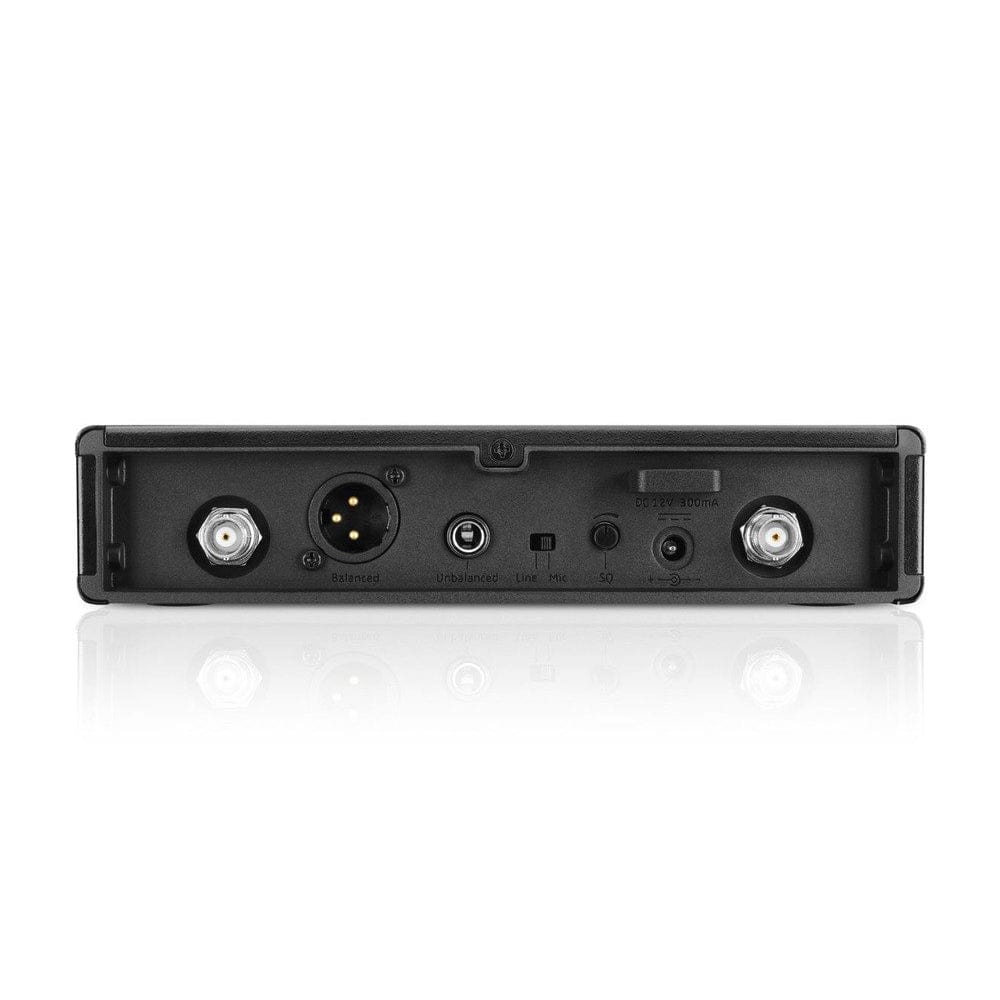

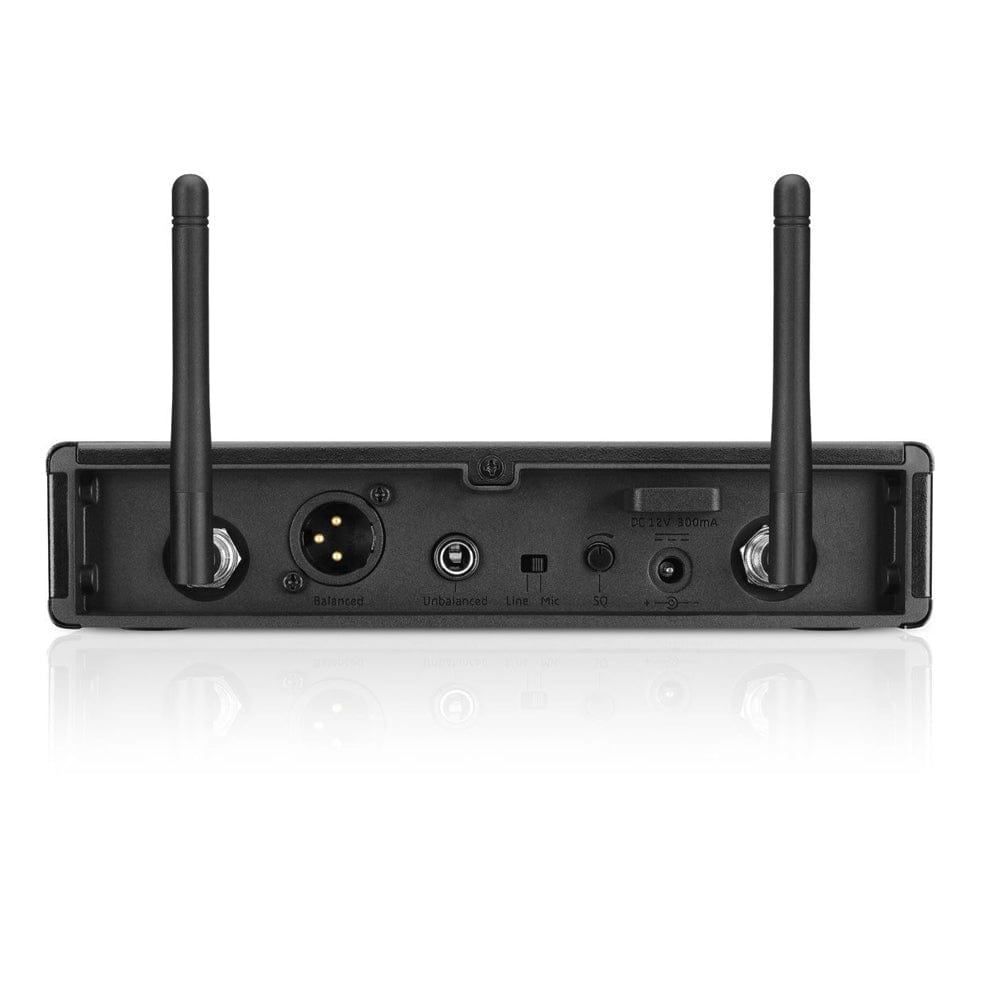

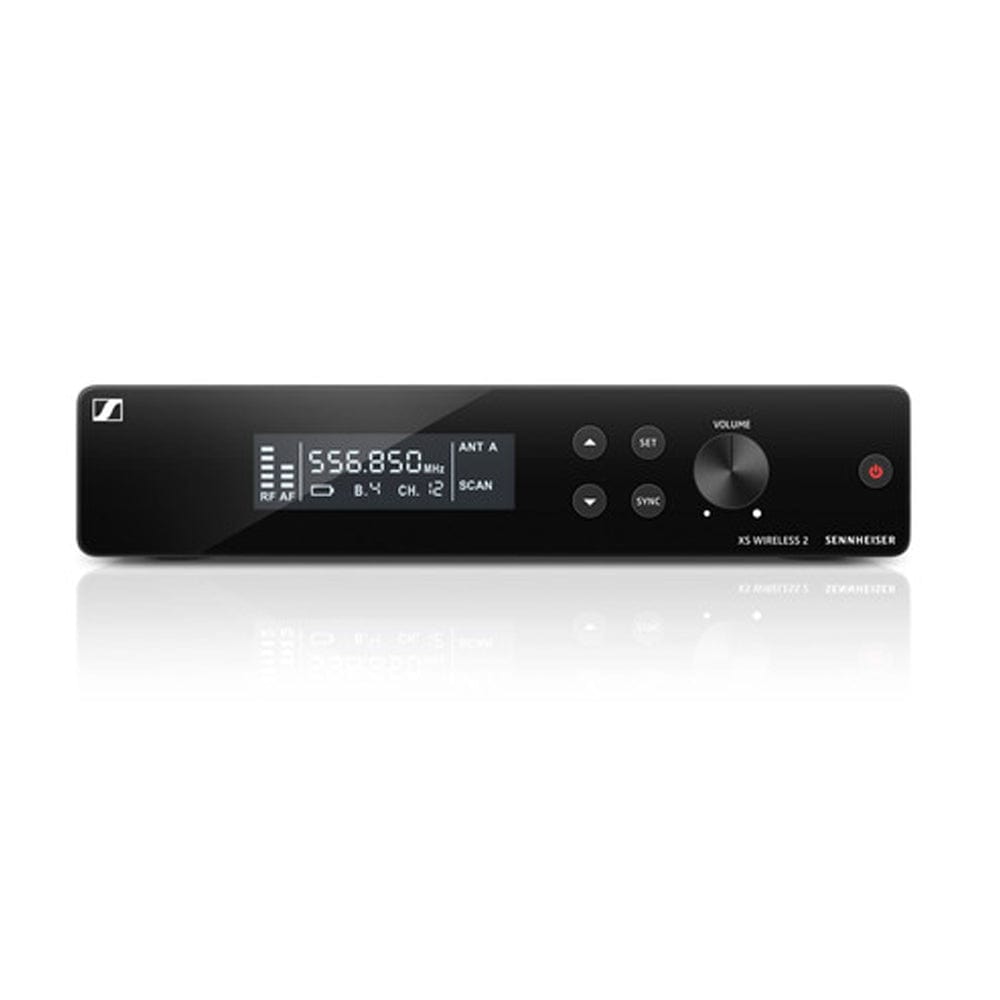

True Diversity receiver in a metal housing and rackmount kit included Features : Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules True diversity receiver with metal housing External antennas Automatic frequency management and synchronization via remote channel for easy setup Fully tunable over a wide range of UHF frequencies Rackmount kit included Up to 12 compatible channels Contents included : 1 receiver EM-XSW 2 1 handheld transmitter SKM 835-XSW 1 microphone clamp MZQ 1 1 power supply NT 12-5 CW 2 AA batteries 1 rackmount kit 1 pouch user manual Receivers Dimensions approx.

200 x 42 x 127 mm, microphone: approx 260 x 50 mm Weight approx.

680g Power supply 12 V DC nom / 300 mA Housing Metal, microphone: robust ABS AF frequency response 50 to 16,000 Hz (–3 dB) Microphone dynamic Frequency response : 50 to 16,000 Hz (–3 dB) THD, total harmonic distortion ≤ 0.9% Pick-up pattern cardioid Signal-to-noise ratio : ≥ 103 dBA RF output power : 10 mW Switching bandwidth : up to 24 MHz Operating time approx : 10 hrs Modulation : wideband FM Output voltage : 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced) : +12 dBu Frequency : 8 frequency banks, each with up to 12 factory-preset channels Frequency range : A: 548-572 MHz C: 766-790 MHz Specifications : Sensitivity : < 3 μV at 52 dB(A)rms S/N Squelch : switchable from 3 dBμV to 28 dBμV (via Pilot Tone) Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization) Line : 20 dB, switchable Input sensitivity : 1.5 mV / Pa Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps Audio adjustment range : 40 dB, adjustable in 5-dB steps Temperature Range operation : 0°C to +40°C storage : –20°C to +70°C Receiver Principle : double superheterodyne Diversity principle : True Diversity Microphone Weight approx : 245g Power supply : 2 AA size batteries, 1.5 V AF frequency response : 80-14,000 Hz Made in Germany.
