Sennheiser XSW2-Cl1 Wireless Instrument System - A: 548-572 MHz

Sennheiser XSW2-Cl1 Wireless Instrument System Overview : Amplify your tunes Flexible, rugged, all-in-one wireless system for guitar and bass.

Amplify your tunes High flexibility for those willing to go a step further.

XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions The XS WIRELESS 2 INSTRUMENT SET is an easy to use all-in- one wireless system for guitarists and bassists, excellent for live sound.

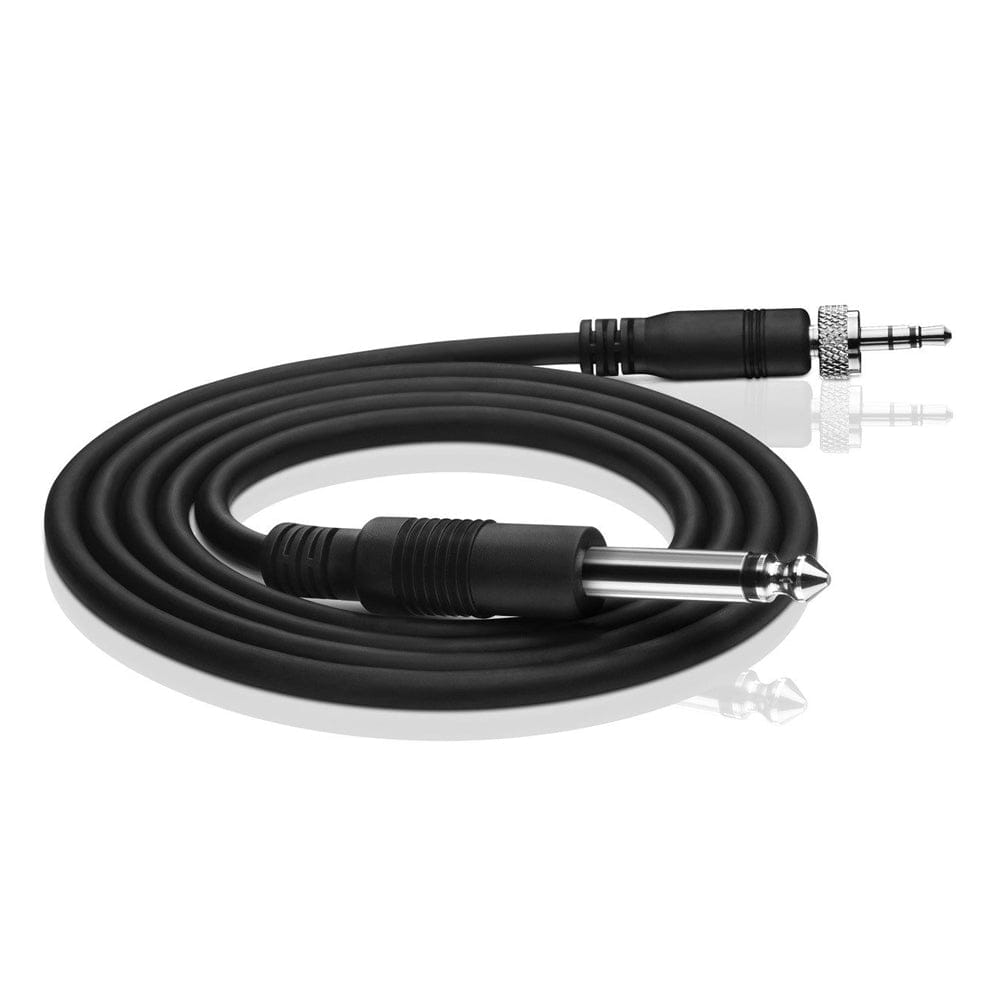

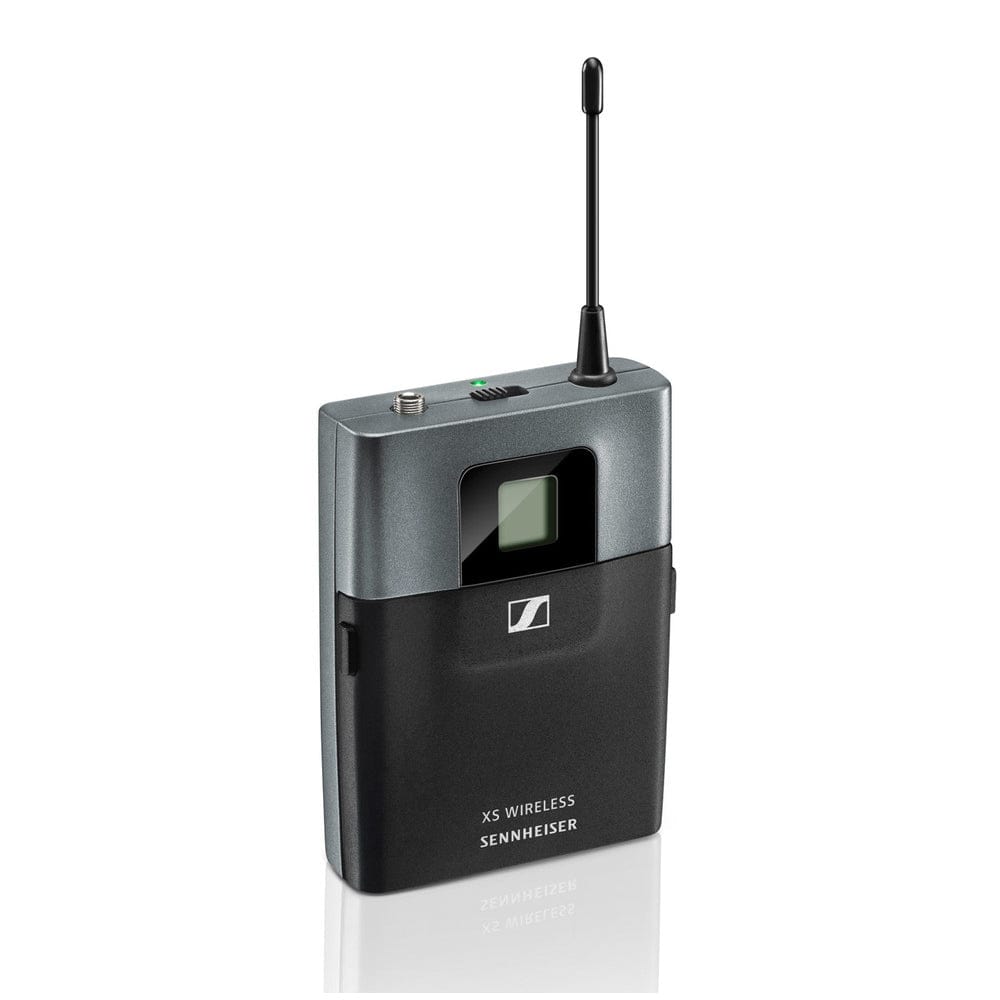

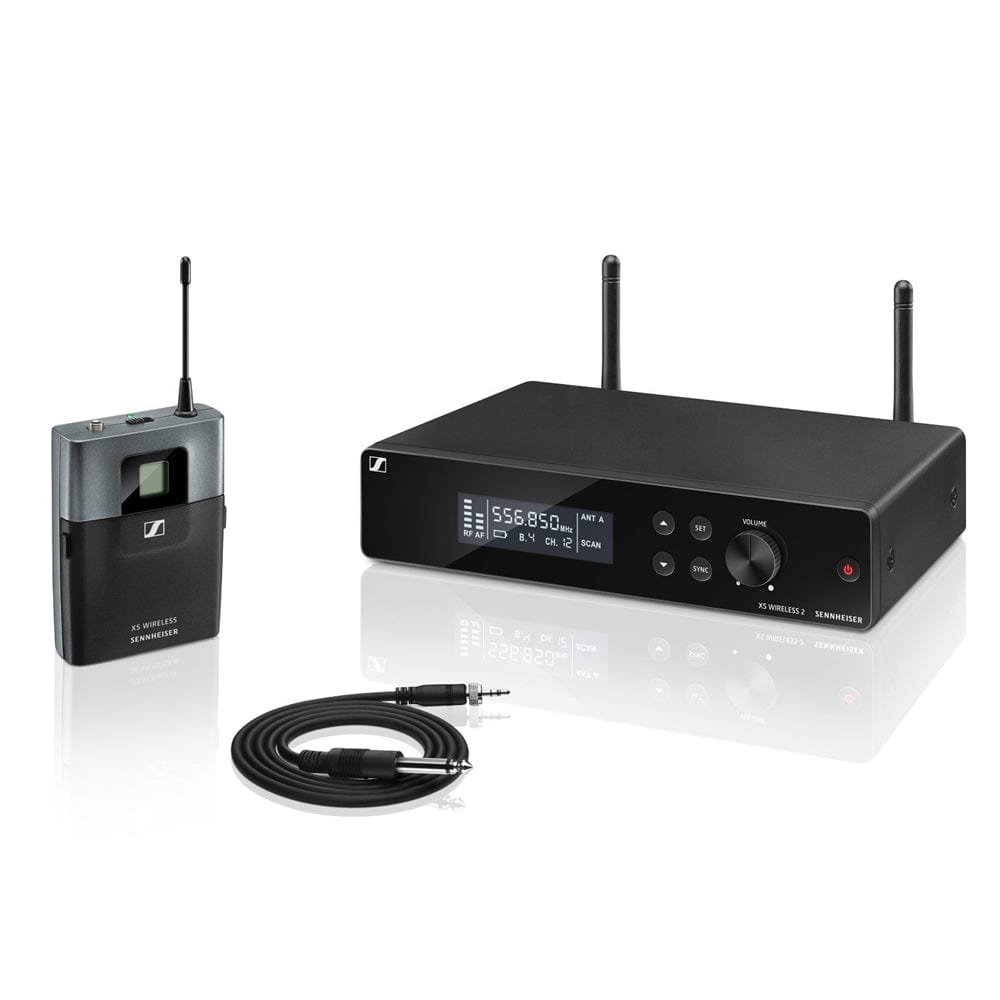

The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable Metal receiver housing and rackmount kit included.

Features : Robust instrument cable and compact bodypack transmitter True diversity receiver with metal housing External antennas Automatic frequency management and synchronization via remote channel for easy setup Fully tunable over a wide range of UHF frequencies Rackmount kit included Up to 12 compatible channels Contents included : 1 receiver EM-XSW 2 1 bodypack transmitter SK-XSW 1 instrument cable Cl1 1 power supply NT 12-5 CW 2 AA batteries 1 rackmount kit 1 pouch user manual Receivers Dimensions approx : 200 x 42 x 127 mm Weight approx :  680g Power supply : 12 V DC nom / 300 mA Housing metal AF frequency response : 50 to 16,000 Hz (–3 dB) Transmitter Dimensions approx :71 x 96 x 28 mm Weight approx : 95g Operating time approx : 10 hrs Power supply : 2 AA size batteries, 1.5 V Housing robust : ABS AF frequency response ：50 - 16000Hz Specifications : Frequency response : 50 to 16,000 Hz (–3 dB) THD, total harmonic distortion ≤ 0.9% Signal-to-noise ratio : ≥ 103 dBA RF output power : 10 mW Switching bandwidth up to 24 MHz Modulation : wideband  FM Output voltage : 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu Diversity reception : True Diversity Frequency : 8 frequency banks, each with up to 12 factory-preset channels Frequency range A: 548-572 MHz C: 766-790 MHz Sensitivity : < 3 μV at 52 dB(A)rms S/N Squelch : switchable from 3 dBμV to 28 dBμV (via Pilot Tone) Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization)" Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps Audio adjustment range : 40 dB, adjustable in 5-dB steps Line / Mic level 20 dB, switchable Temperature Range operation : 0°C to +40°C, storage: –20°C to +70°C Receiver Principle : double superheterodyne Made in Germany.
