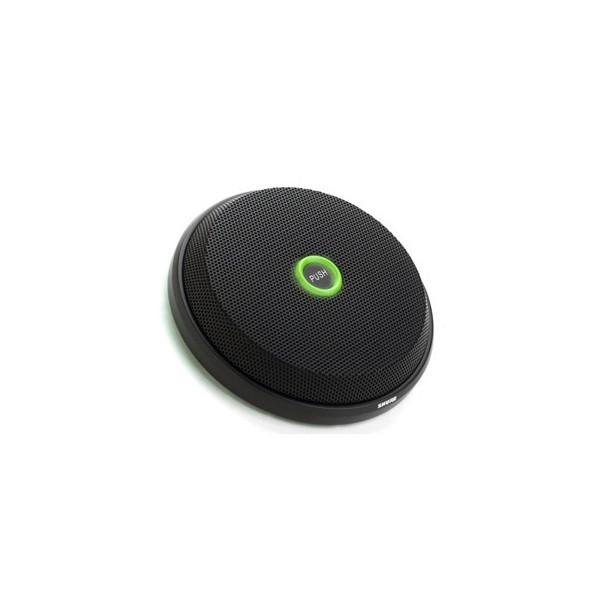

Shure MX396/C-DUAL Element Boundary Microphone

Shure MX396/C-DUAL Element Boundary Microphone

This item is out of stock


The MX396/C Boundary Microphone from Shure is capable of 0 to 180 degrees of coverage for excellent speech pick up between two people seated across from each other, or groups seated within the 180 degree range. The MX396/C is designed for capturing speeches in conference settings, education, telecommunication and more. The capsules feature cardioid polar patterns for maximum surface reflection and off-axis noise rejection. The mounting hardware allows for the attached (unterminated) cable to be side or bottom mounted. Also features are a Mute switch and Logic connections.

Shure MX396/C-DUAL Specifications:
  • Transducer Electret Condenser
  • Polar Pattern Cardioid
  • Frequency Range 50 Hz to 17 kHz
  • Signal to Noise Ratio 66 dB
  • Equivalent Noise Level 28 dB A-Weighted
  • Maximum SPL 122 dB SPL 1%
  • Impedance 170 ohms
  • Sensitivity 18 mV/PA
  • Power Requirements 48 V+/- 4 V
  • Cable Length 20'
  • Operating Relative Humidity 0 to 95%
  • Operating Temperature 0 to 135°F (-17.78 to 57.22°C)
  • Storage Temperature -20 to 165°F (-28 to 73.89°C)
  • Operating Current Consumption 10 mA
  • Dynamic Range 94 dB

General:
  • Diameter 4.33" (110 mm)
  • Weight 1.29 lb (0.59 kg)
