Shure MX405RLP/N Condenser Microphone

Shure MX405RLP/N Condenser Microphone

This item is out of stock


Buy Shure MX405RLP/N Condenser Microphone online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

Shure MX405RLP/N Condenser Microphone

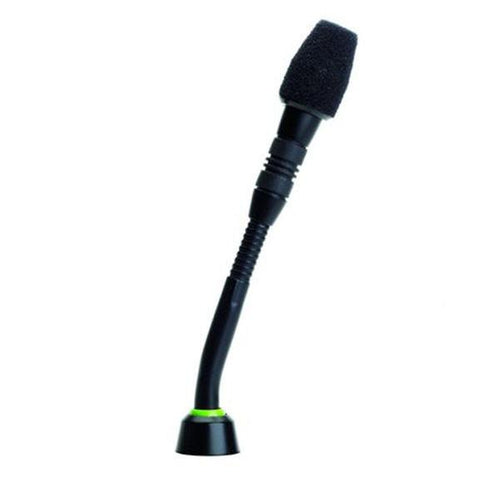

The MX405RLP/N is a miniature gooseneck microphone with a light ring as status display. It has a 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important. Permanently mounted or with a moveable desktop base (MX400DP), which includes a configurable mute button with logic output. Also compatible with the MX890 wireless desktop base.

Shure MX405RLP/N Features:

  • Available in 5 inch (127 mm) and 10 inch (254 mm) lengths
  • Cardioid and supercardioid polar patterns
  • Bi-color status indicator or single color light ring
  • Programmable mute switch (desktop models only)
  • Logic input/output for remote LED and mute control
  • Surface-mount and wired or wireless desktop base options
  • CommShield Technology for improved RF filtering

Shure MX405RLP/N Specifications:

  • Type: Condenser (electret bias)
  • Frequency Response: 50-17000 Hz
  • Polar Pattern:- MX405/C, MX410/C: Cardioid- MX405/S, MX410/S: Supercardioid
  • Output Impedance: EIA Rated at 150 ? (170 ? actual)
  • Output Configuration: Active balanced
  • Sensitivity (at 1 kHz , open circuit voltage):Cardioid: -35 dBV/Pa (18 mV)Supercardioid: -34 dBV/Pa (21 mV)1 Pascal=94 dB SPL
  • Maximum SPL (1 kHz at 1% THD, 1 k? load):Cardioid: 121 dBSupercardioid: 120 dB
  • Equivalent Output Noise (A-weighted):Cardioid: 28 dB SPLSupercardioid: 27 dB SPL
  • Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz):Cardioid: 66 dBSupercardioid: 68 dB
  • Dynamic Range (1 k? load at 1 kHz): 93 dB
  • Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum
  • Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V)
  • Polarity:3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
  • Net Weight:MX405: 0.054 kg (0.119 lbs)MX410: 0.068 kg (0.150 lbs)MX400DP: 0.516 kg (1.138 lbs)MX400SMP (w/ Kit): 0.125 kg (0.275 lbs)
  • Logic Connections:LED IN: Active low (?1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.LOGIC OUT: Active low (?1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3k?).
  • Mute Switch Attenuation: -50 dB minimum
  • Cable: MX400DP: 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
  • Environmental Conditions:Operating Temperature: -18-57 C (0-135 F)Storage Temperature: -29-74 C (-20-165 F)Relative Humidity: 0-95%
  • Power Requirements: 48-52 Vdc phantom, 8.0 mA.
