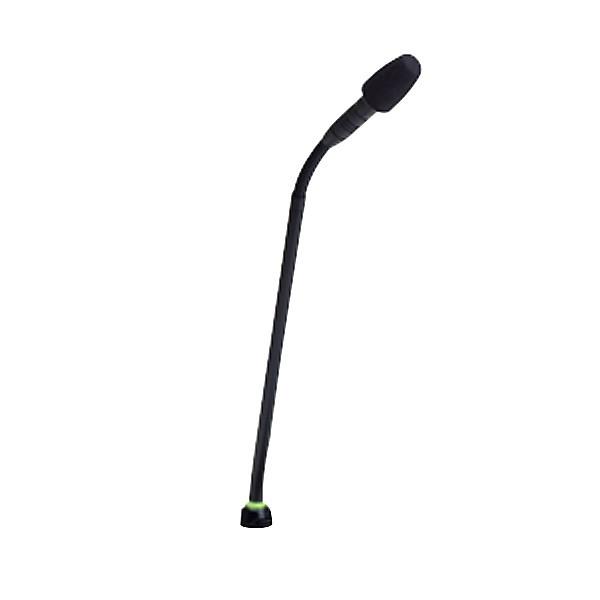

Shure MX410LP/C Gooseneck Microphone Module

Shure MX410LP/C Gooseneck Microphone Module

This item is out of stock


Microflex Modular Gooseneck microphones deliver unsurpassed style, flexibility and performance for conference rooms and similar applications. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, it's easy to get the perfect fit for your conferencing installation. Fully compatible with SLX Wireless Systems when used with MX890 Wireless Desktop Base.

Shure MX410LP/C Features:
  • Low profile, aesthetic design
  • Bi-color status indicator
  • Wide dynamic range and smooth frequency response
  • Programmable mute switch (desktop models only)
  • Logic input/output for remote LED and mute control
  • Surface-mount and wired or wireless desktop base options
  • CommShield Technology for improved Radio Frequency filtering
  • 10 inch (254 mm) gooseneck
  • Includes rubber isolation rings, wing nut, cap, snap-fit foam windscreen

Shure MX410LP/C Specifications:
MX410LP/C Microflex Mini 10" Gooseneck Mic:
  • Type: Condenser (electret bias)
  • Frequency Response: 50—17000 Hz
  • Polar Pattern: Cardioid
  • Output Impedance: EIA Rated at 150 Ohms (170 Ohms actual)
  • Output Configuration: Active balanced
  • Sensitivity (at 1 kHz , open circuit voltage):—35 dBV/Pa (18 mV) 1 Pascal=94 dB SPL: Maximum SPL (1kHz at 1% THD, 1 Kohm load) 121 dB
  • Equivalent Output Noise (A-weighted): 28 dB SPL
  • Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): 66 dB
  • Dynamic Range (1 Kohm load at 1 kHz): 93 dB
  • Common Mode Rejection (10 Hz to 100 kHz): 45dB minimum
  • Preamplifier Output Clipping Level (1% THD): —8 dBV (0.4 V)
  • Polarity: 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
  • Logic Connections: LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kohms).
  • Mute Switch Attenuation: —50 dB minimum
  • Environmental Conditions: Operating Temperature: -18—57 degrees C (0—135 degrees F); Storage Temperature: -29—74 degrees C (-20—165 degrees F); Relative Humidity: 0—95%
  • Power Requirements: 48—52 VDC phantom, 8.0 mA
  • Net Weight: 0.068 lbs (0.054 kg)
