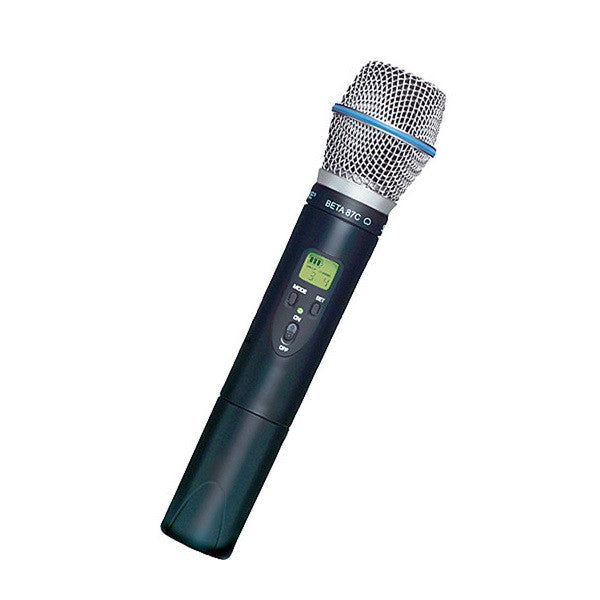

Shure ULX2/BETA87C Wireless Handheld Transmitter Microphone

This Shure Wireless Handheld Transmitter Microphone consists of the Shure ULX2 handheld transmitter fitted with the Beta 87C microphone capsule The ULX2 features a 3-segment battery fuel gauge, backlit LCD shows group and channel, frequency and power settings, control lockout, 8 hour battery life, 300 ft (92 m) operating range.

The Beta 87C offers an extremely smooth, tailored response for a warm, natural sound The cardioid polar pattern compensates for the isolation often associated with the use of personal monitors.

Shure ULX2/BETA87C Features: Beta87C Vocal Microphone Cardioid, Condenser Frequency response: 50 to 20,000 Hz Highly consistent cardioid pattern offers excellent rear rejection ULX2 Handheld Transmitter 8-9 Hour Battery Life Power: On/Off Switch, Battery LED-Green When ON, Red When Battery Low Three-segment Battery Power Icon PEAK Icon-Appears When Audio Signal Overloads Group/Channel Displays SET Button for Saving Settings Adjustable Audio Gain Control Input Attenuation Switch-Select 0dB for Voice/Low Output; 20dB for High Output 4-pin Mini Connector Battery Cover Unscrews to Expose Battery and Gain Control Shure ULX2/BETA87C Specification: Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output Transmitter Gain Adjustment Range: 25 dB Receiver Audio Output Level (±38 kHz deviation, 1 kHz tone) XLR connector (into 600 ohm load): +3.9 dBV (line), ”17 dBV (mic); 1/4 inch connector (into 3000 ohm load): ”2 dBV Modulation: ±38 kHz deviation compressor-expander system with pre- and de-emphasis RF Power Output: 30 mW maximum Dynamic Range: >100 dB, A-weighted RF Sensitivity: 1.26V for 12 dB SINAD (typical) Image Rejection: 80 dB typical Spurious Rejection: 75 dB typical Ultimate Quieting (reference ±38 kHz deviation) >105 dB, A-weighted System Distortion (reference ±38 kHz deviation, 1 kHz modulation): 0.3% total harmonic distortion, typical Power Requirements: 9V alkaline battery; 8.4 V Nicad optional Battery Life: 8 to 9 hours (with 9V Duracell MN1604 alkaline battery) Operating Temperature Range: -20 degrees to 49 degrees C (”4 degrees to 120 degrees F) NOTE: Battery characteristics may limit this range.

Overall Dimensions (Length x Diameter): 8.8 x 2 in (223.5 x 51 mm ) Net Weight: 9.1 oz.

(258 g) without battery Made in China.
