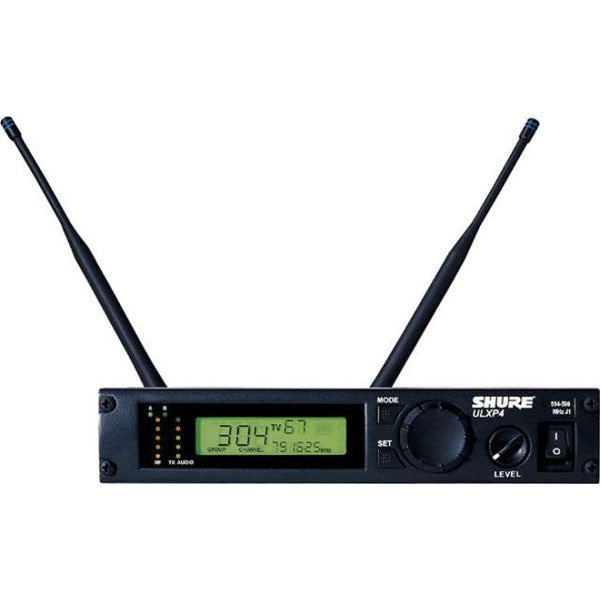

Shure ULXP4 Wireless Receiver

Buy Shure ULXP4 Wireless Receiver online in India - India's music equipment superstore _x005F Shure ULXP4 Wireless Receiver.

_x005F The Shure ULXP4 professional wireless receiver offers an exceptional value in both performance and price, for both working musicians and sound installers The expanded feature set of the ULXP4 receiver - with advanced settings and controls including lockable settings and group scan - offers a direct path to full, clear audio signals.

_x005F Shure ULXP4 Wireless Receiver Features: _x005F Automatic Frequency Selection with group scan function _x005F Over 1400 selectable frequencies _x005F Predictive Diversity _x005F 5-segment transmitted audio signal strength meter _x005F 5-segment RF meter _x005F 3-segment transmitter battery fuel gauge _x005F Advanced multi-function LCD displays group and channel _x005F Mic/Line switch _x005F Remotable 1/2-wave antenna _x005F Frequency and volume lockout _x005F XLR and 1/4-inch output _x005F Rugged metal chassis _x005F 1/2 rack design _x005F Shure ULXP4 Wireless Receiver Specifications: _x005F RF Carrier Frequency Range: 554.000 to 865.000 MHz _x005F Effective Range: 100 m (300 ft.) under optimal conditions (Actual working range depends on RF signal absorption, reflection, and interference) _x005F Audio Frequency Response: 25 to 15,000 Hz, (±2 dB (Overall system frequency response depends on the microphone element) Output Level: Microphone Level = Line Level — 20 dB _x005F Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output _x005F Receiver Audio Output Level (±38 kHz deviation, 1 kHz tone) _x005F XLR connector (into 600 ohm load): +3.9 dBV (line), -17 dBV (mic); 1/4 inch connector (into 3000 ohm load): -2 dBV _x005F Impedance (output): 50 ohms at line level; 2000 ohms at mic level _x005F Modulation: ±38 kHz deviation compressor-expander system with pre- and de-emphasis.

_x005F Dynamic Range: >100 dB, A-weighted _x005F RF Sensitivity: 1.26µV for 12 dB SINAD (typical) _x005F Image Rejection: 80 dB typical _x005F Spurious Rejection: 75 dB typical _x005F Ultimate Quieting (reference ±38 kHz deviation) _x005F >105 dB, A-weighted _x005F System Distortion (reference ±38 kHz deviation, 1 kHz modulation): 0.3% total harmonic distortion, typical _x005F Power Requirements: - 18 Vdc (negative ground), 550 mA _x005F Battery Life: 8 to 9 hours (with 9V Duracell MN1604 alkaline battery) _x005F Operating Temperature Range: -20 degrees to 49 degrees C (-4 degrees to 120 degrees F) _x005F Overall Dimensions: 1.72 in.

x 8.56 in x 6.52 in.

(43 x 214 x 163 mm) _x005F Made in China.
